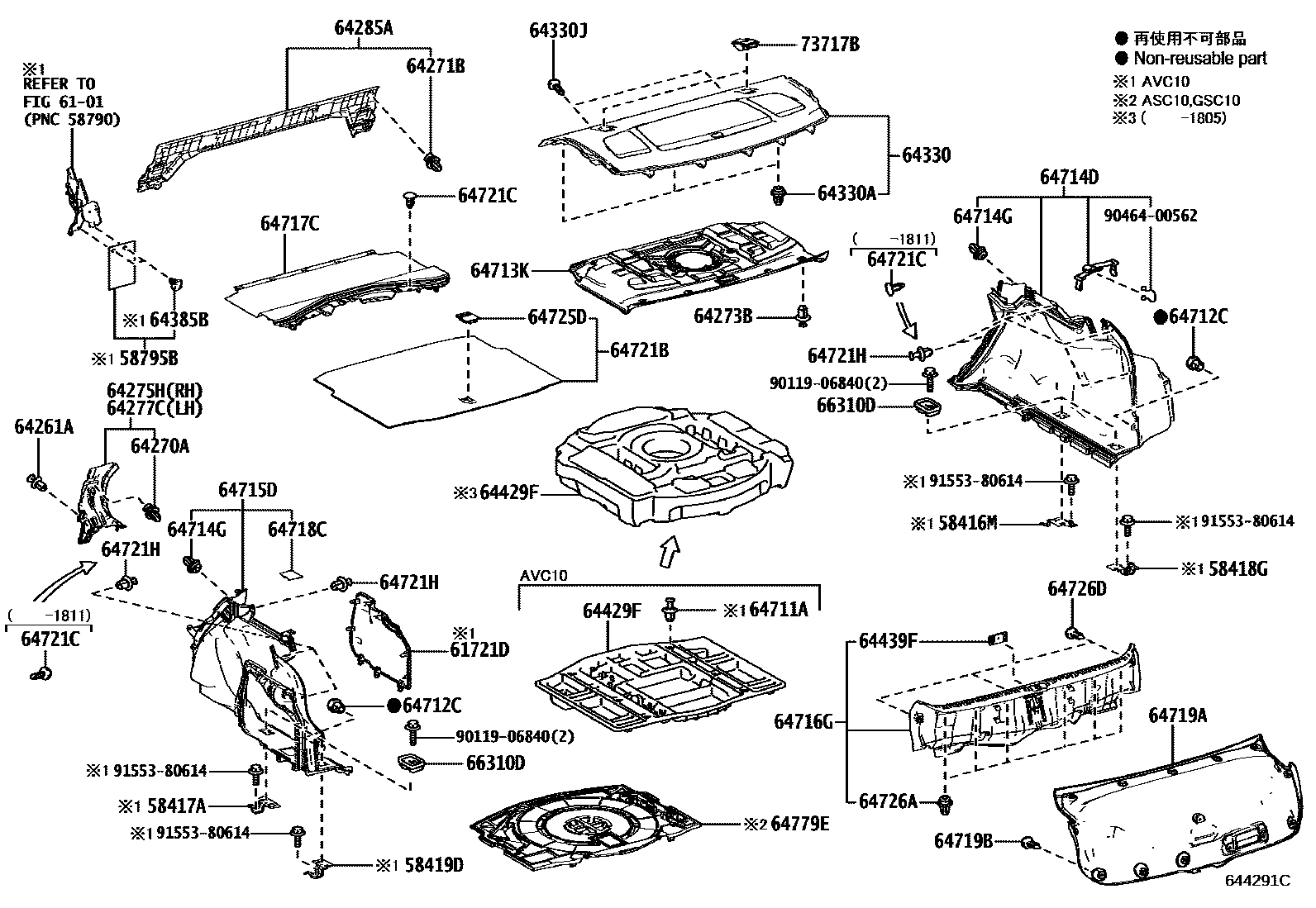

PACKAGE TRAY PANEL & LUGGAGE COMPARTMENT MAT
58416MBRACKET, DECK BOARD, NO.1 RH
58417ABRACKET, DECK BOARD, NO.1 LH
58418GBRACKET, DECK BOARD, NO.2
58419DBRACKET, DECK BOARD, NO.3
58795BCLAMP, JACK
6101
61721DCOVER, BATTERY SERVICE HOLE, LH
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
64261ACLIP(FOR ROOM PARTITION GARNISH)
64270ACLIP(FOR ROOM PARTITION BOARD SETTING)
64271BCLIP(FOR ROOM PARTITION BOARD)
64273BCLIP
64275HCOVER, ROOM PARTITION, NO.1
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
64277CCOVER, ROOM PARTITION, NO.2
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
64285ACOVER, ROOM PARTITION, NO.3
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
64330PANEL ASSY, PACKAGE TRAY TRIM
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
64330ACLIP(FOR PACKAGE TRAY TRIM PANEL)
64330JCLIP(FOR PACKAGE TRAY TRIM PANEL)
64385BCLIP
64429FBOX, LUGGAGE COMPARTMENT TRIM
64439FCOVER, LUGGAGE ROOM, REAR
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
64711ACLIP(FOR LUGGAGE COMPARTMENT FLOOR MAT)
64712CCLIP(FOR LUGGAGE COMPARTMENT TRIM COVER)
64713KCOVER, LUGGAGE COMPARTMENT TRIM, FRONT UPPER
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
64714DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, RH
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
64714GCLIP(FOR LUGGAGE COMPARTMENT TRIM SIDE COVER)
64715DCOVER, LUGGAGE COMPARTMENT TRIM, SIDE, LH
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
64716GCOVER, LUGGAGE COMPARTMENT TRIM, REAR
64717CCOVER, LUGGAGE COMPARTMENT TRIM, FRONT
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
64718CCOVER, LUGGAGE TRIM SERVICE HOLE
BLACK,TRIM0#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
64719ACOVER, LUGGAGE COMPARTMENT DOOR
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
64719BCLIP(FOR LUGGAGE COMPARTMENT DOOR)
64721BCOVER, LUGGAGE COMPARTMENT TRIM, NO.1
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
64721CCLIP(LUGGAGE COMPARTMENT)
64721HCLIP(LUGGAGE COMPARTMENT)
64725DHOOK, LUGGAGE COMPARTMENT TRIM, NO.1
64726ACLIP, LUGGAGE TRIM, REAR
64726DCLIP, LUGGAGE TRIM, REAR
64779ETRAY, SPARE WHEEL COVER
BLACK,TRIM1#,2#,3#,4#,5#
BLACK,TRIM0#,2#,3#,4#,5#
66310DHOOK ASSY, ROPE
73717BCOVER, CHILD RESTRAINT SEAT TETHER ANCHOR
9011906840
9046400562
9155380614
43 parts on this diagram · 1 diagram in section
