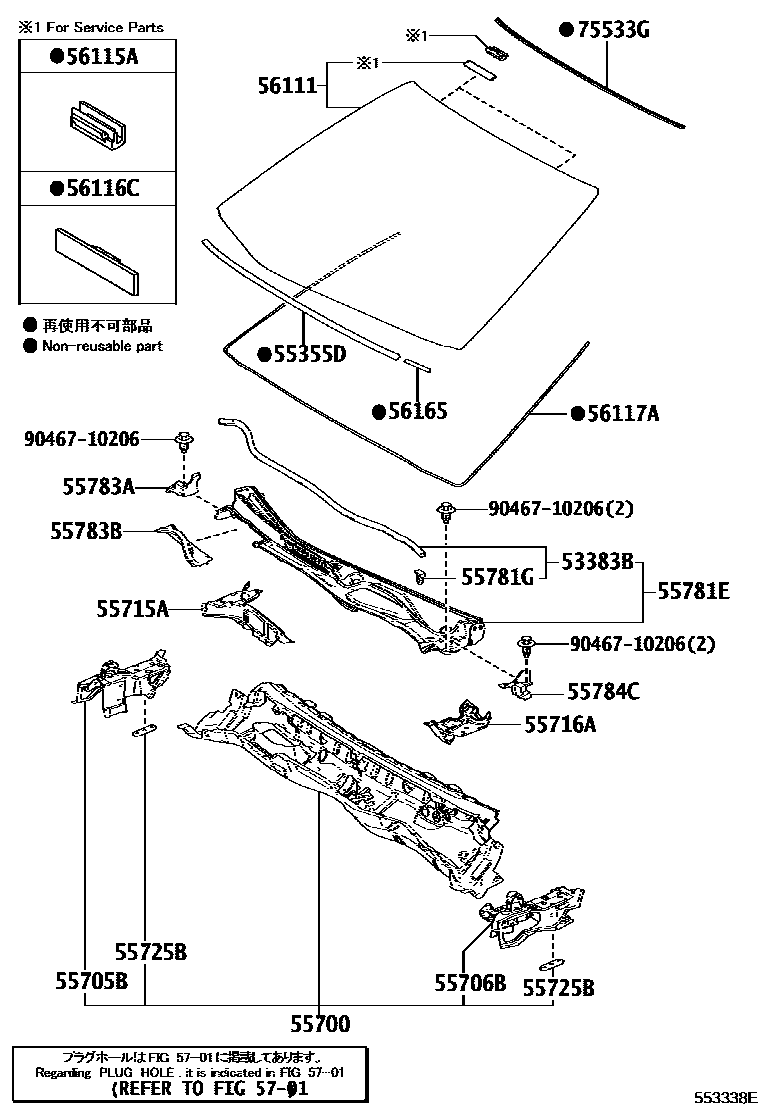

COWL PANEL & WINDSHIELD GLASS
53383BSEAL, HOOD TO COWL TOP
55355DCUSHION, INSTRUMENT PANEL, NO.1
55705BPANEL SUB-ASSY, COWL TOP SIDE, RH
55706BPANEL SUB-ASSY, COWL TOP SIDE, LH
55715ABRACE, COWL TOP TO APRON, RH
55716ABRACE, COWL TOP TO APRON, LH
55725BREINFORCEMENT, HOOD HINGE MOUNTING
55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR
WITHOUT(COLD AREA SPEC)
COLD AREA SPEC
WITH(PTC HEATER)
55781GCLIP, COWL TOP VENTILATOR LOUVER
55783APAD, COWL TOP SILENCER
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55784CPAD, COWL TOP SILENCER, LH
56111GLASS, WINDSHIELD
WITHOUT(COLD AREA SPEC)
COLD AREA SPEC
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2762,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)
*D,L=2762,PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&WINDSHIELD WIPER CONTROL-AUTO(RAINSENSOR)
*D,L=2762,WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=2762
*D,L=2762,COLD AREA SPEC
*D,L=2762,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)
*D,L=2762,COLD AREA SPEC&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=2762,COLD AREA SPEC&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=2762,WITHOUT(COLD AREA SPEC)
*D,L=2762,WITHOUT(COLD AREA SPEC)&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)
*D,L=2762,WITHOUT(COLD AREA SPEC)&PRE-COLLISION SYSTEM-WITH(*PBA & *PB)&WINDSHIELDWIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=2762,WITHOUT(COLD AREA SPEC)&WINDSHIELD WIPER CONTROL-AUTO(RAIN SENSOR)
*D,L=2762,"F SPORT"&WINDSHIELD DEICER-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTUREALERT)
*D,L=2762,"F SPORT"&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
*D,L=2762,"VERSION L"&WINDSHIELD DEICER-WITH&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
*D,L=2762,"VERSION L"&LANE KEEPING SYSTEM-WITH(LANE DEPARTURE ALERT)
*D,L=2762,WINDSHIELD DEICER-WITH
*D,L=2762,"F SPORT"&COLD AREA SPEC&LANE KEEPING SYSTEM-WITH
*D,L=2762,"F SPORT"&WINDSHIELD DEICER-WITH&LANE KEEPING SYSTEM-WITH
*D,L=2762,"F SPORT"&LANE KEEPING SYSTEM-WITH
*D,L=2762,"VERSION L"&COLD AREA SPEC&LANE KEEPING SYSTEM-WITH
*D,L=2762,"VERSION L"&WINDSHIELD DEICER-WITH&LANE KEEPING SYSTEM-WITH
*D,L=2762,"VERSION L"&LANE KEEPING SYSTEM-WITH
56165COVER, FRONT WINDOW INNER MOULDING, LH
5701HOLE PLUG
75533GMOULDING, WINDSHIELD, OUTSIDE
9046710206
main90467-10206
21 parts on this diagram · 2 diagrams in section
