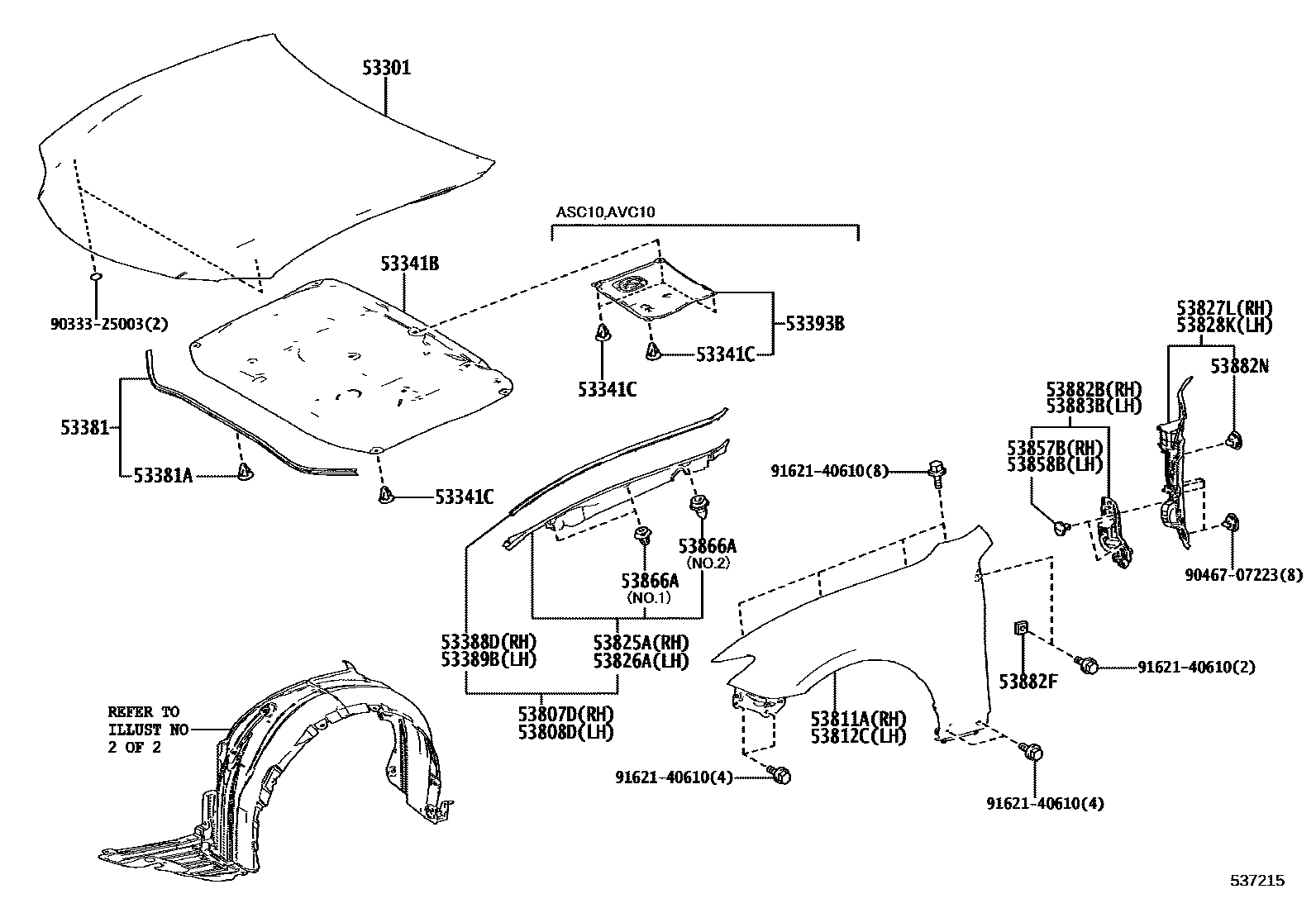

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-24060iASC10,AVC10,GSC10201510-201810

53341BINSULATOR, HOOD

main53341-24100iGSC10201409-201510

sub53341-24090

main53341-24130iASC10,AVC10201810-202008

main53341-24140iGSC10201510-201711

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050×10iGSC10201510-201711

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-24050iGSC10201409-201510

sub53381-24051

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011×10iGSC10201409-201510

53388DSEAL, HOOD TO FRONT FENDER, RH

main53388-24030iGSC10201409-201510

53389BSEAL, HOOD TO FRONT FENDER, LH

main53389-24030iGSC10201409-201510

53393BPROTECTOR, HOOD, FRONT

main53393-24010iASC10..RHD201510-201804

53807DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP RH

main53807-24010iGSC10201409-201510

53808DREINFORCEMENT SUB-ASSY, FRONT FENDER, TOP LH

main53808-24010iGSC10201510-201711

53811APANEL, FRONT FENDER, RH

main53811-24190supersedes 53811-24180iASC10,AVC10,GSC10201510-201810

"F SPORT"

53812CPANEL, FRONT FENDER, LH

main53812-24190supersedes 53812-24180iASC10,AVC10201810-202008

"F SPORT"

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-24020iGSC10201409-201510

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-24010iGSC10201409-201510

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-24010iGSC10201409-201510

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-24010iGSC10201409-201510

53857BRETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011×2iGSC10201409-201510

53858BRETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011×2iASC10..RHD201510-201804

53866ACLIP(FOR FRONT FENDER TO COWL SIDE SEAL)

main90467-10162×4iGSC10201510-201711

NO.1

main90467-10204×2iAVC10;ASC10..LHD201510-201810

NO.2

53882BSEAL, FRONT FENDER, RH

main53882-24030iGSC10201409-201510

53882FSEAL, FRONT FENDER

main53882-33060iGSC10201409-201510

53882NCLIP(FOR FRONT FENDER SEAL)

main90467-06205-C0×2iGSC10201409-201510

BLACK

main90467-07223×2iGSC10201710-201711

53883BSEAL, FRONT FENDER, LH

main53883-24010iGSC10201409-201510

9033325003

main90333-25003

9046707223

main90467-07223

9162140610

main91621-40610

26 parts on this diagram · 2 diagrams in section
