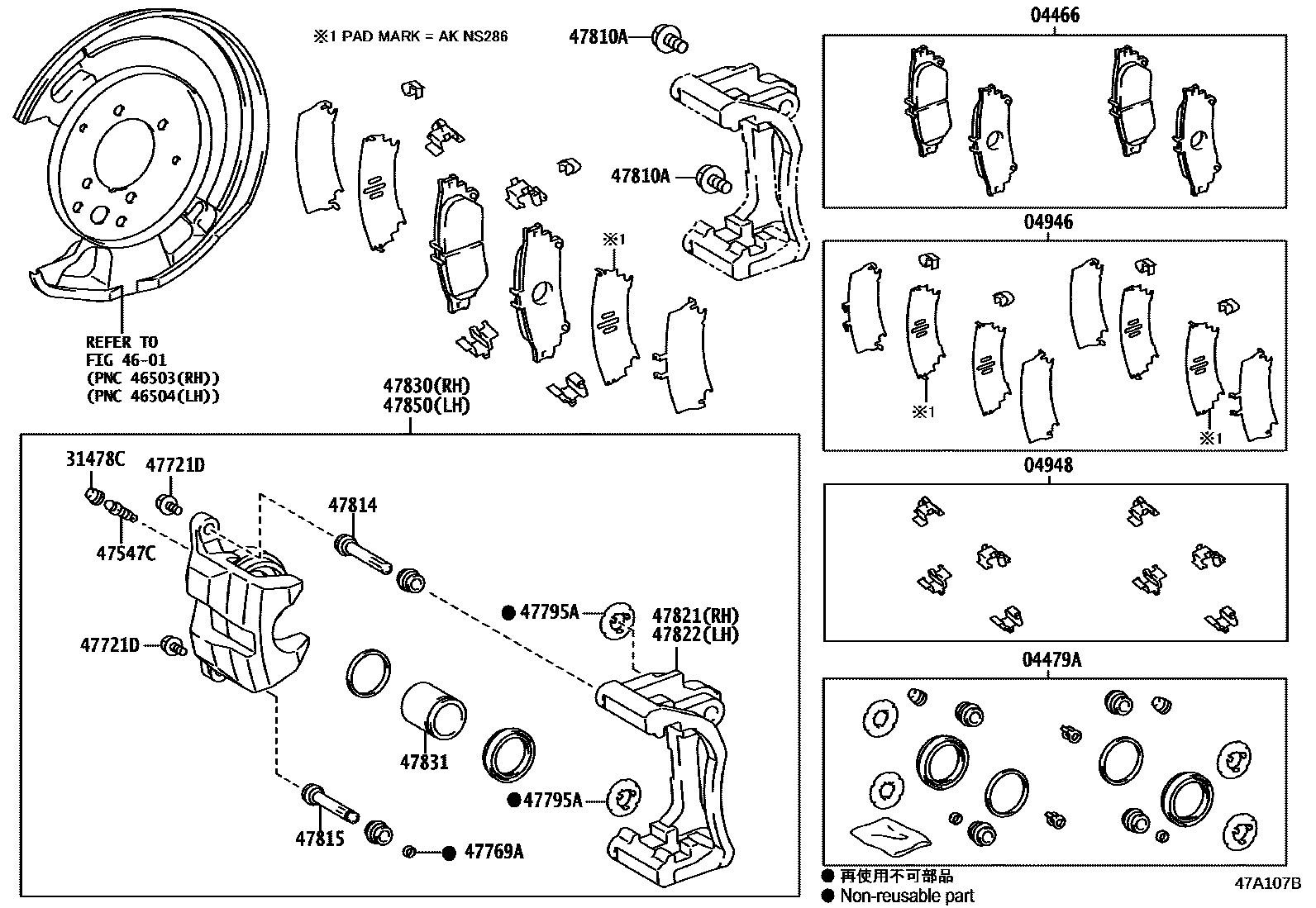

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK AK NS286
MARK AK NS542,RUSSIA SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
sub04466-30312
MARK AK NS542,CANARY ISLANDS SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
sub04466-30312
MARK AK NS542,ISRAEL SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
sub04466-30312
MARK AK NS542,AZERBAIJAN,ARMENIA,GEORGIA SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
sub04466-30312
MARK AK NS542,SERBIA SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
sub04466-30312
MARK AK NS542,BOSNIA HERCEGOVINA SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
sub04466-30312
MARK AK NS542,UKRAINE SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
sub04466-30312
MARK AK NS542,KAZAKHSTAN SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE PAINTED)
sub04466-30312
MARK AK NS542,CANARY ISLANDS SPEC
MARK AK NS542
MARK AK NS542,CANARY ISLAND SPEC
MARK AK NS542,CANARY ISLAND SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE & HIGH FRICTION)
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
REFER TO ILLUST.
CANARY ISLAND SPEC
CANARY ISLAND SPEC&FRONT WHEEL BRAKE-18INCHES DISC(ORANGE & HIGH FRICTION)
04948FITTING KIT, DISC BRAKE, REAR
31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)
4601
47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)
47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)
*8-1.00PX23-15
47769ABUSH, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47795APLATE, REAR DISC BRAKE CALIPER, NO.1
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47814PIN, CYLINDER SLIDE, NO.1(FOR REAR DISC BRAKE)
47815PIN, REAR CYLINDER SLIDE, NO.2(FOR REAR DISC BRAKE)
47821MOUNTING, REAR DISC BRAKE CYLINDER, RH
CANARY ISLAND SPEC
47822MOUNTING, REAR DISC BRAKE CYLINDER, LH
CANARY ISLAND SPEC
47830CYLINDER ASSY, DISC BRAKE, REAR RH
CANARY ISLAND SPEC
47831PISTON, REAR DISC BRAKE
47850CYLINDER ASSY, DISC BRAKE, REAR LH
CANARY ISLAND SPEC
18 parts on this diagram · 1 diagram in section
