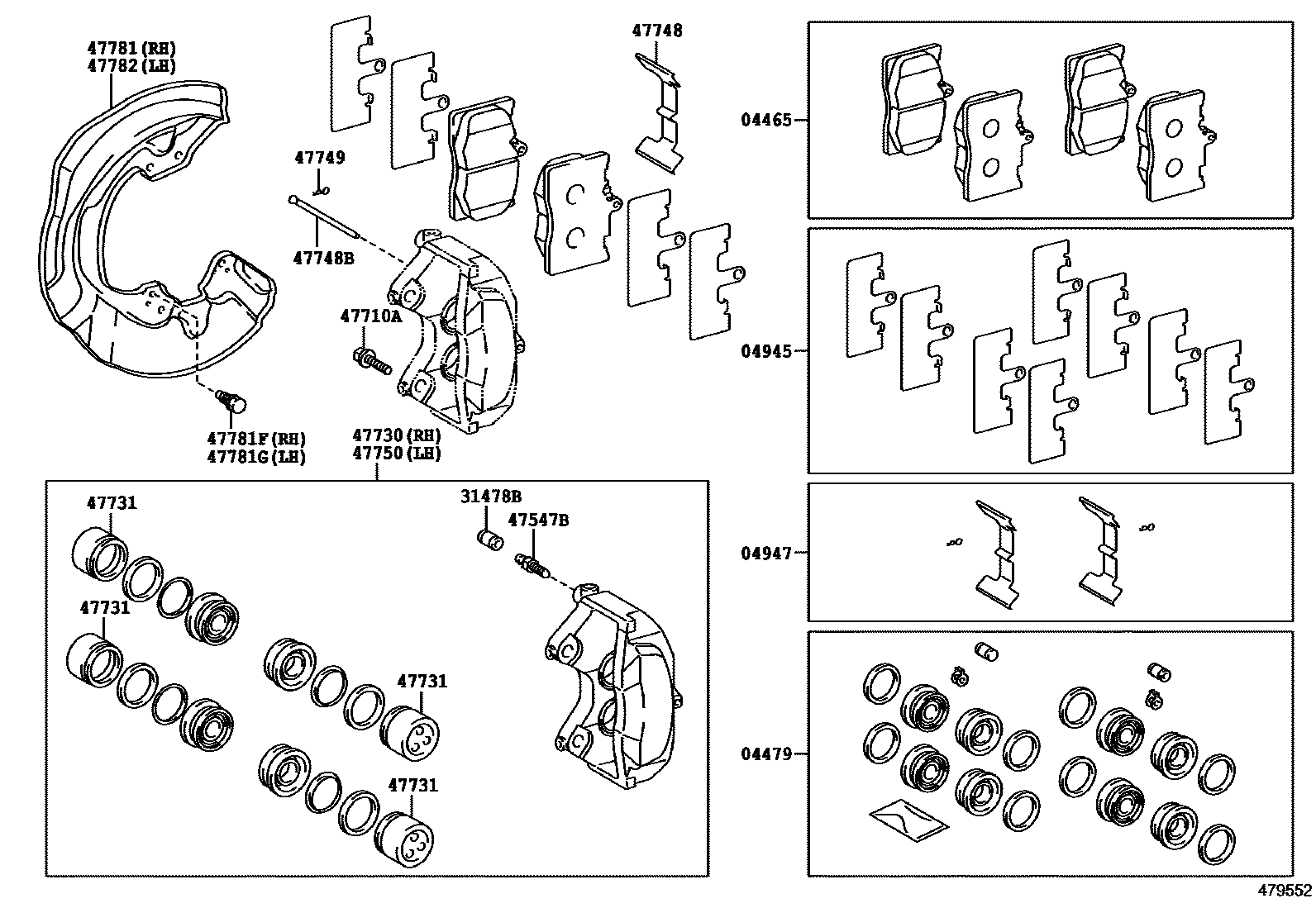

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1 0002 118INCHES DISC

04465PAD KIT, DISC BRAKE, FRONT

main04465-30491iASC10201510-201805

MARK TEXTAR T4146

main04465-30500iGSC10201409-202008

MARK TEXTAR T4146

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-22040iGSC10201409-202008

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-30340iASC10..RHD201510-201805

main04945-30350iGSC10201409-202008

04947FITTING KIT, DISC BRAKE, FRONT

main04947-22070iGSC10201409-202008

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-14010iGSC10201409-202008

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-50010iGSC10201409-202008

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main90119-12415iGSC10201409-202008

*12-1.25PX45-30

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-22460iGSC10201409-202008

main47730-30560iASC10..RHD201510-201805

47731PISTON, FRONT DISC BRAKE

main47731-30560iASC10..RHD201510-201805

main47731-50070iGSC10201409-202008

47748SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)

main47748-22460iGSC10201409-202008

47748BPIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE)

main47735-50020iGSC10201409-202008

47749CLIP, PIN HOLD

main47749-50030iGSC10201409-202008

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-22460iAVC10201409-202008

main47750-30560iASC10..LHD201510-201805

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-30260iASC10,AVC10201409-202008

main47781-30270iASC10201510-201805

47781FBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM RH)

main90119-06508iASC10,AVC10201409-202008

47781GBOLT(FOR DUST COVER TO STEERING KNUCKLE ARM LH)

main90119-06508iGSC10201409-202008

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-30260iASC10201409-202008

main47782-30270iASC10201510-201805

17 parts on this diagram · 2 diagrams in section
