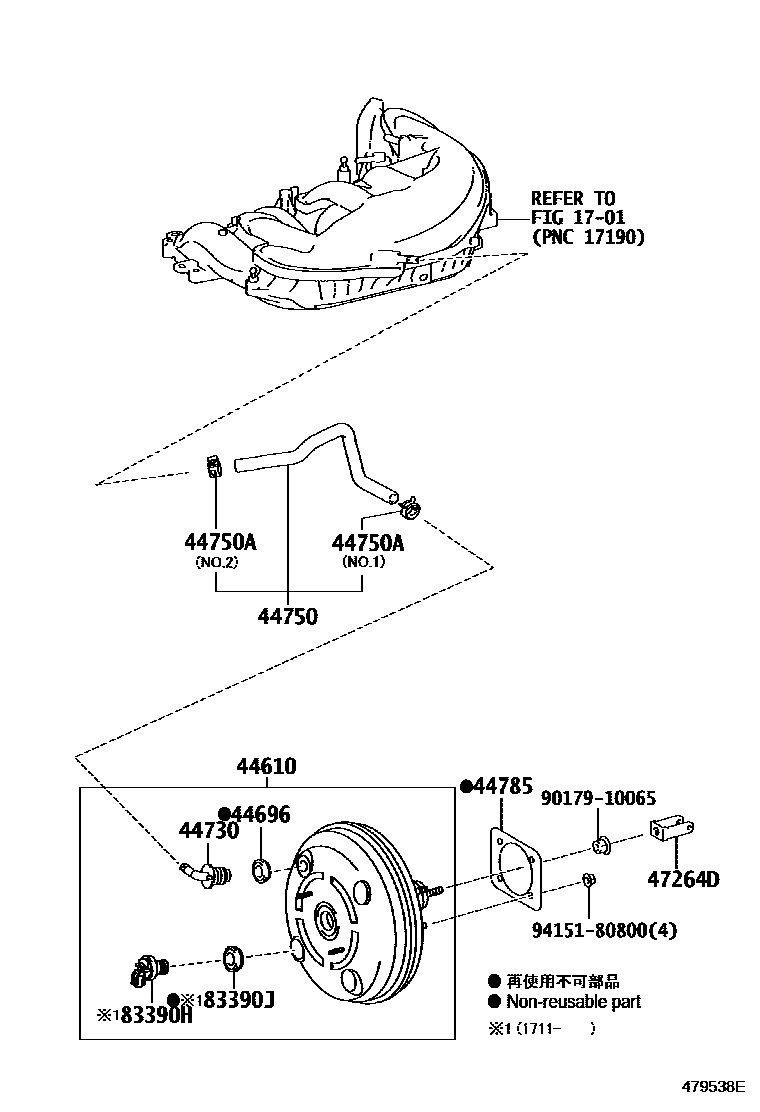

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1701

44610BOOSTER ASSY, BRAKE

main44610-24200iGSC10201409-201410

main44610-24210iGSC10201410-201711

main44610-24220iASC10..RHD201510-201804

main44610-24240iASC10..LHD201510-201805

main44610-53470iASC10201805-202008

44696GROMMET, CHECK VALVE

main90480-24439iGSC10201409-202008

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-12070iASC10..LHD201510-202008

main44730-20170iGSC10201409-201711

main44730-22150iASC10..RHD201510-201804

44750HOSE ASSY, VACUUM

main44750-53140iGSC10201409-201711

main44750-53210iASC10..RHD201510-201804

main44750-53220iASC10..LHD201510-202008

44750ACLIP(FOR VACUUM HOSE ASSY)

main90467-16014iASC10..LHD201510-202008

main90467-16014iGSC10201409-201711

NO.2:REFER ILLUST.

main96133-41500iGSC10201409-201711

NO.1:REFER ILLUST.

44785GASKET, BRAKE BOOSTER

main44785-47010iASC10..RHD201409-202008

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iASC10201409-202008

83390HSWITCH ASSY, VACUUM WARNING

main83390-28120iASC10201805-202008

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iASC10201805-202008

9017910065

main90179-10065

9415180800

main94151-80800

12 parts on this diagram · 3 diagrams in section
