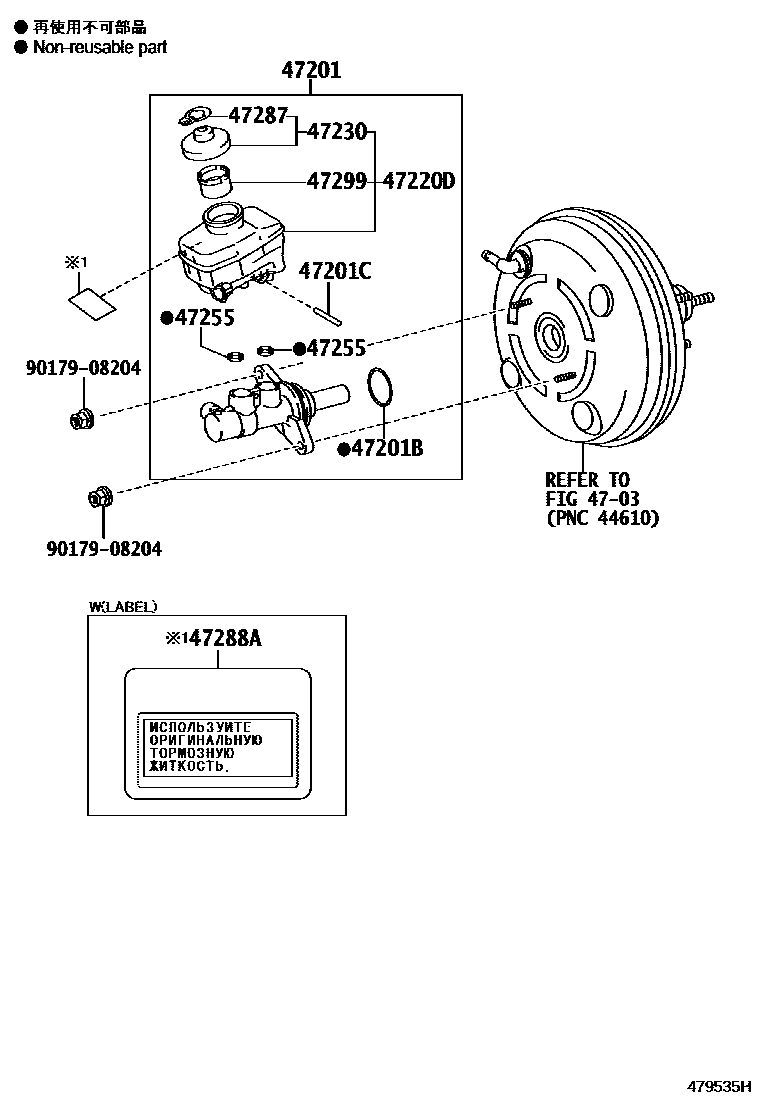

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

4703

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-30822iGSC10201409-201711

main47201-30830iAVC10..RHD¥20,300201510-202008

main47201-30840iAVC10..LHD201510-202008

main47201-30870iASC10201711-202008

main47201-30880iASC10..RHD¥22,400201711-201804

main47201-53290iASC10..LHD201510-201711

main47201-53300iASC10..RHD¥26,900201510-201711

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iASC10¥200201409-202008

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAVC10;ASC10..LHD¥130201409-202008

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-30210iASC10..RHD¥6,000201510-201804

main47220-30220iASC10201409-202008

main47220-30230iAVC10..RHD¥6,000201510-202008

main47220-30240iAVC10..LHD201510-202008

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140iGSC10¥530201409-202008

47255GROMMET, MASTER CYLINDER RESERVOIR

main90029-48001iGSC10¥360201409-202008

sub90016-AT001¥360

47287LABEL, BRAKE FLUID INFORMATION

main47287-02360iASC10..LHD¥480201711-201805

main47287-20010iGSC10¥130201409-202008

47288ALABEL, BRAKE FLUID NOTICE

main47288-30010iASC10¥110201805-201810

BOSNIA HERCEGOVINA SPEC

main47288-30010iASC10¥110201805-201810

UKRAINE SPEC

main47288-30010iASC10¥110201609-201810

AZERBAIJAN,ARMENIA,GEORGIA SPEC

main47288-30010iASC10¥110201805-202008

SERBIA SPEC

main47288-30010iASC10¥110201810-202008

BOSNIA-HERZEGOVINA SPEC

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGSC10¥140201409-202008

main47299-30190iAVC10¥470201510-202008

9017908204

main90179-08204¥140

11 parts on this diagram · 4 diagrams in section
