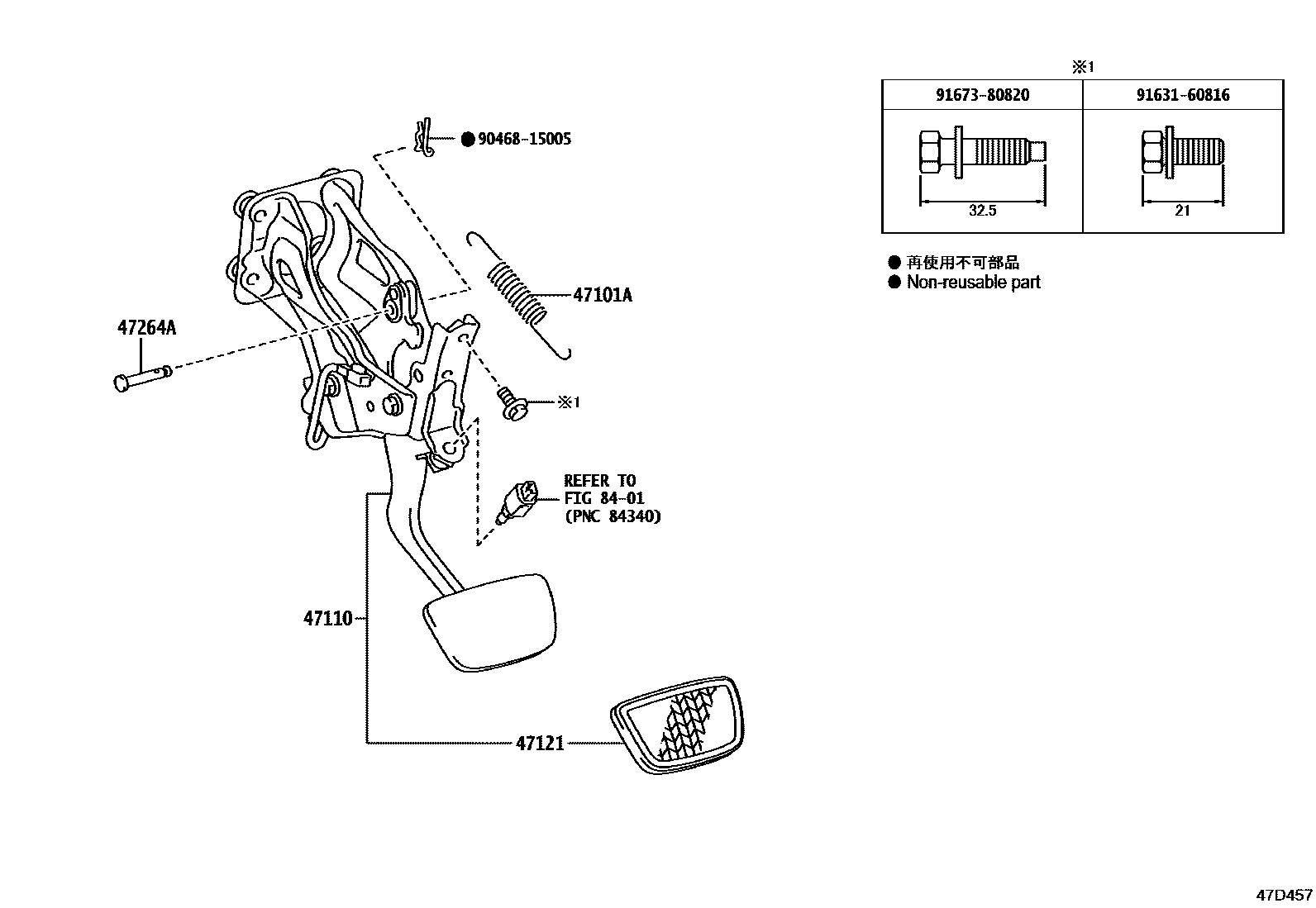

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1 0004 1

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-12045iAVC10201510-202008

main90507-13011iGSC10201409-202008

47110SUPPORT ASSY, BRAKE PEDAL

main47110-24100iASC10..RHD201510-201804

main47110-24120iAVC10..RHD201510-202008

sub47110-24330

main47110-24140iASC10201409-202008

sub47110-24250

main47110-30500iAVC10..LHD201510-202008

sub47110-24310

47121PAD, BRAKE PEDAL

main47121-30080iGSC10201409-202008

47264APIN(FOR PUSH ROD)

main90249-06180iGSC10201409-202008

main90249-10199iAVC10201510-202008

8401

9046815005

main90468-15005

9163160816

main91631-60816

9167380820

main91673-80820

8 parts on this diagram · 4 diagrams in section
