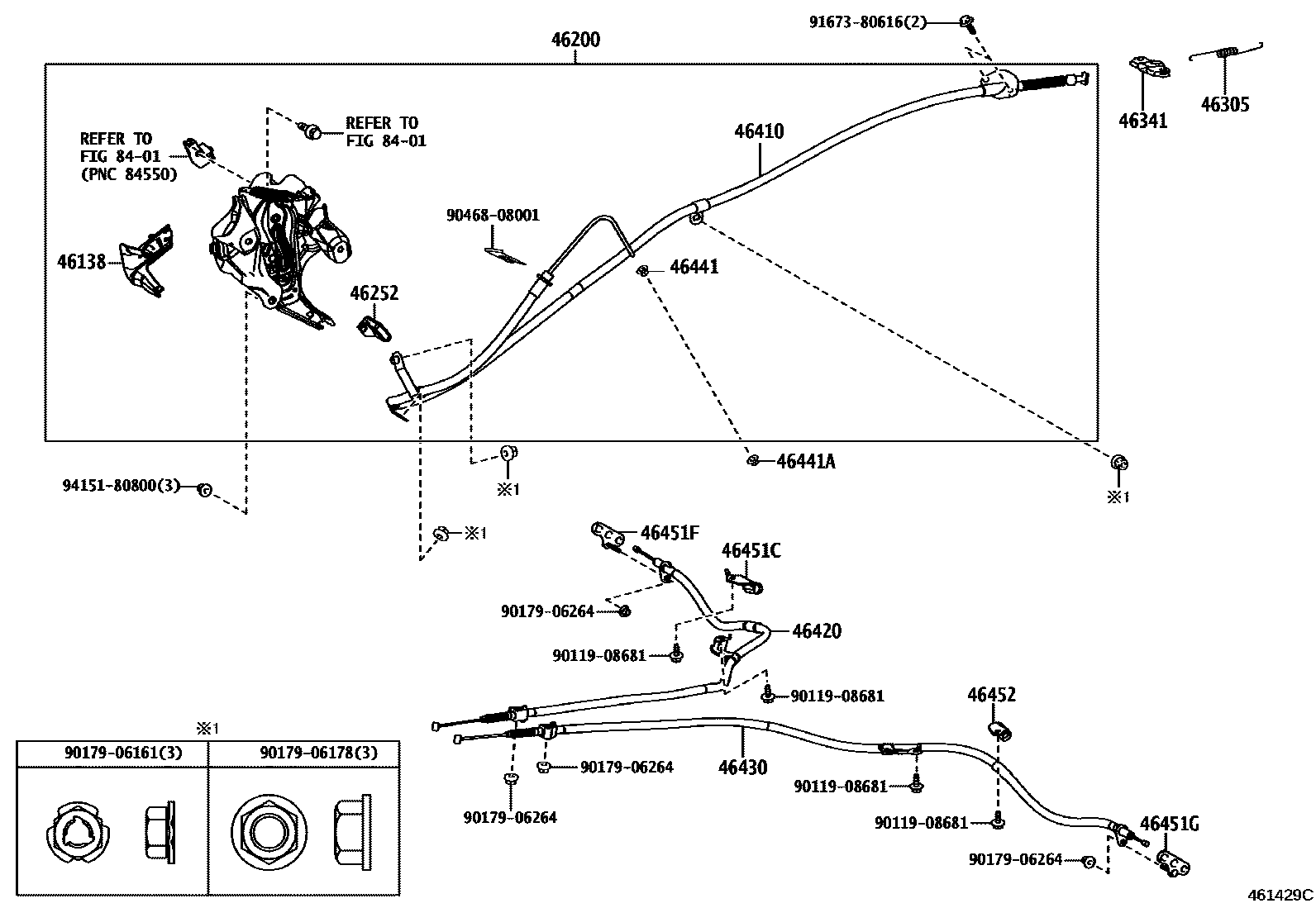

PARKING BRAKE & CABLE

0001 1CABLE 0002 1CABLE 0003 1BRAKE SHOE & LEVER

46138PROTECTOR, PARKING BRAKE PEDAL BRACKET

main46138-53010iASC10,AVC10..LHD201409-202008

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-53010iASC10..RHD201510-202008

main46200-53060iASC10,AVC10..LHD201409-202008

46252PAD, PARKING PEDAL

main46252-47010iGSC10201409-202008

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-53010iGSC10201409-202008

46341EQUALIZER, PARKING BRAKE

main46341-22060iGSC10201409-202008

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-53030iASC10..RHD201510-202008

main46410-53040iASC10,AVC10..LHD201409-202008

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-24100iGSC10201409-202008

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-24100iGSC10201409-202008

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iGSC10201409-202008

46441ANUT, WIRE ADJUSTING, NO.2

main90179-06299iGSC10201409-202008

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30220iGSC10201409-202008

46451FBRACKET, CABLE SUPPORT

main46451-30270iGSC10201409-202008

46451GBRACKET, CABLE SUPPORT

main46451-30280iGSC10201409-202008

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30230iGSC10201409-202008

8401

9011908681

main90119-08681

9017906161

main90179-06161

9017906178

main90179-06178

9017906264

main90179-06264

9046808001

main90468-08001

9167380616

main91673-80616

9415180800

main94151-80800

22 parts on this diagram · 3 diagrams in section
