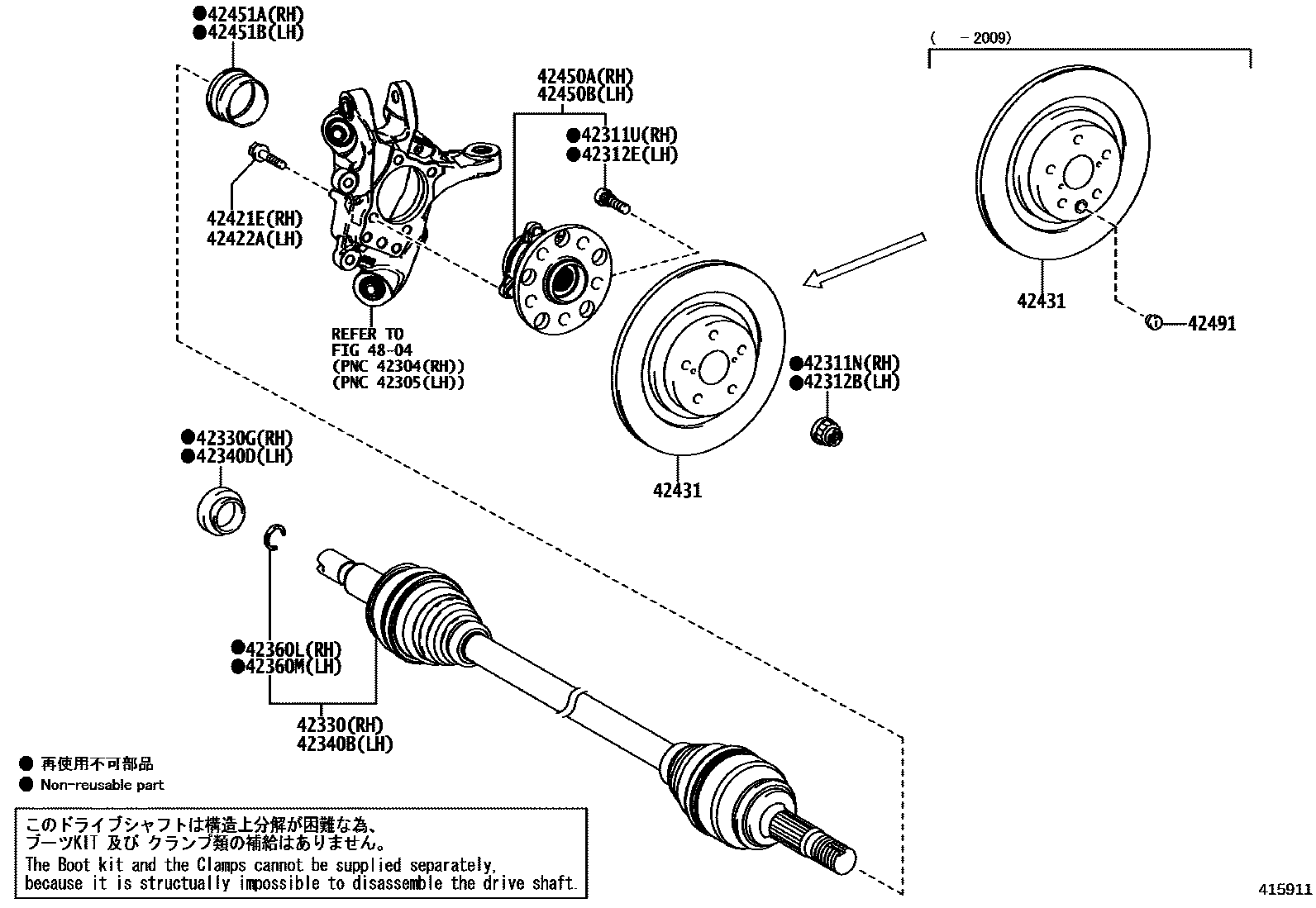

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iASC10,AVC10201810-202008

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02049×5iASC10..RHD201510-201804

main90942-02070×5iGSC10201409-201504

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iASC10,AVC10201810-202008

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02049×5iGSC10201505-201510

main90942-02070×5iGSC10201409-201504

42330SHAFT ASSY, REAR DRIVE, RH

main42330-30170iASC10,AVC10201810-202008

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-47018iASC10,AVC10201810-202008

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-30170iGSC10201409-201510

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-47019iASC10,AVC10201810-202008

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iGSC10201409-201510

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iGSC10201409-201510

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90110-12009×4iGSC10201510-201711

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90110-12009×4iGSC10201409-201510

42431DISC, REAR

main42431-30310×2supersedes 42431-30320iGSC10201409-201510

main42431-30320×2iAVC10;ASC10..RHD201510-201810

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30040iGSC10201409-201504

main42410-30041iGSC10201510-201711

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30040iGSC10201409-201504

main42410-30041iASC10,AVC10201810-202008

42451ADEFLECTOR, REAR WHEEL BEARING DUST, NO.1 RH

main42451-30040iGSC10201409-201510

42451BDEFLECTOR, REAR WHEEL BEARING DUST, NO.1 LH

main42451-30040iASC10..RHD201510-201804

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010×2iASC10,AVC10201810-202008

4804

19 parts on this diagram · 1 diagram in section
