OIL COOLER & TUBE (ATM)

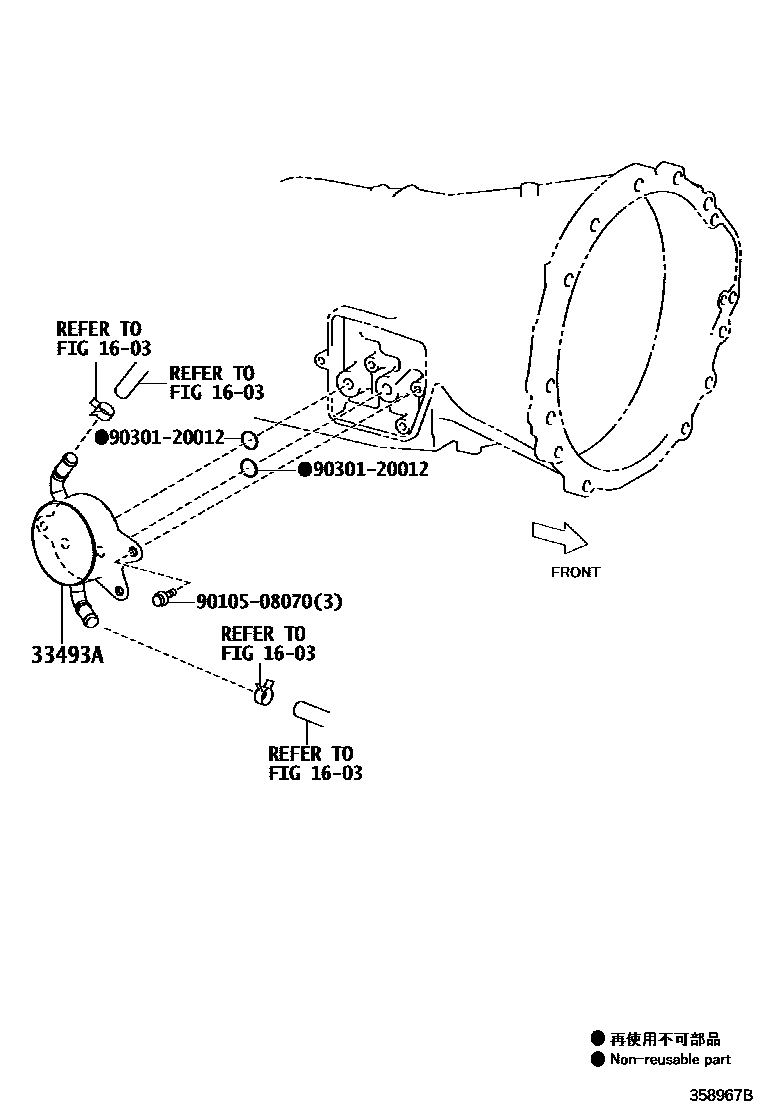

Parts diagram

1603

33493ACOOLER, TRANSMISSION OIL(ATF WARMER)

main33493-30040i201409-201711

main33493-30050i201510-202008

9010508070

main90105-08070

9030120012

main90301-20012

4 parts on this diagram · 1 diagram in section
