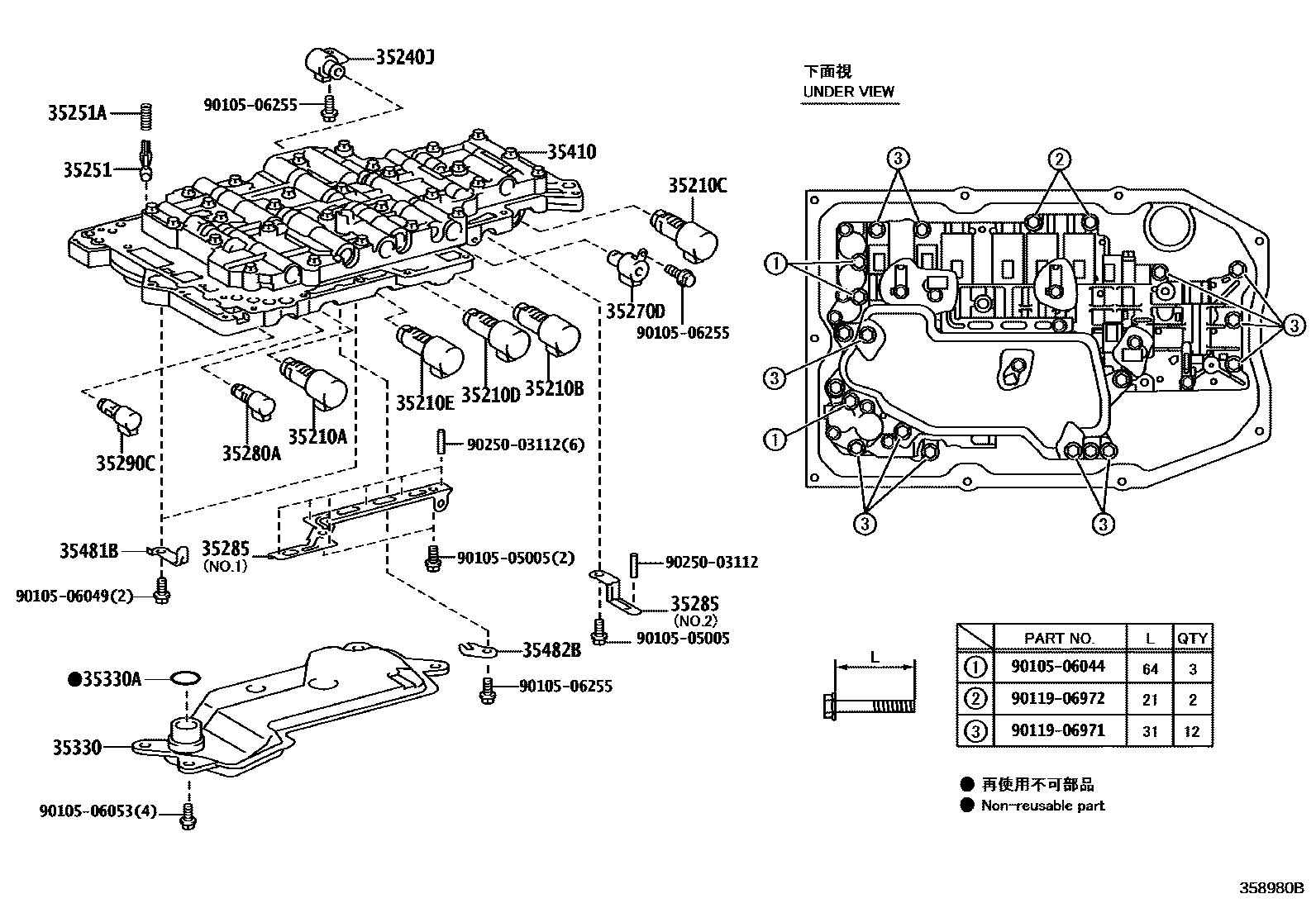

VALVE BODY & OIL STRAINER (ATM)

0001 1AA81E 0002 1AA81E 0003 1AA81E 0004 1AA81E

35210AVALVE, SOLENOID(SL1)

main35210-50040iGSC10201409-201711

main35210-71010iASC10..RHD201510-202008

35210BVALVE, SOLENOID(SL3)

main35210-50040iGSC10201409-201711

main35210-71010iASC10..RHD201510-202008

35210CVALVE, SOLENOID(SL2)

main35210-50070iGSC10201409-201711

main35210-71010iASC10..RHD201510-202008

35210DVALVE, SOLENOID(SL4)

main35210-50050iGSC10201409-201711

main35210-71010iASC10201510-202008

35210EVALVE, SOLENOID(SL5)

main35210-50060iGSC10201409-201711

main35210-71010iASC10..RHD201510-202008

35240JVALVE, SOLENOID(SR)

main35240-50090iGSC10201409-201711

35251BODY, CHECK BALL

main35251-30020iGSC10201409-201711

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iGSC10201409-201711

35270DVALVE, SOLENOID(SL)

main35270-50020iGSC10201409-201711

35280AVALVE, SOLENOID(SLU)

main35280-50030iGSC10201409-201711

main35280-71010iASC10201510-202008

sub35280-71020

35285PLATE, SOLENOID LOCK

main35285-50040iGSC10201409-201711

NO.1:REFER ILLUST.

main35285-50050iGSC10201409-201711

NO.2:REFER ILLUST.

main35285-53010iASC10..RHD201510-202008

35290CVALVE, SOLENOID(SLT)

main35290-50020iGSC10201409-201711

main35290-71020iASC10201510-202008

35330STRAINER ASSY, VALVE BODY OIL

main35330-50030iGSC10201409-201711

main35330-53020iASC10..RHD201510-202008

35330ARING, O (FOR OIL STRAINER)

main90301-31014iGSC10201409-202008

35410BODY ASSY, TRANSMISSION VALVE

main35410-30A70iGSC10201409-201711

main35410-53071iASC10..RHD201510-201805

main35410-53081iASC10201805-202008

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-50050iGSC10201409-202008

35482BCLAMP, TEMPERATURE SENSOR

main35482-50020iGSC10201409-202008

9010505005

main90105-05005

9010506044

main90105-06044

9010506049

main90105-06049

9010506053

main90105-06053

9010506255

main90105-06255

9011906971

main90119-06971

9011906972

main90119-06972

9025003112

main90250-03112

25 parts on this diagram · 4 diagrams in section
