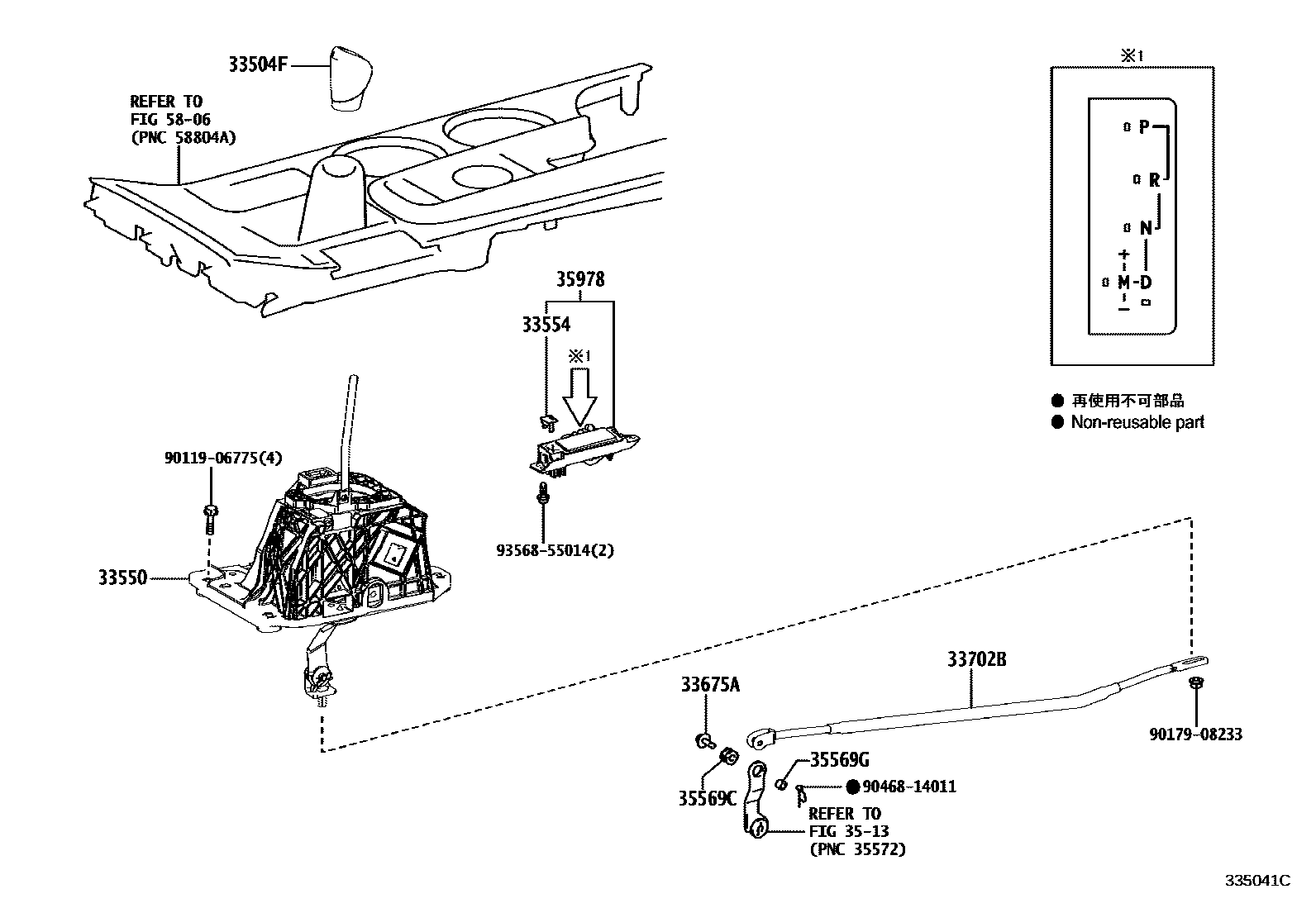

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1 0004 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-53110-C1iGSC10201409-201609

BLACK,TRIM1#,2#,4#,5#

main33504-53130-C0iASC10,AVC10,GSC10201609-201810

BLACK,TRIM1#,2#,4#,5#

main33504-53130-C0iASC10,AVC10201810-202008

BLACK,TRIM2#,3#,4#,5#

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-53270iASC10..RHD201510-201804

main33550-53280iAVC10..RHD201510-202008

main33550-53310iGSC10201409-202008

main33550-53320iAVC10..LHD201510-202008

33554CAP, SHIFT LEVER

main33554-24060iASC10..RHD201510-202008

main33554-24070iASC10,AVC10..LHD201409-202008

33675APIN, W/HOLE (FOR TRANSMISSION CONTROL ROD)

main33726-35010iGSC10201409-202008

33702BROD SUB-ASSY, GEAR SHIFTING, NO.1 (FOR FLOOR SHIFT)

main33702-30660iGSC10201409-202008

main33702-30670iAVC10201510-202008

3513THROTTLE LINK & VALVE LEVER (ATM)

→ Go to FIG 35-13

35569CGROMMET (FOR TRANSMISSION CONTROL ROD)

main90480-17013iGSC10201409-202008

35569GBUSH (FOR TRANSMISSION CONTROL ROD)

main90560-08091iGSC10201409-202008

35978INDICATOR, SHIFT POSITION

main35978-24070iASC10..RHD201510-201711

main35978-24080iGSC10201409-201711

main35978-24100iAVC10..RHD201510-201711

main35978-24110iAVC10..LHD201510-201711

main35978-24120iASC10..RHD201711-201803

main35978-24130iASC10..LHD201711-201803

main35978-24131iASC10201804-202008

main35978-24140iAVC10..RHD201711-201803

main35978-24141iAVC10..RHD201804-202008

main35978-24150iAVC10..LHD201711-201803

main35978-24151iAVC10..LHD201804-202008

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

9011906775

main90119-06775

9017908233

main90179-08233

9046814011

main90468-14011

9356855014

main93568-55014

14 parts on this diagram · 4 diagrams in section
