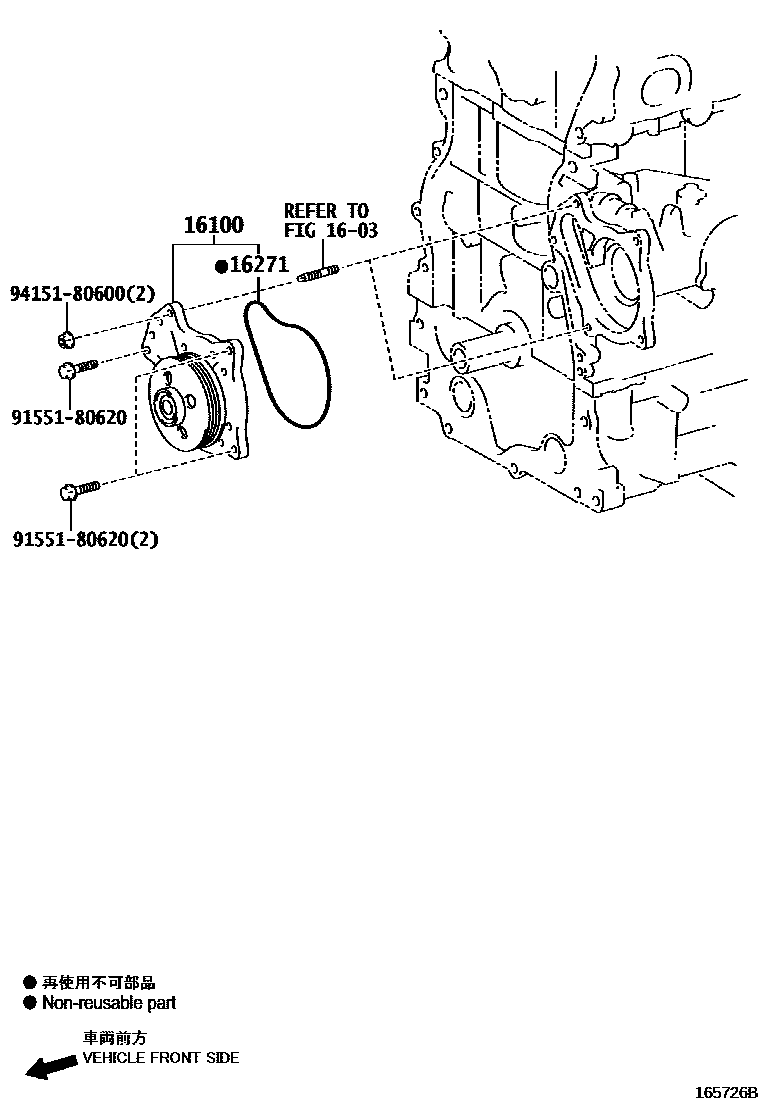

WATER PUMP

0001 1 0002 1 0003 1

1603

16100PUMP ASSY, ENGINE WATER

main16100-39436i2GRFSE..GSC10¥13,400201409-201711

main16100-39575i2ARFSE..AVC10¥9,000201510-202008

main16100-39595i8ARFTS..ASC10..LHD¥9,500201510-202008

16271GASKET, WATER PUMP

main16271-31020i2GRFSE..GSC10¥2,320201409-201711

main16271-36030i2ARFSE..AVC10¥200201510-202008

main16271-36040i8ARFTS..ASC10..RHD¥340201510-202008

9155180620

main91551-80620¥60

9415180600

main94151-80600¥60

5 parts on this diagram · 3 diagrams in section
