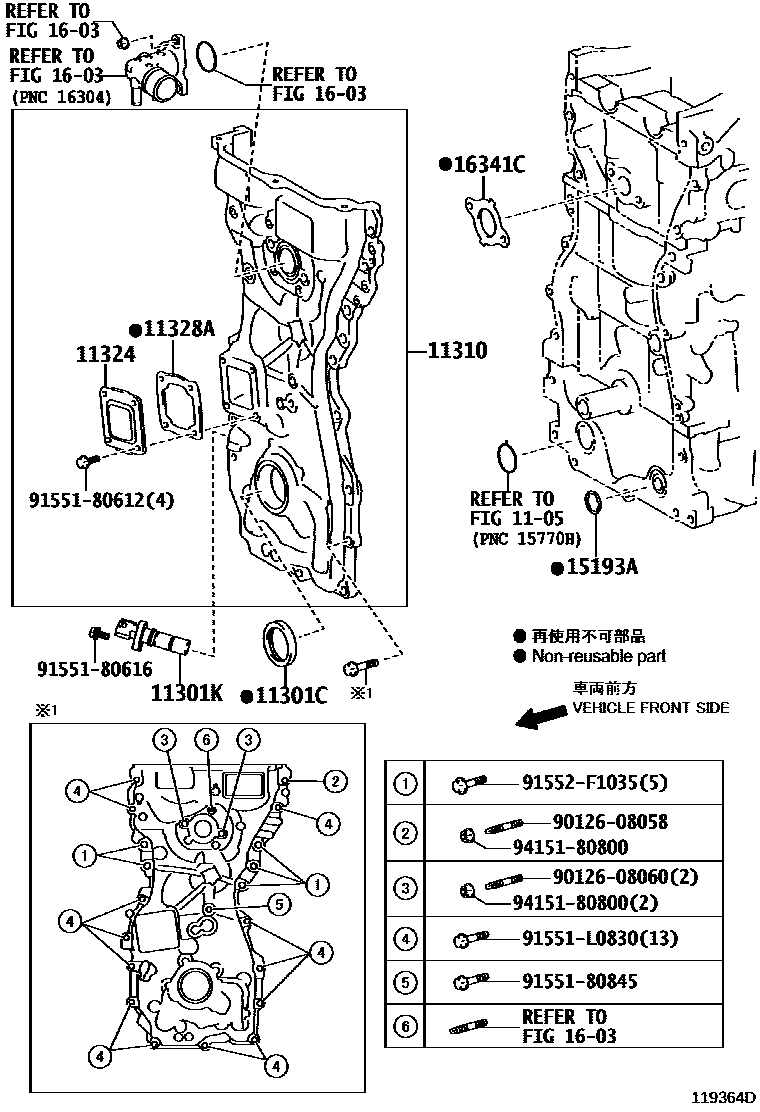

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1 0003 1

1105

11301CSEAL, OIL(FOR TIMING GEAR CASE OR TIMING CHAIN CASE)

main90311-40042i2ARFSE..AVC10201510-201902

sub90311-42061

main90311-42045i2GRFSE..GSC10201409-201711

main90311-42051i8ARFTS..ASC10..LHD201510-202008

main90311-42061i2ARFSE..AVC10201903-202008

11301KSENSOR, CRANK POSITION

main90919-05070i2ARFSE..AVC10201510-202008

main90919-05088i8ARFTS..ASC10..LHD201510-202008

11310COVER ASSY, TIMING CHAIN

main11310-36050i2ARFSE..AVC10201510-202008

main11310-36080i8ARFTS..ASC10..RHD201510-202008

11324PLATE, TIMING CHAIN COVER

main11324-31020i2GRFSE..GSC10201409-201711

main11324-36010i2ARFSE..AVC10201510-202008

main11324-36020i8ARFTS..ASC10201510-202008

11328GASKET, TIMING GEAR OR CHAIN COVER

main11328-31030i2GRFSE..GSC10201409-201711

main11328-36030i8ARFTS..ASC10..RHD201510-202008

11328AGASKET, TIMING BELT COVER, NO.1

main11328-36020i2ARFSE..AVC10201510-202008

15193AGASKET, OIL PUMP

main15197-36010i8ARFTS..ASC10..RHD201510-202008

1603

16341CGASKET, WATER OUTLET

main16341-36010i8ARFTS..ASC10..RHD201510-202008

9012608058

main90126-08058

9012608060

main90126-08060

9155180612

main91551-80612

9155180616

main91551-80616

9155180845

main91551-80845

91551L0830

main91551-L0830

91552F1035

main91552-F1035

9415180800

main94151-80800

18 parts on this diagram · 3 diagrams in section
