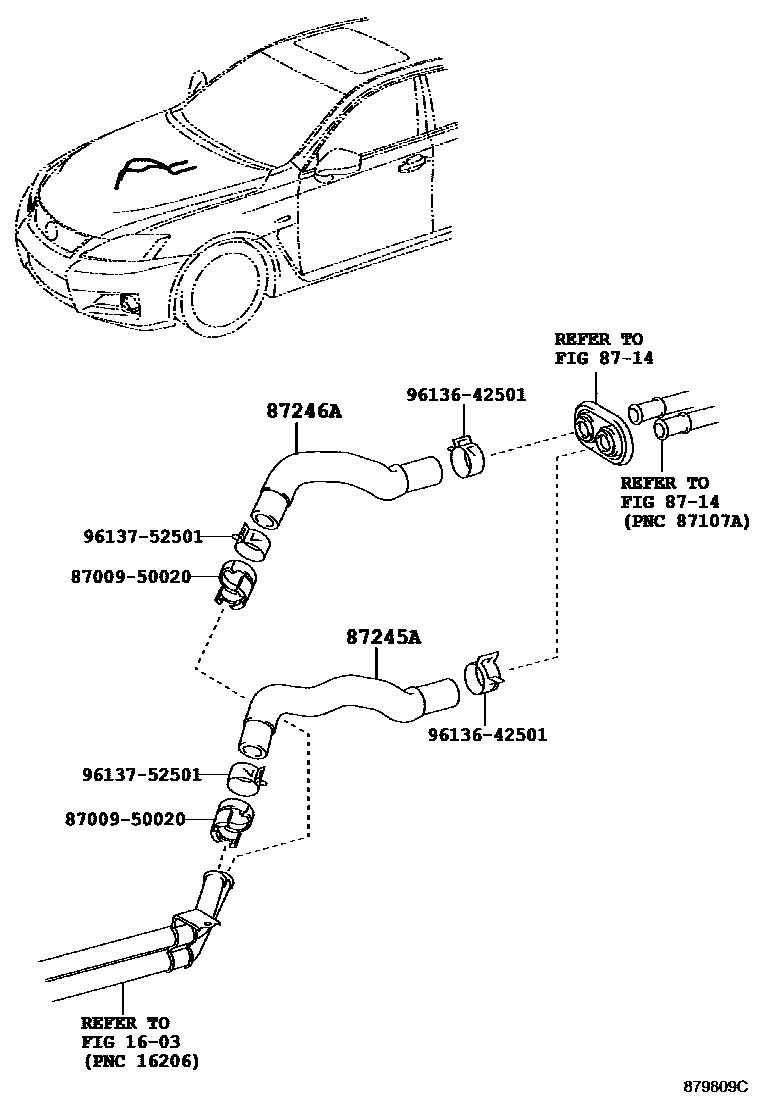

HEATING & AIR CONDITIONING - WATER PIPING

1603

8714

87245AHOSE, HEATER WATER, INLET A

main87245-53190iUSE20¥1,680200712

87246AHOSE, HEATER WATER, OUTLET A

main87245-30C10iUSE20¥1,480200712

8700950020HOSE SET, WATER, NO.1

main87009-50020¥290

9613642501

main96136-42501¥200

9613752501

main96137-52501¥240

7 parts on this diagram · 1 diagram in section
