MIRROR

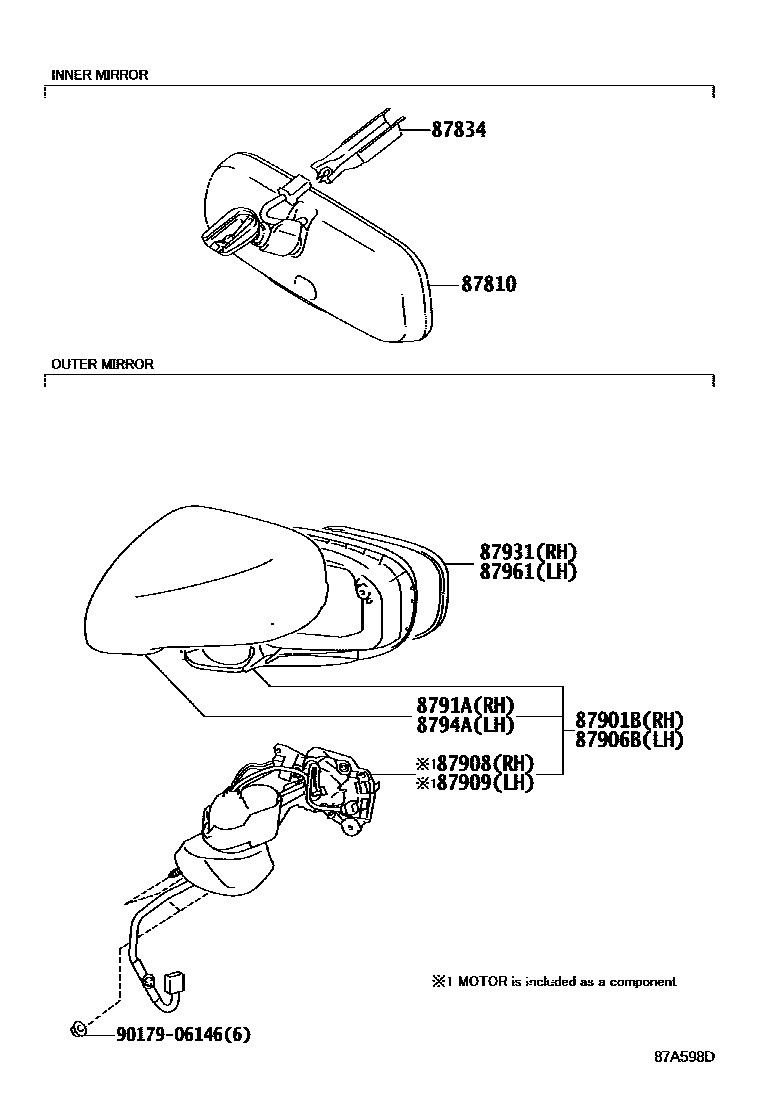

Parts diagram
87810MIRROR ASSY, INNER REAR VIEW
main87810-0W260i200908
main87810-53111i200712-200908
87834COVER, INNER REAR VIEW MIRROR STAY HOLDER
main87818-06030i200908
main87834-53010i200712-200908
87901BMIRROR SUB-ASSY, OUTER REAR VIEW, RH
main87901-53050-A1i200712-201208
WHITE PEARL CS.,077
main87901-53050-A3i201208-201408
WHITE NOVA GF.,083
main87901-53050-B0i200712-201108
DK.GRAY MC.,1G0
main87901-53050-B2i200712-201208
PREMIUM SILVER,1F2
main87901-53050-B3i201108-201408
MERCURY GRAY MC.,1H9
main87901-53050-B4i201208-201408
SONIC SILVER,1J2
main87901-53050-C0i201008-201408
BLACK,212
main87901-53050-C2i201008-201408
STARLIGHT BLACK GF.,217
main87901-53050-D0i200712-201008
RED MC.CS.,3R1
main87901-53050-J2i200712-201008
BLUE ME.,8U1
main87901-53060-A1i200712-201208
WHITE PEARL CS.,077
main87901-53060-A3i201208-201408
WHITE NOVA GF.,083
main87901-53060-B0i200712-201108
DK.GRAY MC.,1G0
main87901-53060-B2i200712-201208
PREMIUM SILVER,1F2
main87901-53060-B3i201108-201408
MERCURY GRAY MC.,1H9
main87901-53060-B4i201208-201408
SONIC SILVER,1J2
main87901-53060-C0i200712-201408
BLACK,212
main87901-53060-C2i201008-201408
STARLIGHT BLACK GF.,217
main87901-53060-D0i200712-201408
RED MC.CS.,3R1
main87901-53060-J2i200712-201408
BLUE ME.,8U1
87906BMIRROR SUB-ASSY, OUTER REAR VIEW, LH
main87906-53050-A1i200712-201208
WHITE PEARL CS.,077
main87906-53050-A3i201208-201408
WHITE NOVA GF.,083
main87906-53050-B0i200712-201108
DK.GRAY MC.,1G0
main87906-53050-B2i200712-201208
PREMIUM SILVER,1F2
main87906-53050-B3i201108-201408
MERCURY GRAY MC.,1H9
main87906-53050-B4i201208-201408
SONIC SILVER,1J2
main87906-53050-C0i201008-201408
BLACK,212
main87906-53050-C2i201008-201408
STARLIGHT BLACK GF.,217
main87906-53050-D0i201008-201408
RED MC.CS.,3R1
main87906-53050-J2i201008-201408
BLUE ME.,8U1
main87906-53060-A1i200712-201208
WHITE PEARL CS.,077
main87906-53060-A3i201208-201408
WHITE NOVA GF.,083
main87906-53060-B0i200712-201108
DK.GRAY MC.,1G0
main87906-53060-B2i200712-201208
PREMIUM SILVER,1F2
main87906-53060-B3i201108-201408
MERCURY GRAY MC.,1H9
main87906-53060-B4i201208-201408
SONIC SILVER,1J2
main87906-53060-C0i200712-201408
BLACK,212
main87906-53060-C2i201008-201408
STARLIGHT BLACK GF.,217
main87906-53060-D0i200712-201408
RED MC.CS.,3R1
main87906-53060-J2i200712-201408
BLUE ME.,8U1
87908ACTUATOR ASSY, OUTER MIRROR, RH
main87908-53200-A2i200712-201008
WHITE PEARL CS.,077
main87908-53200-A3i201208
WHITE NOVA GF.,083 ,212
main87908-53200-B0i200712-201008
DK.GRAY MC.,1G0
main87908-53200-B2i201208
SONIC SILVER,1J2 ,8U1
main87908-53200-B3i201108
MERCURY GRAY MC.,1H9 ,3R1
main87908-53200-B4i200712-201008
PREMIUM SILVER,1F2
main87908-53200-C1i200712-201008
BLACK,212
main87908-53200-C2i201008
STARLIGHT BLACK GF.,217
main87908-53200-D0i200712-201008
RED MC.CS.,3R1
main87908-53200-J3i200712-201008
BLUE ME.,8U1
main87908-53230-A2i201008-201208
WHITE PEARL CS.,077
main87908-53230-A3i201208
WHITE NOVA GF.,083
main87908-53230-B0i201008-201108
DK.GRAY MC.,1G0
main87908-53230-B2i201208
SONIC SILVER,1J2
main87908-53230-B3i201108
MERCURY GRAY MC.,1H9
main87908-53230-B4i200712-201008
PREMIUM SILVER,1F2
main87908-53230-C1i201008
BLACK,212
main87908-53230-C2i201008
STARLIGHT BLACK GF.,217
main87908-53230-D0i200712-201008
RED MC.CS.,3R1
main87908-53230-J4i200712-201008
BLUE ME.,8U1
87909ACTUATOR ASSY, OUTER MIRROR, LH
main87909-53200-A2i200712-201008
WHITE PEARL CS.,077
main87909-53200-A3i201208
WHITE NOVA GF.,083 ,212
main87909-53200-B0i200712-201008
DK.GRAY MC.,1G0
main87909-53200-B2i201208
SONIC SILVER,1J2 ,8U1
main87909-53200-B3i201108
MERCURY GRAY MC.,1H9 ,3R1
main87909-53200-B4i200712-201008
PREMIUM SILVER,1F2
main87909-53200-C1i200712-201008
BLACK,212
main87909-53200-C2i201008
STARLIGHT BLACK GF.,217
main87909-53200-D0i200712-201008
RED MC.CS.,3R1
main87909-53200-J3i200712-201008
BLUE ME.,8U1
main87909-53230-A2i200712-201008
WHITE PEARL CS.,077
main87909-53230-A3i201208
WHITE NOVA GF.,083
main87909-53230-B0i201008-201108
DK.GRAY MC.,1G0
main87909-53230-B2i201208
SONIC SILVER,1J2
main87909-53230-B3i201108
MERCURY GRAY MC.,1H9
main87909-53230-B4i200712-201008
PREMIUM SILVER,1F2
main87909-53230-C1i200712-201008
BLACK,212
main87909-53230-C2i201008
STARLIGHT BLACK GF.,217
main87909-53230-D0i201008
RED MC.CS.,3R1
main87909-53230-J4i201008
BLUE ME.,8U1
8791ACOVER, OUTER MIRROR, RH NO.2
main8791A-53200-A2i200712-201008
WHITE PEARL CS.,077
main8791A-53200-A3i201208
WHITE NOVA GF.,083 ,212
main8791A-53200-B0i200712-201008
DK.GRAY MC.,1G0
main8791A-53200-B2i200712-201008
PREMIUM SILVER,1F2
main8791A-53200-B3i201108
MERCURY GRAY MC.,1H9 ,3R1
main8791A-53200-B4i201208
SONIC SILVER,1J2 ,8U1
main8791A-53200-C1i201008
BLACK,212
main8791A-53200-C2i201008
STARLIGHT BLACK GF.,217
main8791A-53200-D0i201008
RED MC.CS.,3R1
main8791A-53200-J3i201008
BLUE ME.,8U1
main8791A-53230-A2i201008-201208
WHITE PEARL CS.,077
main8791A-53230-A3i201208
WHITE NOVA GF.,083
main8791A-53230-B0i201008-201108
DK.GRAY MC.,1G0
main8791A-53230-B2i201008-201208
PREMIUM SILVER,1F2
main8791A-53230-B3i201108
MERCURY GRAY MC.,1H9
main8791A-53230-B4i201208
SONIC SILVER,1J2
main8791A-53230-C1i200712-201008
BLACK,212
main8791A-53230-C2i201008
STARLIGHT BLACK GF.,217
main8791A-53230-D0i201008
RED MC.CS.,3R1
main8791A-53230-J3i201008
BLUE ME.,8U1
87931OUTER MIRROR, RH
main87931-53200i200712
8794ACOVER, OUTER MIRROR, LH NO.2
main8794A-53200-A2i200712-201008
WHITE PEARL CS.,077
main8794A-53200-A3i201208
WHITE NOVA GF.,083 ,212
main8794A-53200-B0i200712-201008
DK.GRAY MC.,1G0
main8794A-53200-B2i200712-201008
PREMIUM SILVER,1F2
main8794A-53200-B3i201108
MERCURY GRAY MC.,1H9 ,3R1
main8794A-53200-B4i201208
SONIC SILVER,1J2 ,8U1
main8794A-53200-C1i201008
BLACK,212
main8794A-53200-C2i201008
STARLIGHT BLACK GF.,217
main8794A-53200-D0i200712-201008
RED MC.CS.,3R1
main8794A-53200-J3i200712-201008
BLUE ME.,8U1
main8794A-53230-A2i201008-201208
WHITE PEARL CS.,077
main8794A-53230-A3i201208
WHITE NOVA GF.,083
main8794A-53230-B0i201008-201108
DK.GRAY MC.,1G0
main8794A-53230-B2i201008-201208
PREMIUM SILVER,1F2
main8794A-53230-B3i201108
MERCURY GRAY MC.,1H9
main8794A-53230-B4i201208
SONIC SILVER,1J2
main8794A-53230-C1i200712-201008
BLACK,212
main8794A-53230-C2i201008
STARLIGHT BLACK GF.,217
main8794A-53230-D0i201008
RED MC.CS.,3R1
main8794A-53230-J3i201008
BLUE ME.,8U1
87961MIRROR OUTER, LH
main87961-53200i200712
9017906146
main90179-06146

11 parts on this diagram · 1 diagram in section
