NAVIGATION & FRONT MONITOR DISPLAY

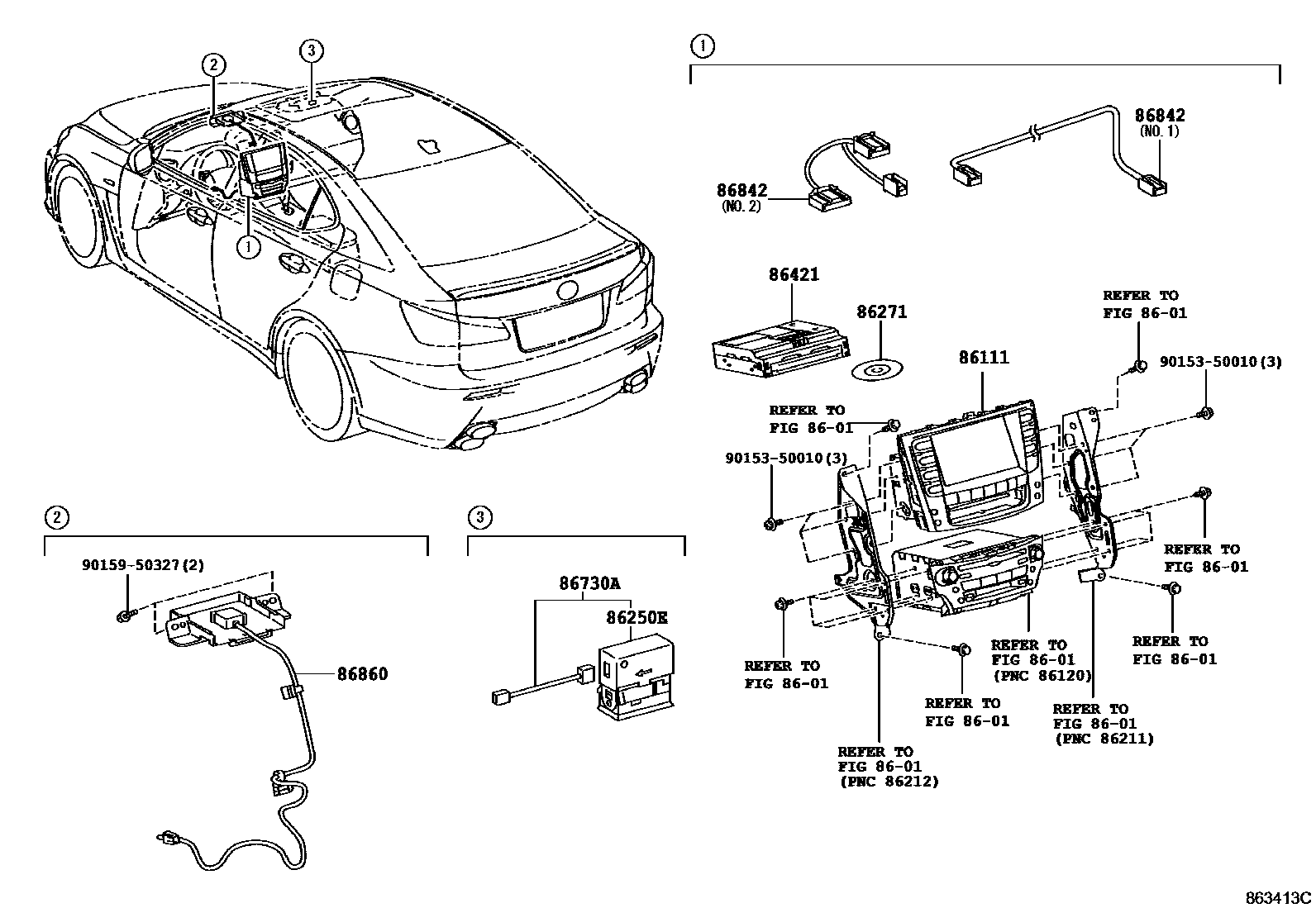

Parts diagram
8601
86111MULTI-DISPLAY
main86111-53100i200712-200808
DENSO,NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86111-53100i200712-200808
DENSO,AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86111-53100i200712-200808
DENSO,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86111-53110i200712-200808
DENSO,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86111-53400i200808-200908
DENSO,AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86111-53400i200808-200908
DENSO,NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86111-53400i200808-200908
DENSO,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86111-53410i200808-200908
DENSO,AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
86250EMICROPHONE ASSY, AMPLIFIER
main86250-52020i200712-200908
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86250-52030i200712-200908
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
86271DISC, DISC PLAYER
main86271-47072i201010-201109
AUSTRALIA SPEC
sub86271-47073
main86271-47072i201010-201109
NEW ZEALAND SPEC
sub86271-47073
main86271-47073i201109-201208
AUSTRALIA SPEC
main86271-47073i201109-201208
NEW ZEALAND SPEC
main86271-53012i200712-200810
NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86271-53012i200712-200810
AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86271-53013i200810-200908
AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86271-53013i200810-200908
NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86271-60180i200908-200910
AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
sub86271-60181
main86271-60180i200908-200910
NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
sub86271-60181
main86271-60181i200910-201008
NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
sub86271-47073
main86271-60181i200910-201008
AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
sub86271-47073
main86271-60181i201008-201010
NEW ZEALAND SPEC
sub86271-47073
main86271-60181i201008-201010
AUSTRALIA SPEC
sub86271-47073
main86807-06010i201310-201408
NEW ZEALAND SPEC
sub86807-06011
main86807-06010i201310-201408
AUSTRALIA SPEC
sub86807-06011
main86807-0W035i201008-201107
TAIWAN SPEC&MAP DISC(DOP)-WITH
sub86807-0W036
main86807-0W036i201108-201208
TAIWAN SPEC&MAP DISC(DOP)-WITH
sub86807-0W037
main86807-0W200i201208-201209
TAIWAN SPEC
sub86807-0W201
main86807-0W220i201209-201307
TAIWAN SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER
main86807-0W220i201209-201307
TAIWAN SPEC
main86807-0W221i201308-201309
TAIWAN SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER
sub86807-0W222
main86807-0W221i201309-201408
TAIWAN SPEC
sub86807-0W222
main86807-30120i201209-201309
NEW ZEALAND SPEC
sub86807-06010
main86807-30120i201209-201309
AUSTRALIA SPEC
sub86807-06010
86421BOARD, NAVIGATION MODULE
main86421-53010i200712-200908
NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86421-53010i200712-200908
AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86421-53030i200712-200908
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
86730AMICROPHONE ASSY, TELEPHONE
main86730-53010i200712-200908
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86730-53020i200712-200908
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86730-53040i200908-201408
main86730-53050i200908-201408
NEW ZEALAND SPEC
main86730-53050i200908-201408
AUSTRALIA SPEC
86842WIRE, NAVIGATION, NO.1
main86842-53040i200712-200908
NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.1
main86842-53040i200712-200908
AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.1
main86842-53040i200712-200908
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.1
main86842-53050i200712-200908
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.2
main86842-53050i200712-200908
NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.2
main86842-53050i200712-200908
AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.2
main86842-53060i200712-200908
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER,NO.1
main86842-53070i200908-201208
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI)
main86842-53080i200908-201008
NEW ZEALAND SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
main86842-53080i200908-201008
AUSTRALIA SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
main86842-53080i201008-201208
AUSTRALIA SPEC
main86842-53080i201008-201208
TAIWAN SPEC&AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(GPS NAVIGATION)
main86842-53080i201008-201208
NEW ZEALAND SPEC
main86842-53100i200908-201008
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI)
main86842-53100i201008-201208
main86842-53200i201208-201309
AUDIO-AM/FM DVD 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI)
main86842-53200i201208-201309
TAIWAN SPEC&AUDIO-AM/FM DVD 5.1CH 14SPEAKER&EMV & NAVIGATION SYSTEM-WITH(HDD NAVI)
main86842-53200i201208-201408
86860ANTENNA ASSY, NAVIGATION
main86860-53040i201008-201208
main86860-53040i200712-201008
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86860-53050i200712-201208
AUDIO-AM/FM DVD CHANGER 5.1CH 14SPEAKER
main86860-53090i201208-201408
main86860-53100i201208-201309
AUDIO-AM/FM DVD 5.1CH 14SPEAKER
main86860-53100i201309-201408
9015350010
main90153-50010
9015950327
main90159-50327

10 parts on this diagram · 10 diagrams in section
