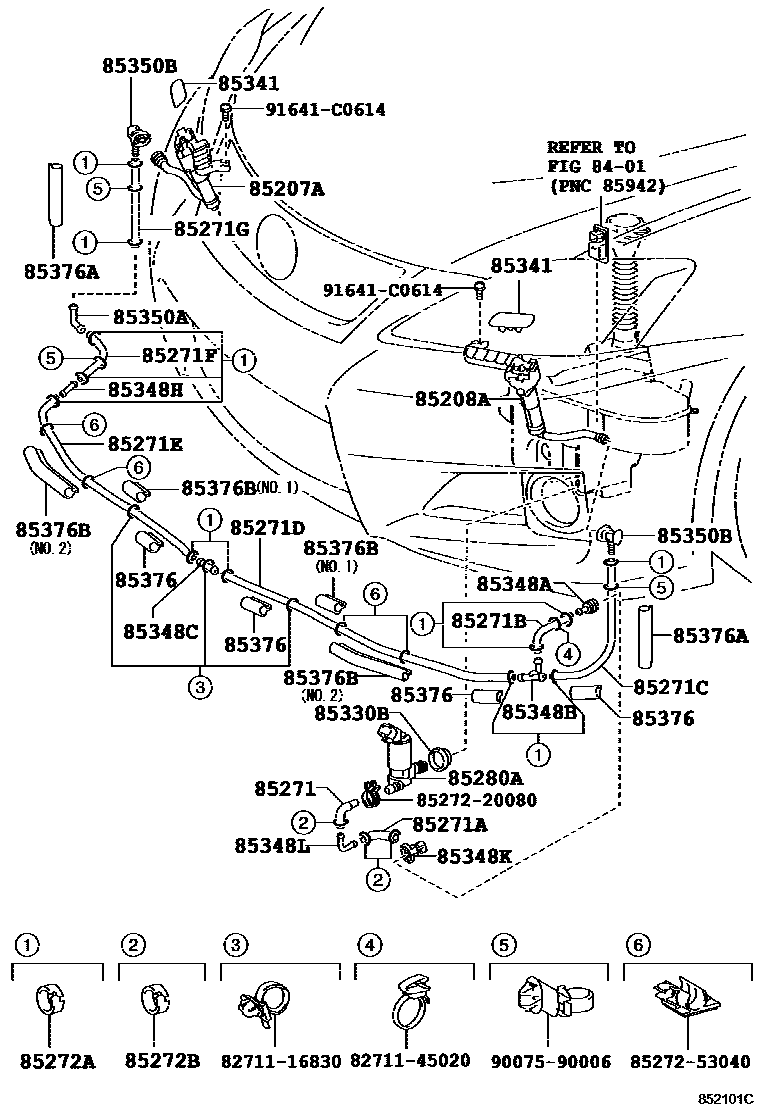

HEADLAMP CLEANER
8401
85207AACTUATOR SUB-ASSY, HEADLAMP WASHER, RH
85208AACTUATOR SUB-ASSY, HEADLAMP WASHER, LH
85271HOSE, HEADLAMP CLEANER, NO.1
85271AHOSE, HEADLAMP CLEANER, NO.2
L=135
85271BHOSE, HEADLAMP CLEANER, NO.3
85271CHOSE, HEADLAMP CLEANER, NO.4
L=300
85271DHOSE, HEADLAMP CLEANER, NO.5
85271EHOSE, HEADLAMP CLEANER, NO.6
85271FHOSE, HEADLAMP CLEANER, NO.7
85271GHOSE, HEAD LAMP
L=140
85272ACLAMP, HEADLAMP CLEANER, NO.1
85272BCLAMP, HEADLAMP CLEANER, NO.2
85280AMOTOR AND PUMP ASSY, HEADLAMP CLEANER
85330BBUSH, HEADLAMP CLEANER WASHER JAR
85341NOZZLE, HEADLAMP CLEANER WASHER
WHITE PEARL CS.,077,RH
WHITE NOVA GF.,083,RH
PREMIUM SILVER,1F2,RH
DK.GRAY MC.,1G0,RH
MERCURY GRAY MC.,1H9,RH
SONIC SILVER,1J2,RH
BLACK,212,RH
STARLIGHT BLACK GF.,217,RH
RED MC.CS.,3R1,RH
BLUE ME. CC.,8U1,RH
WHITE PEARL CS.,077,LH
WHITE NOVA GF.,083,LH
PREMIUM SILVER,1F2,LH
DK.GRAY MC.,1G0,LH
MERCURY GRAY MC.,1H9,LH
SONIC SILVER,1J2,LH
BLACK,212,LH
STARLIGHT BLACK GF.,217,LH
RED MC.CS.,3R1,LH
BLUE ME. CC.,8U1,LH
85348AJOINT, HEADLAMP CLEANER HOSE, NO.1
85348BJOINT, HEADLAMP CLEANER HOSE, NO.2
85348CJOINT, HEADLAMP CLEANER HOSE, NO.3
85348HJOINT, HEADLAMP CLEANER HOSE, NO.4
85348KJOINT, HEADLAMP CLEANER ELBOW, NO.1
85348LJOINT, HEADLAMP CLEANER ELBOW, NO.2
85350AJOINT, HEADLAMP CLEANER ELBOW, NO.3
85350BJOINT, HEADLAMP CLEANER ELBOW, NO.4
85376APROTECTOR, HEADLAMP CLEANER HOSE, NO.2
85376BPROTECTOR, HEADLAMP CLEANER HOSE, NO.3
NO.1
NO.2
8271116830WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-16830
8271145020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-45020
8527220080CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-20080
8527253040CABLE SUB-ASSY, HEADLAMP CLEANER, RH
main85272-53040
9007590006
main90075-90006
91641C0614
main91641-C0614
33 parts on this diagram · 1 diagram in section
