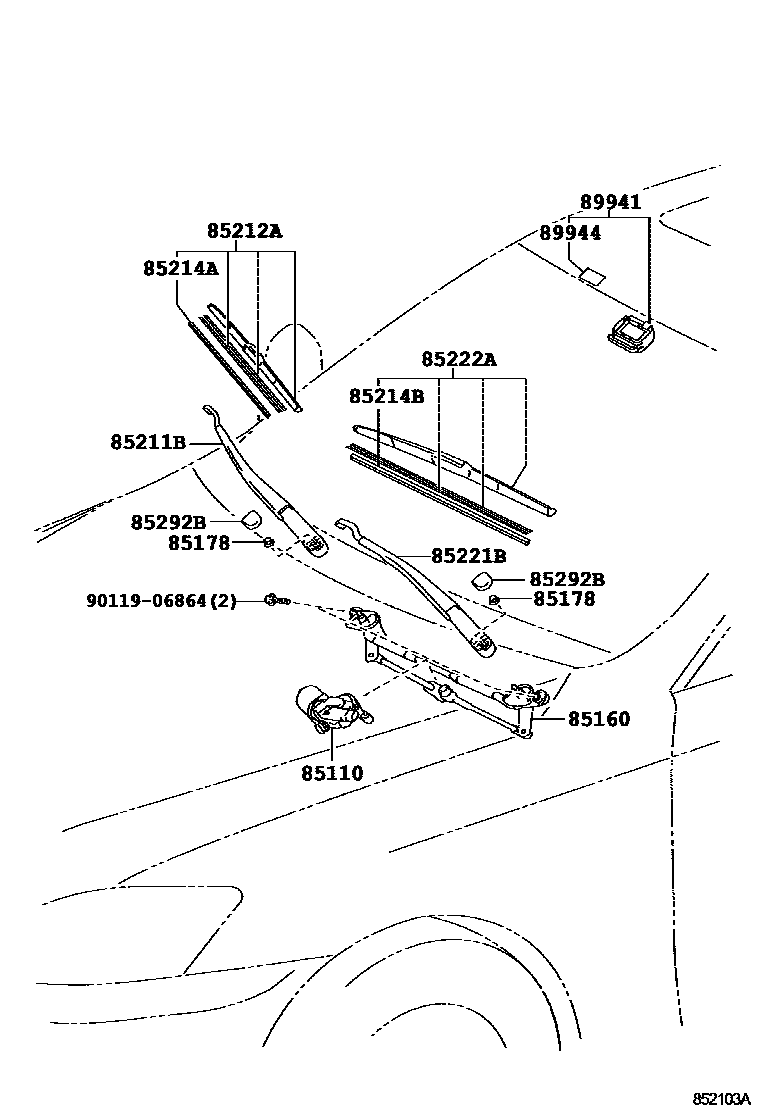

WINDSHIELD WIPER

0001 1 0002 1

85110MOTOR ASSY, WINDSHIELD WIPER

main85110-26220iUSE20..RHD200712-200905

main85110-53040iUSE20..LHD200712-200905

main85110-60380iUSE20..RHD200906

main85110-60400iUSE20..LHD200906

85160LINK ASSY, WINDSHIELD WIPER

main85150-53060iUSE20..LHD200712

sub85150-53061

main85150-53070iUSE20..RHD200712

sub85150-53071

85178NUT (FOR FRONT WIPER ARM SETTING)

main90179-10223×2iUSE20200712-201106

main90182-10006×2iUSE20201107

85211BARM, FRONT WIPER, RH

main85211-53060iUSE20..RHD200712

main85211-53070iUSE20..LHD200712

85212ABLADE, FR WIPER, RH

main85212-53070iUSE20..RHD200712-201408

main85212-53081iUSE20..LHD200712-201408

85214ARUBBER, WIPER, RH

main85214-53080iUSE20..RHD200712

main85214-53090iUSE20..LHD200712

85214BRUBBER, WIPER, LH

main85214-53080iUSE20..LHD200712

main85214-53090iUSE20..RHD200712

85221BARM, FRONT WIPER, LH

main85221-53060iUSE20..RHD200712

main85221-53070iUSE20..LHD200712

85222ABLADE, FR WIPER, LH

main85222-53060iUSE20..RHD200712-201408

main85222-53071iUSE20..LHD200712-201408

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010×2iUSE20200712

89941SENSOR, RAIN

main89941-53011iUSE20200712-200807

main89941-53012iUSE20200808-200907

main89941-53020iUSE20200908

89944TAPE, RAIN SENSOR

main89944-30020iUSE20200712

9011906864

main90119-06864

13 parts on this diagram · 2 diagrams in section
