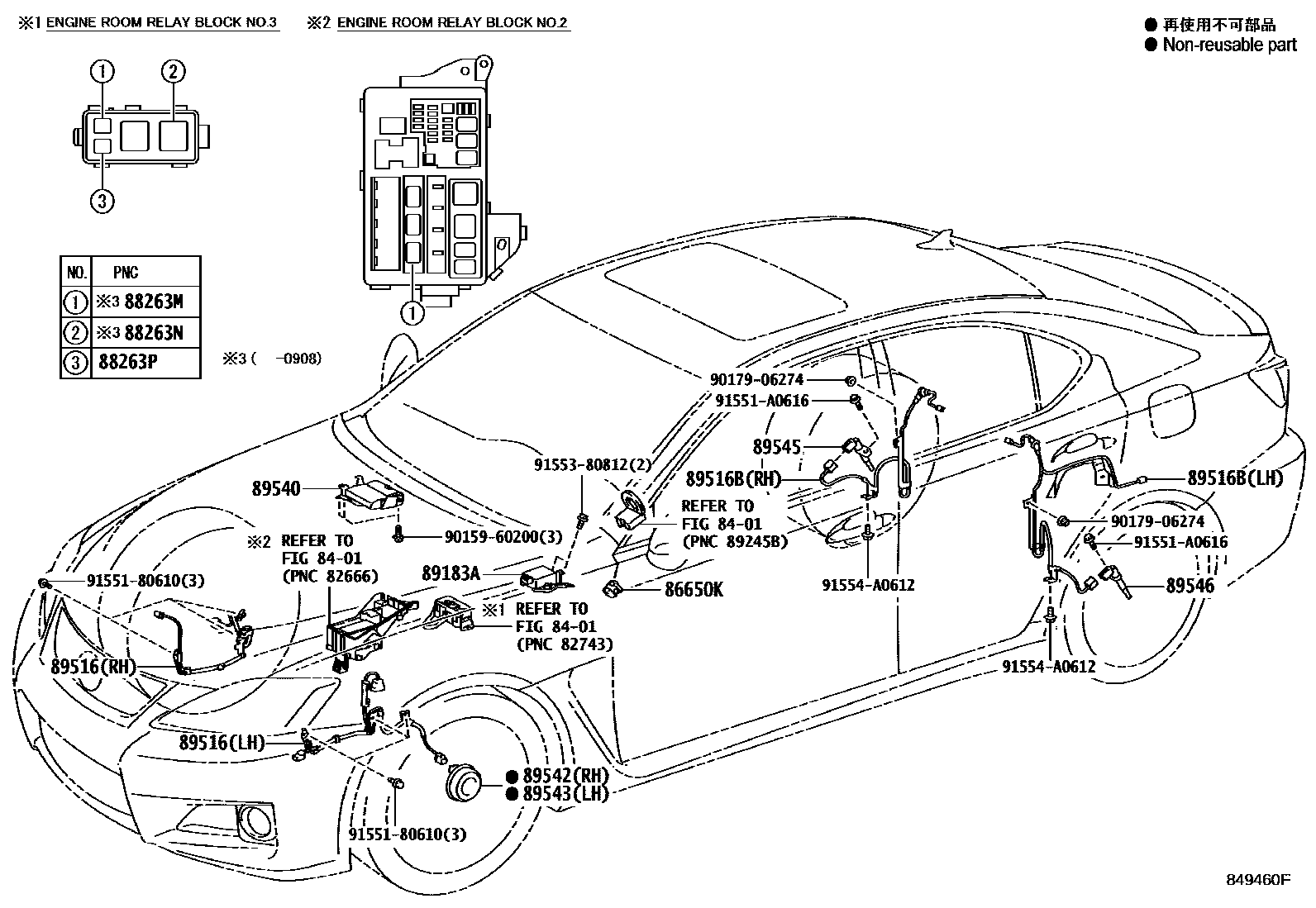

ABS & VSC

0001 1 0002 1

8401

86650KBUZZER ASSY, SKID CONTROL

main86652-50010iUSE20¥2,400200712-201008

88263MRELAY, ABS SOLENOID

main88263-32070iUSE20¥2,810200712-200908

88263NRELAY, ABS MOTOR

main88263-21010iUSE20¥2,740200712-200908

88263PRELAY, STOP LAMP CONTROL

main90987-04004iUSE20¥2,810200712-201408

89183ASENSOR, YAWRATE

main89180-22020iUSE20¥120,000200712-200908

main89180-53030iUSE20¥120,000200908

89516WIRE, SKID CONTROL SENSOR

main89516-30020iUSE20¥4,260200712-201203

RH

sub89516-30150¥3,550

main89516-30060iUSE20¥6,000200712

LH

main89516-30150iUSE20¥3,550201204-201302

RH

main89516-53060iUSE20¥4,260201303

RH

89516BWIRE, SKID CONTROL SENSOR

main89516-22020iUSE20¥2,840200712-201408

RH

main89516-22040iUSE20¥7,500200712-201408

LH

89540COMPUTER ASSY, SKID CONTROL

main89540-53350iUSE20..RHD¥257,000200712-200808

main89540-53351iUSE20..RHD¥257,000200808-200908

main89540-53360iUSE20..LHD¥146,000200712-200808

main89540-53361iUSE20..LHD200808-200908

89542SENSOR, SPEED, FRONT RH

main89542-30260iUSE20¥21,700200712-201408

89543SENSOR, SPEED, FRONT LH

main89543-30260iUSE20¥21,700200712-201408

89545SENSOR, SPEED, REAR RH

main89545-30070iUSE20¥13,600200712-201408

89546SENSOR, SPEED, REAR LH

main89546-30070iUSE20¥13,600200712-201408

9015960200

main90159-60200¥100

9017906274

main90179-06274¥70

9155180610

main91551-80610¥60

91551A0616

main91551-A0616¥60

9155380812

main91553-80812¥80

91554A0612

main91554-A0612¥60

19 parts on this diagram · 2 diagrams in section
