SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1ENGINE ROOM 0004 1ENGINE ROOM RELAY BLOCK 0005 1ENGINE ROOM RELAY BLOCK 0006 1COWL 0007 1COWL 0008 1INSTRUMENT PANEL 1/2 0009 1INSTRUMENT PANEL 1/2 0010 1INSTRUMENT PANEL 1/2 0011 1INSTRUMENT PANEL 1/2 0012 1INSTRUMENT PANEL 2/2 0013 1STEERING 0014 1SEAT 0015 1DOOR,ROOF,FLOOR & LUGGAGE

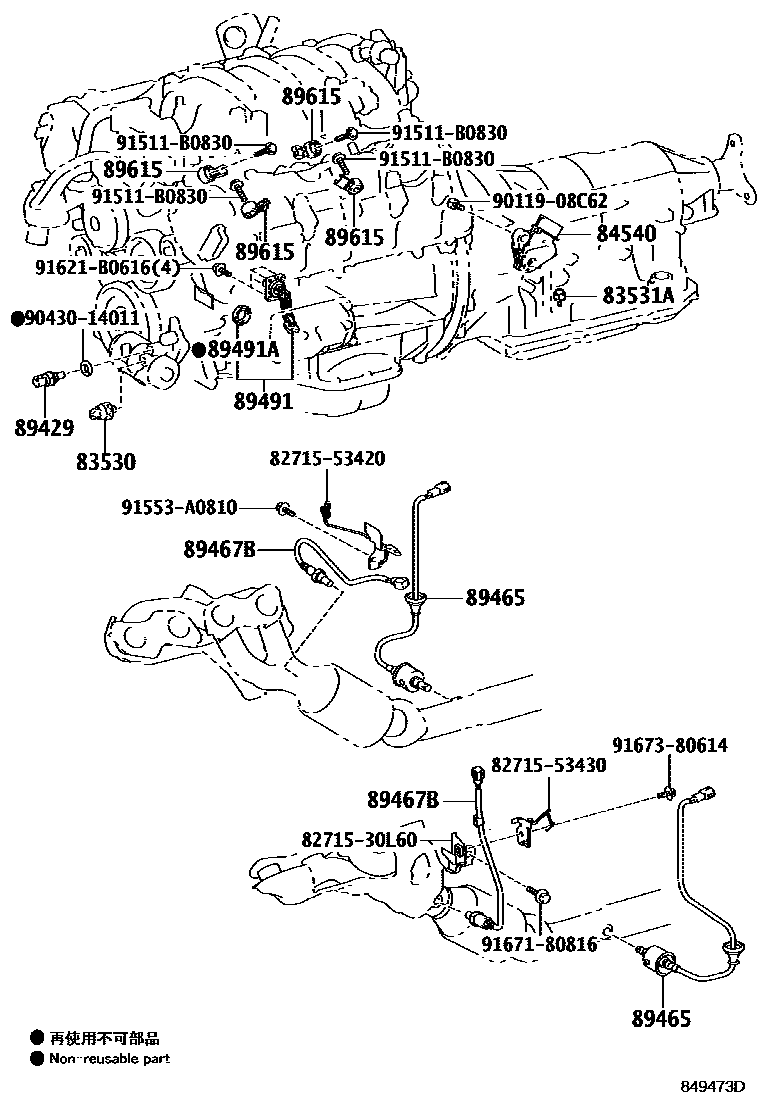

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iUSE20200712-201104

main83530-60020iUSE20201104

YAZAKI

83531ASWITCH, OIL PRESSURE

main83531-50010iUSE20200712-201408

84540SWITCH ASSY, NEUTRAL START

main84540-71010iUSE20200712-201408

89429SENSOR, OIL TEMPERATURE

main89429-53010iUSE20200712

89465SENSOR, OXYGEN

main89465-30730×2iUSE20200712

89467BSENSOR, AIR FUEL RATIO

main89467-53020×2iUSE20200712-201208

main89467-53050×2iUSE20201208

89491SENSOR, ENGINE OIL LEVEL

main89491-53020iUSE20200712

sub89491-24020

89491AGASKET, ENGINE OIL LEVEL SENSOR

main89493-60010iUSE20200712

89615SENSOR, KNOCK CONTROL

main89615-20090×4iUSE20200712

8271530L60BRACKET,WIRING HARNESS CLAMP

main82715-30L60

8271553420BRACKET,WIRING HARNESS CLAMP

main82715-53420

8271553430BRACKET,WIRING HARNESS CLAMP

main82715-53430

9011908C62

main90119-08C62

9043014011

main90430-14011

91511B0830

main91511-B0830

91553A0810

main91553-A0810

91621B0616

main91621-B0616

9167180816

main91671-80816

9167380614

main91673-80614

19 parts on this diagram · 15 diagrams in section
