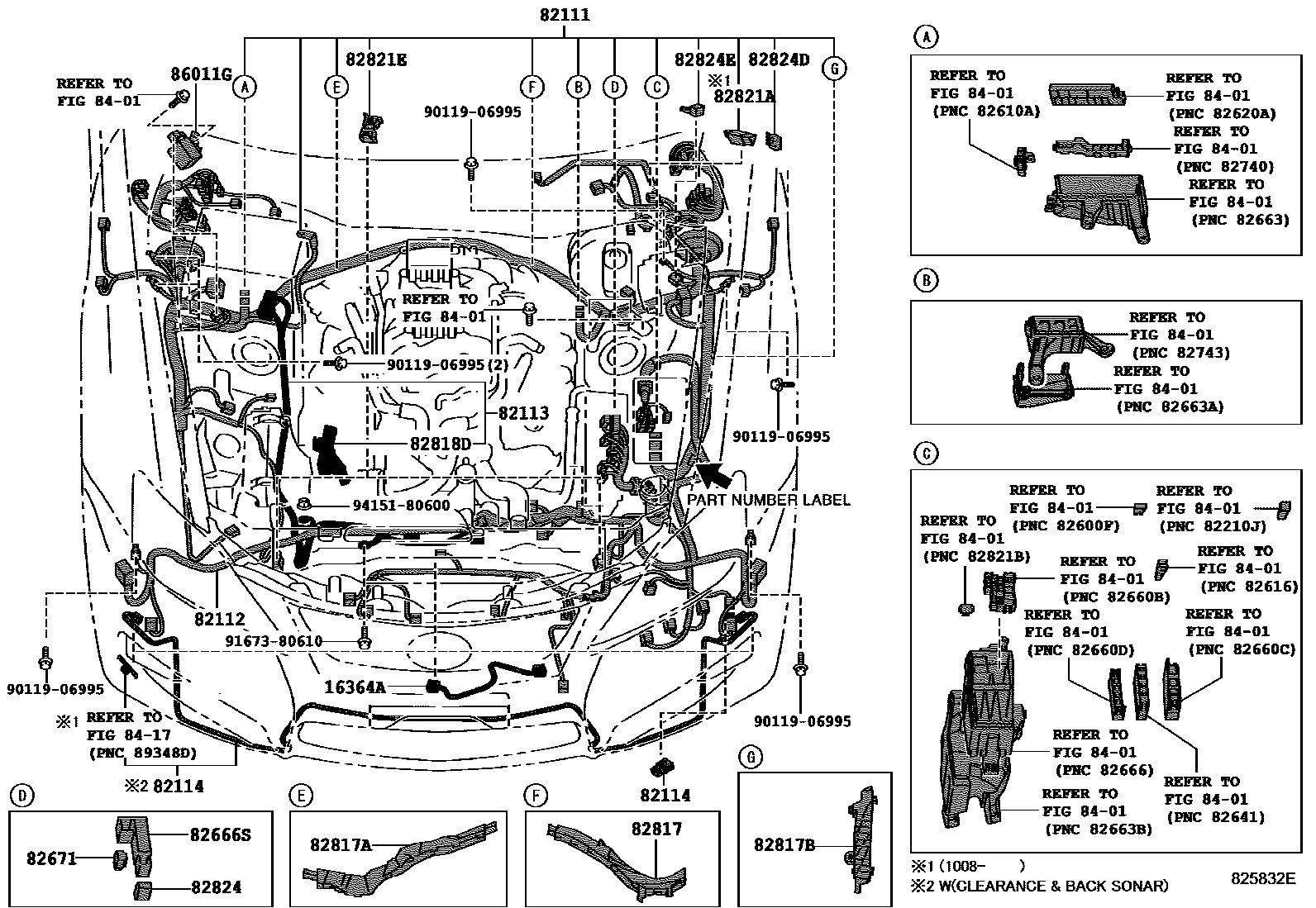

WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE ROOM 0003 1ENGINE 0004 1ENGINE 0005 1ENGINE 0006 1ENGINE 0007 1INSTRUMENT PANEL 0008 1INSTRUMENT PANEL 0009 1DOOR 0010 1FLOOR & ROOF 0011 1SEAT 0012 1CLAMP & BRACKET 0013 1CONNECTOR 1/3 0014 1CONNECTOR 2/3 0015 1CONNECTOR 3/3

16364AWIRE, COOLING FAN

main16364-38020i2URGSE..USE20200712-201408

82111WIRE, ENGINE ROOM MAIN

main82111-53D00iUSE20..RHD200712-200908

main82111-53D01iUSE20..RHD200908-201008

main82111-53D02iUSE20..RHD201008-201109

main82111-53D03iUSE20..RHD201110-201208

main82111-53D04iUSE20..RHD201208

main82111-53D40iUSE20..LHD200712-200908

main82111-53D41iUSE20..LHD200908-201008

main82111-53D42iUSE20..LHD201008-201108

main82111-53D43iUSE20..LHD201108-201109

main82111-53D44iUSE20..LHD201110-201208

main82111-53D45iUSE20..LHD201208

82112WIRE, ENGINE ROOM, NO.2

main82112-53180iUSE20200712-201008

main82112-53181iUSE20201008

82113WIRE, ENGINE ROOM, NO.3

main82113-53060iUSE20..LHD200712

main82113-53070iUSE20..RHD200712

82114WIRE, ENGINE ROOM, NO.4

main82114-53040iUSE20200712-201408

82666SHOLDER, CONNECTOR NO.13

main82666-30A70iUSE20200712

82671BLOCK, JUNCTION

main82671-30340iUSE20200712

82817PROTECTOR, WIRING HARNESS, NO.1

main82817-30B70iUSE20..LHD200712

main82817-53270iUSE20..RHD200712

82817APROTECTOR, WIRING HARNESS, NO.2

main82817-53260iUSE20..LHD200712

main82817-53280iUSE20..RHD200712

82817BPROTECTOR, WIRING HARNESS, NO.3

main82817-53290iUSE20200712

82818DPROTECTOR, WIRING HARNESS, NO.5

main82817-53320iUSE20..LHD200712

82821ACOVER, CONNECTOR

main82821-22120iUSE20..RHD200712

82821ECOVER, CONNECTOR

main82821-30650iUSE20200712

82824CONNECTOR, WIRING HARNESS

main82824-28180iUSE20200712

82824DCONNECTOR, WIRING HARNESS

main82824-30130iUSE20200712

82824ECONNECTOR, WIRING HARNESS

main82824-48020iUSE20200712

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

86011GCONDENSER

main82930-30030iUSE20..LHD201111

main82930-30040iUSE20..RHD201111

main86516-30460iUSE20..LHD200712-201111

main86516-30470iUSE20..RHD200712-201111

9011906995

main90119-06995

9167380610

main91673-80610

9415180600

main94151-80600

22 parts on this diagram · 15 diagrams in section
