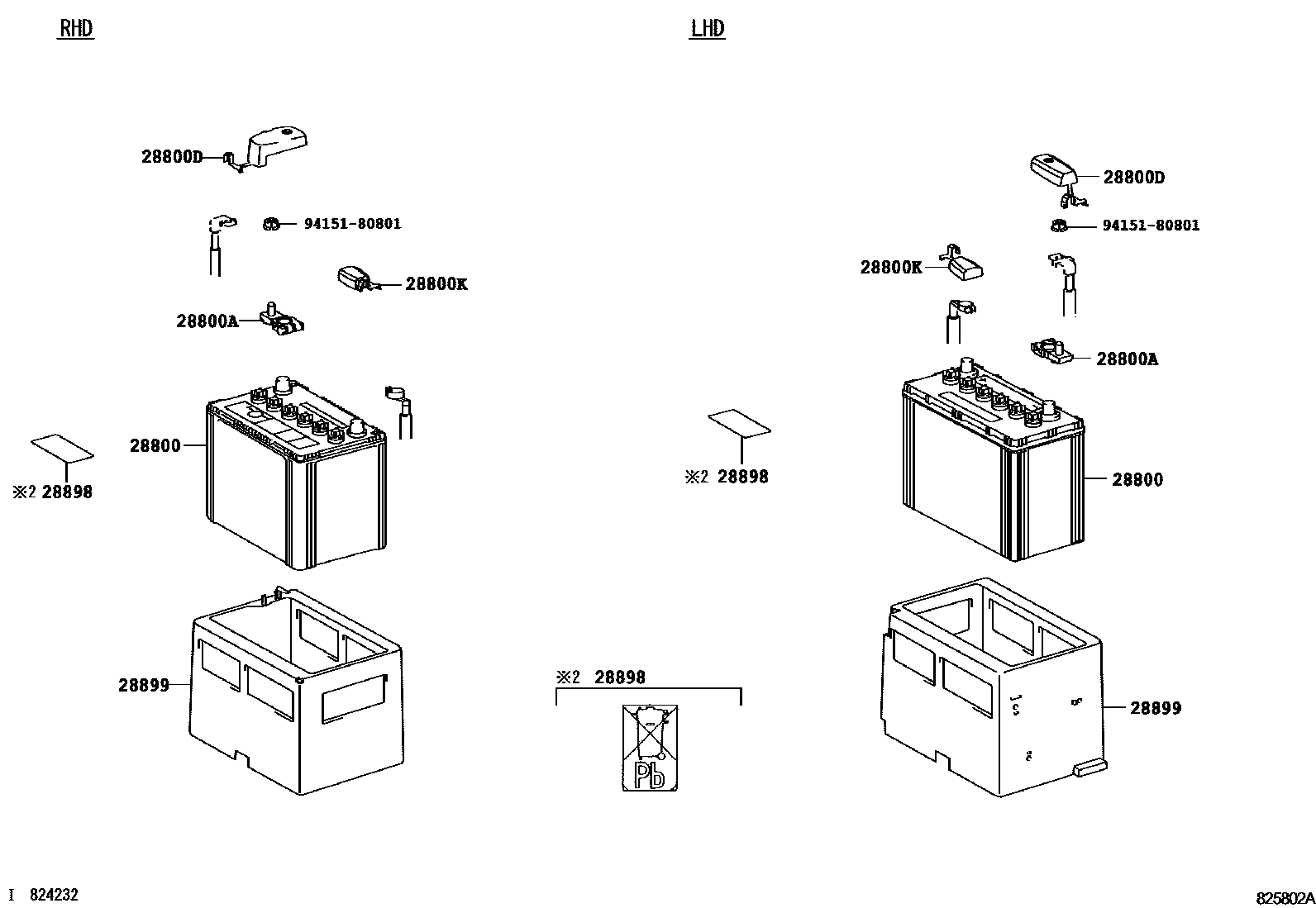

BATTERY & BATTERY CABLE

28800BATTERY

main28800-38080i2URGSE..USE20..RHD200712-201408

80D26L

sub28800-38081

main28800-38100i2URGSE..USE20..LHD200712-201408

80D26R

sub28800-38101

28800ATERMINAL, BATTERY POSITIVE

main90982-05061i2URGSE..USE20..RHD200712

main90982-05062i2URGSE..USE20..LHD200712

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-50470i2URGSE..USE20200712

28800KCOVER, CONNECTOR(FOR BATTERY TERMINAL NEGATIVE)

main82821-30760i2URGSE..USE20200712

28898PLATE, BATTERY

main28898-46020i2URGSE..USE20200712

NEW ZEALAND SPEC

main28898-46020i2URGSE..USE20200712

AUSTRALIA SPEC

28899INSULATOR, BATTERY

main28899-38060i2URGSE..USE20..RHD200712

sub28899-36040

main28899-38070i2URGSE..USE20..LHD200712

9415180801

main94151-80801

7 parts on this diagram · 1 diagram in section
