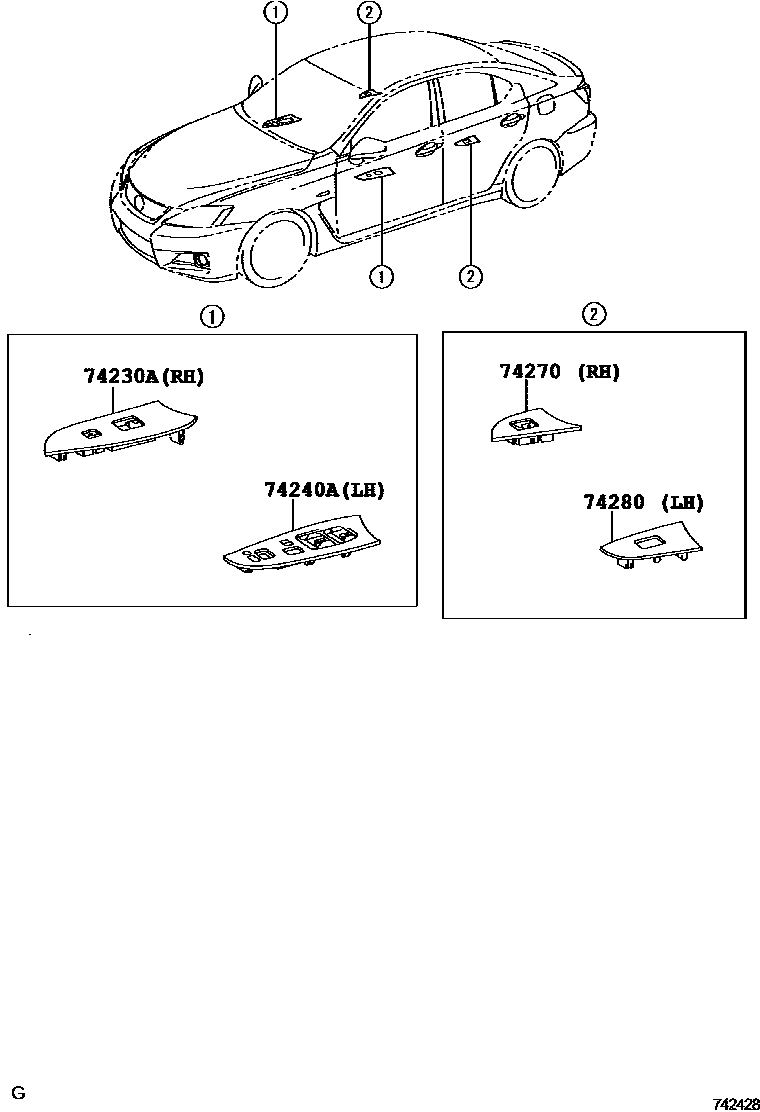

ARMREST & VISOR

74230APANEL ASSY, FRONT DOOR ARMREST BASE, RH

main74230-53320-A0i200808-201108

WHITE,TRIM2#

main74230-53340-A0i200808-201108

WHITE,TRIM2#

main74230-53400-B0i201108-201408

DARK SILVER,TRIM2#

main74230-53410-B0i201108-201408

DARK SILVER,TRIM2#

main74230-53050-A0supersedes 74230-53040-A0i200712-200808

INTERIOR PACKAGE,WHITE,TRIM2#

main74230-53070-A0supersedes 74230-53060-A0i200712-200808

INTERIOR PACKAGE,WHITE,TRIM2#

main74230-53330-A0i200808-201008

INTERIOR PACKAGE,WHITE,TRIM2#

main74230-53350-A0i200808-201008

INTERIOR PACKAGE,WHITE,TRIM2#

74240APANEL ASSY, FRONT DOOR ARMREST BASE, LH

main74240-53330-A0i200808-201108

WHITE,TRIM2#

main74240-53370-A0i200808-201108

WHITE,TRIM2#

main74240-53430-B0i201108-201408

DARK SILVER,TRIM2#

main74240-53440-B0i201108-201408

DARK SILVER,TRIM2#

main74240-53070-A0supersedes 74240-53060-A0i200712-200808

INTERIOR PACKAGE,WHITE,TRIM2#

main74240-53100-A0supersedes 74240-53080-A0i200712-200808

INTERIOR PACKAGE,WHITE,TRIM2#

main74240-53340-A0i200808-201008

INTERIOR PACKAGE,WHITE,TRIM2#

main74240-53380-A0i200808-201008

INTERIOR PACKAGE,WHITE,TRIM2#

74270PANEL ASSY, REAR DOOR ARMREST BASE, RH

main74270-53310-A0i200808-201108

WHITE,TRIM2#

main74270-53330-B0i201108-201408

DARK SILVER,TRIM2#

main74270-53040-A0supersedes 74270-53030-A0i200712-200808

INTERIOR PACKAGE,WHITE,TRIM2#

main74270-53320-A0i200808-201008

INTERIOR PACKAGE,WHITE,TRIM2#

74280PANEL ASSY, REAR DOOR ARMREST BASE, LH

main74280-53310-A0i200808-201108

WHITE,TRIM2#

main74280-53330-B0i201108-201408

DARK SILVER,TRIM2#

main74280-53030-A0supersedes 74280-53020-A0i200712-200808

INTERIOR PACKAGE,WHITE,TRIM2#

main74280-53320-A0i200808-201008

INTERIOR PACKAGE,WHITE,TRIM2#

4 parts on this diagram · 3 diagrams in section
