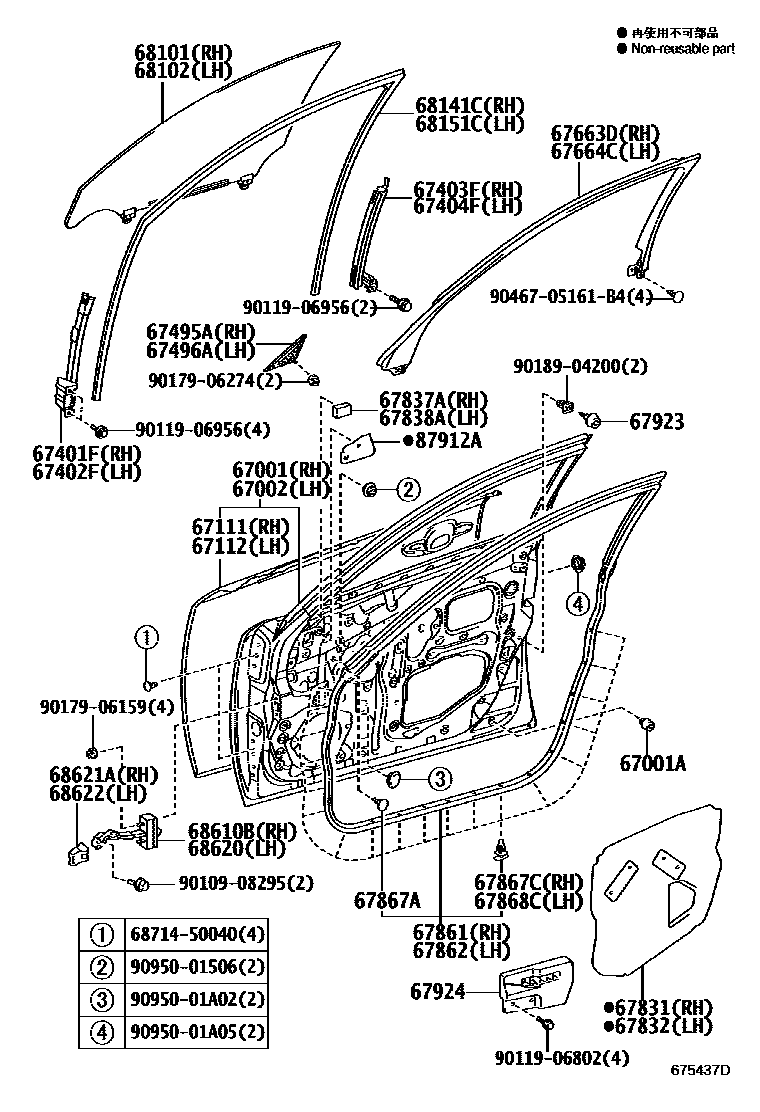

FRONT DOOR PANEL & GLASS

0001 1 0002 1

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-53040iUSE20200712-201408

67001ACUSHION, FRONT DOOR PANEL

main90541-09069×2iUSE20200712

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-53050iUSE20200712-201408

67111PANEL, FRONT DOOR, OUTER RH

main67111-53020iUSE20200712-201408

67112PANEL, FRONT DOOR, OUTER LH

main67112-53020iUSE20200712-201408

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-53010iUSE20200712

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-53010iUSE20200712

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-53020iUSE20200712

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-53020iUSE20200712

67495ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH

main67495-53010iUSE20200712

67496ACOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH

main67496-53010iUSE20200712

67663DGARNISH, DOOR FRAME, RH

main67663-53010iUSE20200712

67664CGARNISH, DOOR FRAME, LH

main67664-53010iUSE20200712

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-53040iUSE20200712

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67832-53040iUSE20200712

67837ASEAL, FRONT DOOR VENT, RH

main67837-51010iUSE20200712

67838ASEAL, FRONT DOOR VENT, LH

main67837-51010iUSE20200712

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-53030iUSE20200712

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-53030iUSE20200712

67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)

main67868-30030×2iUSE20200712

67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH

main67867-12150×19iUSE20200712

67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH

main67867-12150×19iUSE20200712

67923CUSHION, FRONT DOOR STIFFENER, NO.1

main67923-24030×2iUSE20200712-201110

main67923-48060×2iUSE20201111

67924CUSHION, FRONT DOOR STIFFENER, NO.2

main67923-53030iUSE20200712-200907

RH

main67923-53031iUSE20200908

RH

main67924-53020iUSE20200712-200907

LH

main67924-53021iUSE20200908

LH

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-53051iUSE20200712-200904

*UVCT,T=5.0,GREEN

main68101-53052iUSE20200905-201107

*UVCT,T=5.0,GREEN

main68101-53053iUSE20201108-201206

*UVCT,T=5.0,GREEN

main68101-53130iUSE20201206-201408

*UVCT,T=5.0,GREEN

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-53051iUSE20200712-200904

*UVCT,T=5.0,GREEN

main68102-53052iUSE20200905-201107

*UVCT,T=5.0,GREEN

main68102-53053iUSE20201108-201206

*UVCT,T=5.0,GREEN

main68102-53130iUSE20201206-201408

*UVCT,T=5.0,GREEN

68141CRUN, FRONT DOOR GLASS, RH

main68141-53020iUSE20200712

68151CRUN, FRONT DOOR GLASS, LH

main68151-53020iUSE20200712

68610BCHECK ASSY, FRONT DOOR, RH

main68610-53030iUSE20200712-201002

main68610-53031iUSE20201003

68620CHECK ASSY, FRONT DOOR, LH

main68620-53020iUSE20200712-201002

main68620-53021iUSE20201003

68621ACOVER, FRONT DOOR CHECK, RH

main68621-33010iUSE20200712

68622COVER, FRONT DOOR CHECK, LH

main68622-33010iUSE20200712

87912APROTECTOR, OUTER MIRROR

main87912-53010iUSE20200712

RH

main87912-53020iUSE20200712

LH

6871450040

main68714-50040

9010908295

main90109-08295

9011906802

main90119-06802

9011906956

main90119-06956

9017906159

main90179-06159

9017906274

main90179-06274

9018904200

main90189-04200

9046705161B4

main90467-05161B4

9095001506

main90950-01506

9095001A02

main90950-01A02

9095001A05

main90950-01A05

44 parts on this diagram · 2 diagrams in section
