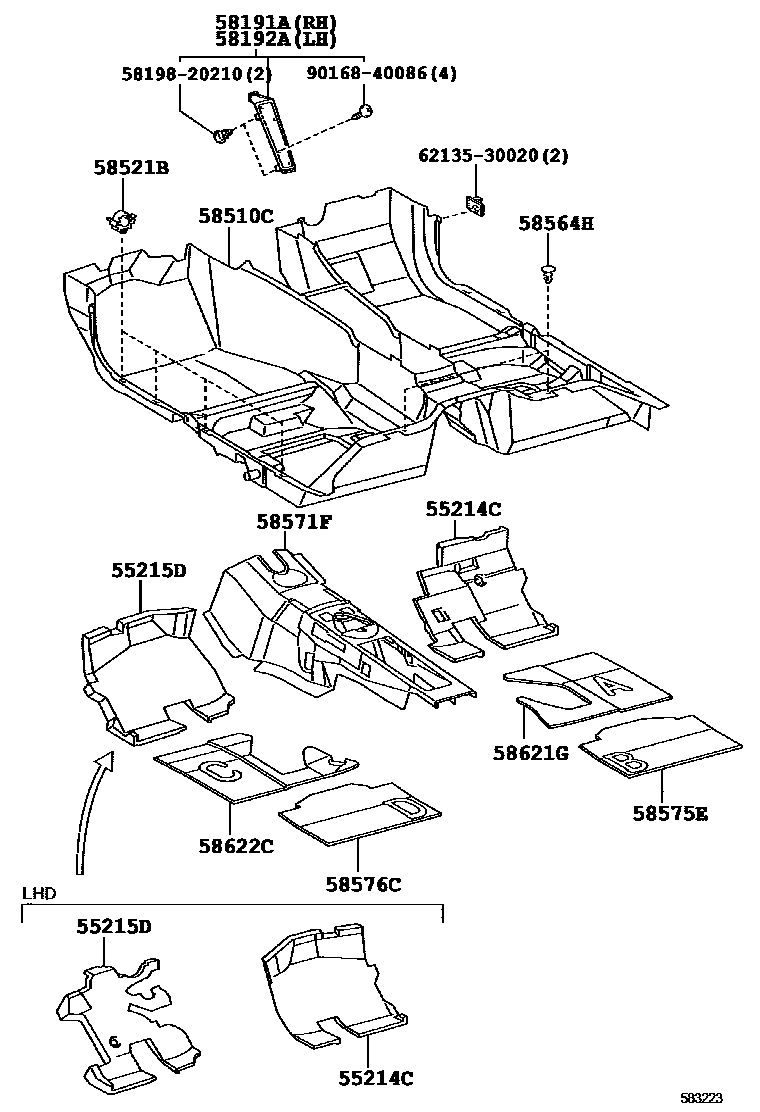

MAT & CARPET

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-53020iUSE20..RHD200712

main55214-53040iUSE20..LHD200712

55215DPAD, DASH PANEL INSULATOR, NO.3

main55215-53010iUSE20..RHD200712

main55215-53020iUSE20..LHD200712

58191AFOOTREST, FRONT FLOOR, RH

main58191-53100iUSE20..RHD200712-201111

main58191-53101iUSE20..RHD201112

58192AFOOTREST, FRONT FLOOR, LH

main58192-53060iUSE20..LHD200712-201111

main58192-53061iUSE20..LHD201112

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-53470-C0iUSE20..RHD200712-201408

BLACK,TRIM2#

main58510-53480-C0iUSE20..LHD200712-201408

BLACK,TRIM2#

58521BHOOK, FLOOR CARPET

main58521-30140×8iUSE20200712

58564HCLIP(FOR REAR FLOOR CARPET)

main90467-05164-B8×2iUSE20200712-200907

LT.GRAY

main90467-05164-C0×2iUSE20200907-201011

BLACK

58571FPAD, FRONT FLOOR, FRONT

main58571-53010iUSE20200712

58575EPAD, FRONT FLOOR, REAR NO.1

main58575-53010iUSE20200712-201305

main58575-53011iUSE20201306

58576CPAD, FRONT FLOOR, REAR NO.2

main58576-53010iUSE20200712-201305

main58576-53011iUSE20201306

58621GPAD, FRONT FLOOR SILENCER, RH

main58621-53040iUSE20200712-201305

main58621-53041iUSE20201306

58622CPAD, FRONT FLOOR SILENCER, LH

main58622-53040iUSE20200712-201305

main58622-53041iUSE20201306

5819820210CLIP, FOOTREST

main58198-20210

6213530020FRAME, REAR SIDE WINDOW

main62135-30020

9016840086

main90168-40086

15 parts on this diagram · 1 diagram in section
