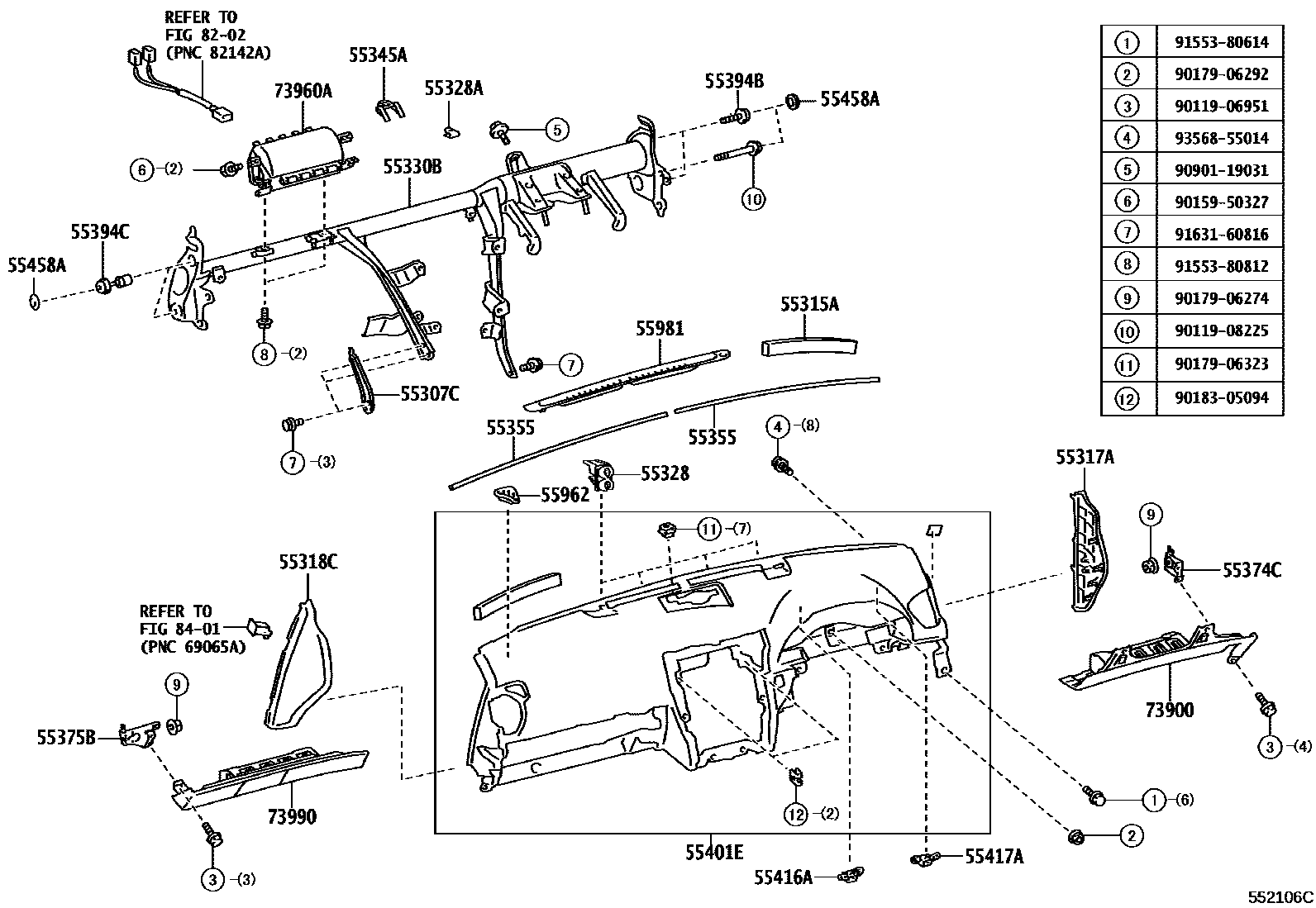

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1DRIVER SIDE 0008 1DRIVER SIDE 0009 1CENTER 0010 1CENTER 0011 1PASSENGER SIDE 0012 1PASSENGER SIDE

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55352-53040iUSE20¥870200712

55315ASPACER, INSTRUMENT PANEL, NO.1

main55315-53010iUSE20¥360200712-200801

55317APANEL, INSTRUMENT SIDE, RH

main55317-53070-C0iUSE20..RHD200712-201408

BLACK,TRIM2#

main55317-53080-C0iUSE20..LHD200712-201408

BLACK,TRIM2#

55318CPANEL, INSTRUMENT SIDE, LH

main55318-53040-C0iUSE20..LHD200712-201408

NEW ZEALAND SPEC,BLACK,TRIM2#

main55318-53040-C0iUSE20..LHD200712-201408

BLACK,TRIM2#

main55318-53040-C0iUSE20..LHD200712-201408

AUSTRALIA SPEC,BLACK,TRIM2#

main55318-53050-C0iUSE20..RHD200712-201408

BLACK,TRIM2#

55328PIN, INSTRUMENT PANEL, NO.1

main55328-30140iUSE20¥260200712

55328ASTAY, INSTRUMENT PANEL, NO.3

main55328-48110iUSE20¥130201010

main55328-50170iUSE20¥160200712-201009

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-53051iUSE20..RHD¥21,900200712-200908

main55330-53071iUSE20..LHD200712-200908

main55330-53250iUSE20..RHD¥26,200200908

main55330-53270iUSE20..LHD200908

55345ACLIP, INSTRUMENT PANEL, NO.1

main55345-30060iUSE20¥360200712

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-30060iUSE20¥1,010200712-200804

main55355-30100iUSE20¥610200804-201408

55374CBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.1

main55374-53010iUSE20..RHD¥1,150200712

main55374-53020iUSE20..LHD¥1,150200712

55375BBRACKET, INSTRUMENT PANEL LOWER MOUNTING, NO.2

main55375-53040iUSE20..RHD¥1,240200712

main55375-53050iUSE20..LHD¥1,240200712

55394BBOLT, INSTRUMENT PANEL

main55394-50010iUSE20¥200200712

55394CBOLT, INSTRUMENT PANEL

main55394-33041iUSE20¥230200808

main55394-51011iUSE20¥230200712-200807

55401EPAD SUB-ASSY, INSTRUMENT PANEL SAFETY

main55400-53903iUSE20..RHD¥73,600200712-200801

sub55400-53905¥73,600

sub55315-53010¥360

sub55355-53050¥60

sub90179-06323¥110

sub90183-05094¥90

main55400-53904iUSE20..LHD200712-200801

sub55400-53906¥73,600

sub55315-53010¥360

sub55355-53050¥60

sub90179-06323¥110

sub90183-05094¥90

main55400-53905-C0iUSE20..RHD200801

BLACK,TRIM2#

sub55400-53905¥73,600

main55400-53906-C0iUSE20..LHD200801

BLACK,TRIM2#

sub55400-53906¥73,600

sub55400-53909¥73,600

55416ARETAINER, METER HOOD, NO.1

main55416-30150iUSE20¥670200712

55417ARETAINER, METER HOOD, NO.2

main55417-30070iUSE20¥670200712

55458ACAP, INSTRUMENT PANEL SAFETY PAD

main55458-50100iUSE20¥160200712

55962NOZZLE, SIDE DEFROSTER, NO.2

main55962-53010-C0iUSE20..RHD200712-201408

BLACK,TRIM2#

main55962-53020-C0iUSE20..LHD200712-201408

BLACK,TRIM2#

55981GARNISH, DEFROSTER NOZZLE, NO.1

main55981-53010-C0iUSE20200712-201408

BLACK,TRIM2#

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-53010-C0iUSE20..RHD200712-201408

BLACK,TRIM2#

sub73900-53010¥37,400

main73900-53020-C0iUSE20..LHD200712-201408

BLACK,TRIM2#

sub73900-53020

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-53010iUSE20..RHD¥121,000200712-201309

sub73960-53011¥120,000

main73960-53011iUSE20..RHD¥120,000201310

sub73960-53012¥120,000

main73960-53020iUSE20..LHD200712-200902

sub73960-53060

main73960-53060iUSE20..LHD200903

sub73960-53190

73990AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.2

main73990-53010-C0iUSE20..RHD200712-201408

BLACK,TRIM2#

sub73990-53010¥37,400

main73990-53020-C0iUSE20..LHD200712-201408

BLACK,TRIM2#

sub73990-53020¥37,400

8202

8401

9011906951

main90119-06951¥80

9011908225

main90119-08225¥0

9015950327

main90159-50327¥70

9017906274

main90179-06274¥70

9017906292

main90179-06292¥100

9017906323

main90179-06323¥110

9018305094

main90183-05094¥90

9090119031

main90901-19031¥90

9155380614

main91553-80614¥60

9155380812

main91553-80812¥80

9163160816

main91631-60816¥160

9356855014

main93568-55014¥70

36 parts on this diagram · 12 diagrams in section
