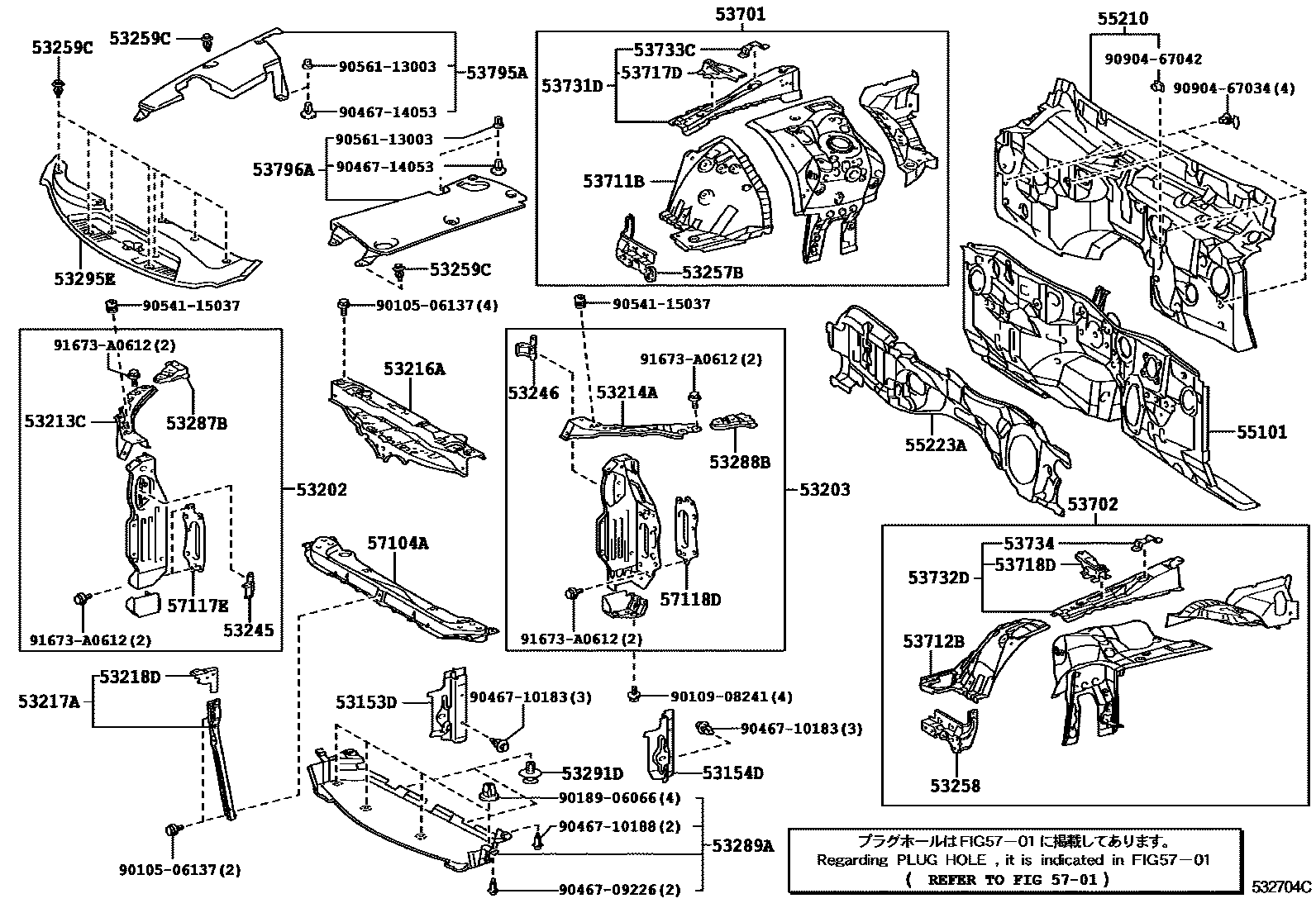

FRONT FENDER APRON & DASH PANEL
53153DGUIDE, RADIATOR GRILLE SIDE AIR, RH
53154DGUIDE, RADIATOR GRILLE SIDE AIR, LH
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53213CSUPPORT, RADIATOR, UPPER FRONT
53214ASUPPORT, RADIATOR, UPPER LH
53216ASUPPORT, RADIATOR, UPPER
53217ABRACE, HOOD LOCK SUPPORT
53218DEXTENSION, HOOD LOCK BRACE
53245BRACKET, HEADLAMP, RH
53246BRACKET, HEADLAMP, LH
53257BBRACKET, RADIATOR SUPPORT TO FRONT FENDER
53258BRACKET, FRONT END PANEL MOUNTING, LH
53259CCLIP, RADIATOR SUPPORT TO FRAME SEAL
53287BEXTENSION, RADIATOR SUPPORT, RH
53288BEXTENSION, RADIATOR SUPPORT, LH
53291DCLIP, RADIATOR SUPPORT TO FRAME
53295ESEAL, COOL AIR INTAKE DUCT
53717DGUSSET, FENDER APRON, RH
53718DGUSSET, FENDER APRON, LH
53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733CPATCH, FRONT FENDER APRON
53734PATCH, FRONT FENDER APRON, NO.4
5701
57104AMEMBER SUB-ASSY, FRONT CROSS
57117ERETAINER, FRONT BUMPER ARM, RH
57118DRETAINER, FRONT BUMPER ARM, LH
9010506137
main90105-06137
9010908241
main90109-08241
9018906066
main90189-06066
9046709226
main90467-09226
9046710183
main90467-10183
9046710188
main90467-10188
9046714053
main90467-14053
9054115037
main90541-15037
9056113003
main90561-13003
9090467034
main90904-67034
9090467042
main90904-67042
91673A0612
main91673-A0612
50 parts on this diagram · 2 diagrams in section
