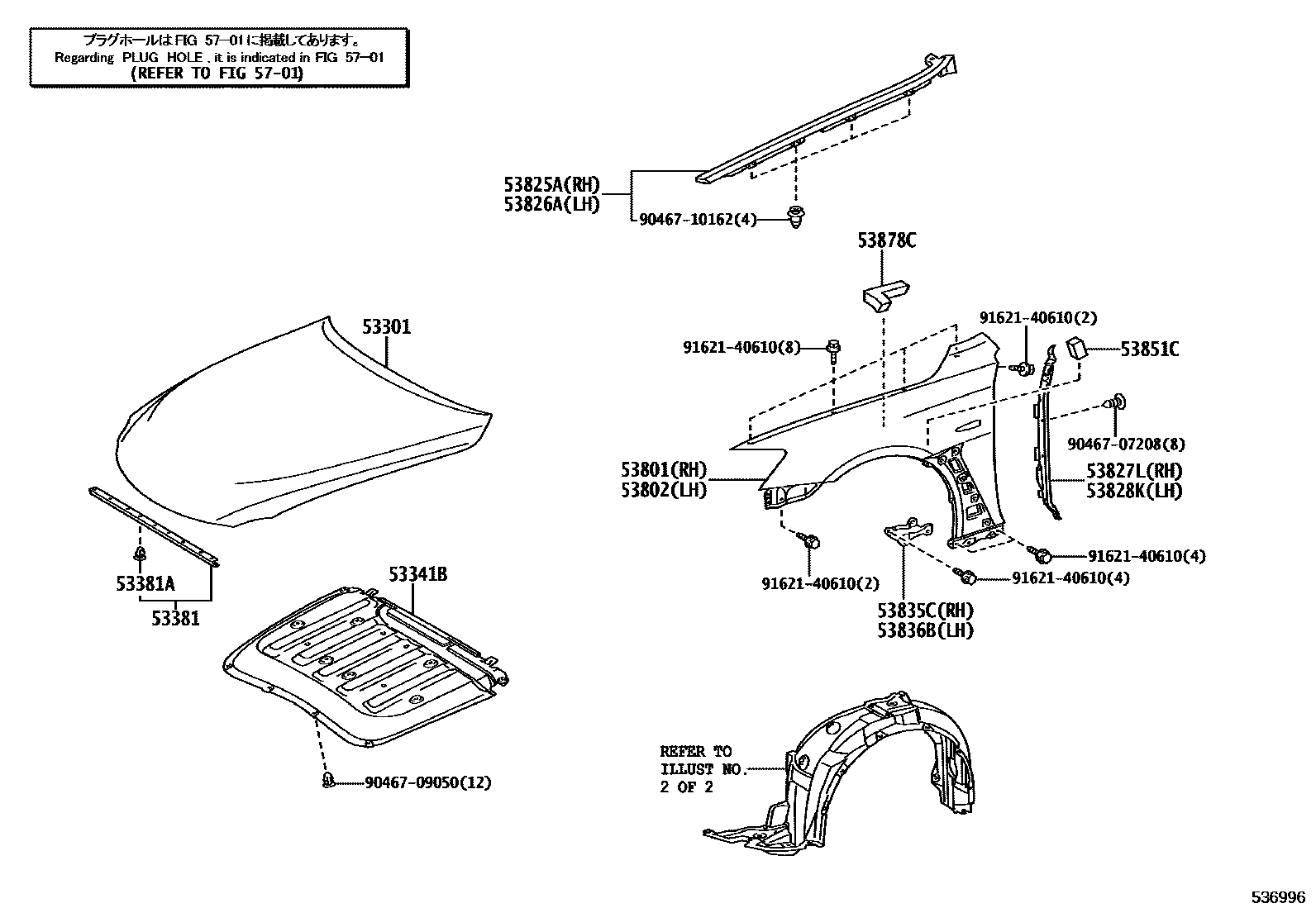

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-53070iUSE20¥116,000200712-201408

53341BINSULATOR, HOOD

main53341-53050iUSE20¥9,100200712

53381SEAL, HOOD TO RADIATOR SUPPORT

main53381-53040iUSE20¥1,540200712

53381ACLIP(FOR HOOD TO RADIATOR SUPPORT SEAL)

main90467-08011iUSE20¥100200712

53801FENDER SUB-ASSY, FRONT RH

main53801-53080iUSE20¥63,600200712

53802FENDER SUB-ASSY, FRONT LH

main53802-53080iUSE20¥63,600200712

53825APROTECTOR, FRONT FENDER, UPPER RH

main53807-53020iUSE20¥3,950200712

53826APROTECTOR, FRONT FENDER, UPPER LH

main53808-53020iUSE20¥3,950200712

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-53020iUSE20¥2,980200712

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-53020iUSE20¥2,980200712

53835CBRACKET, FRONT SIDE PANEL, RH

main53835-53010iUSE20¥900200712

53836BBRACKET, FRONT SIDE PANEL, LH

main53836-53010iUSE20¥900200712

53851CPAD, FRONT WHEEL OPENING EXTENSION, NO.1

main53855-53010iUSE20¥970200712

53878CSPACER, FRONT FENDER

main53878-53020iUSE20¥1,480200712

5701

9046707208

main90467-07208¥110

9046709050

main90467-09050¥120

9046710162

main90467-10162¥90

9162140610

main91621-40610¥70

19 parts on this diagram · 2 diagrams in section
