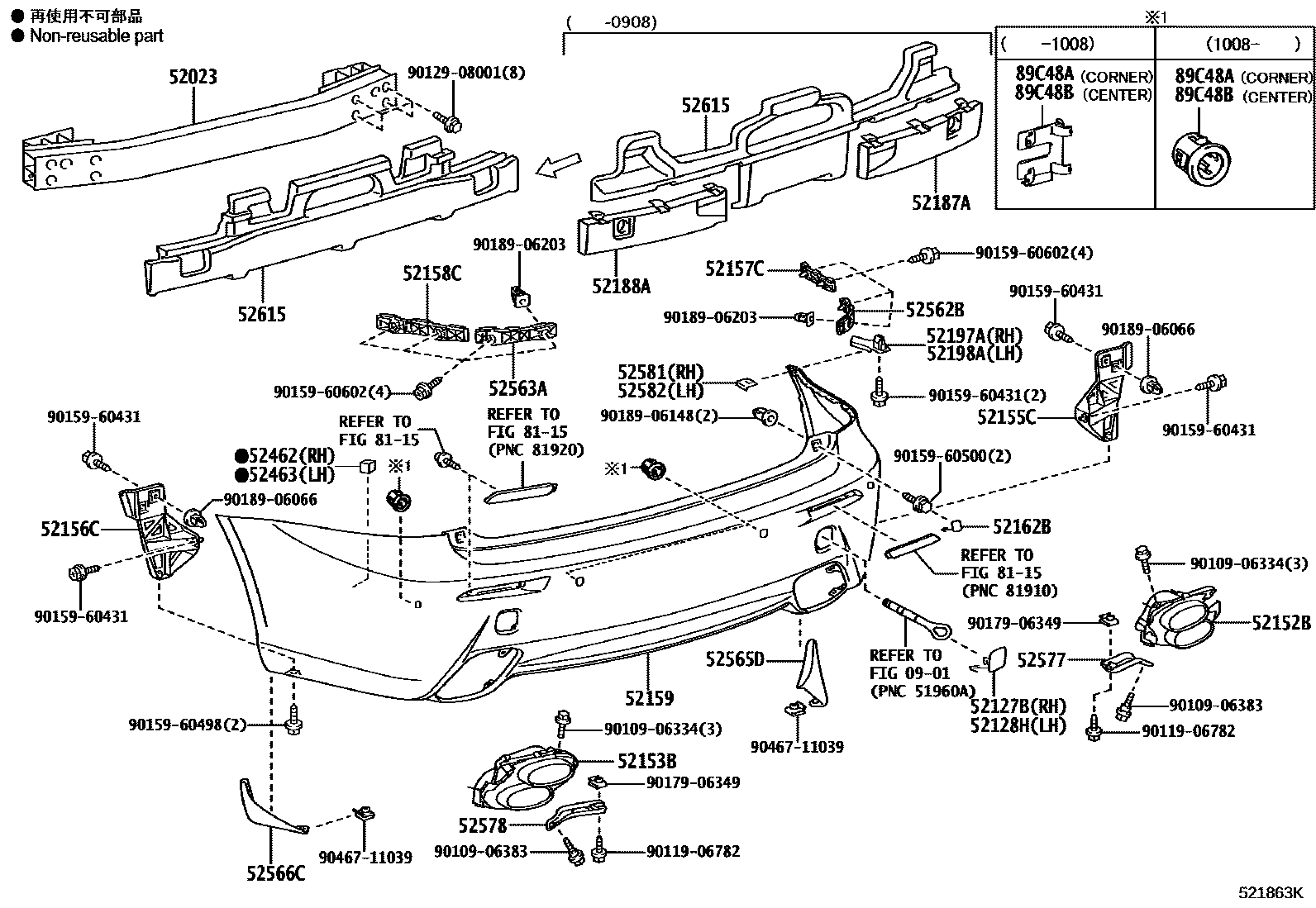

REAR BUMPER & BUMPER STAY
0901
52023REINFORCEMENT SUB-ASSY, REAR BUMPER
52127BCOVER, REAR BUMPER HOLE, RH
52128HCOVER, REAR BUMPER HOLE, LH
52152BEXTENSION, REAR BUMPER, RH
52153BEXTENSION, REAR BUMPER, LH
52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH
52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH
52157CSUPPORT, REAR BUMPER SIDE, NO.2 RH
52158CSUPPORT, REAR BUMPER SIDE, NO.2 LH
52159COVER, REAR BUMPER
PAINT REQ.
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
PAINT REQ.,CLEARANCE & BACK SONAR-WITH
52162BPLATE, REAR BUMPER, NO.1
52187AREINFORCEMENT, REAR BUMPER ARM, RH
52188AREINFORCEMENT, REAR BUMPER ARM, LH
52197ABRACKET, REAR BUMPER SEAL, RH
52198ABRACKET, REAR BUMPER SEAL, LH
52462PAD, REAR BUMPER, RH
52463PAD, REAR BUMPER, LH
52562BRETAINER, REAR BUMPER, UPPER RH
52563ARETAINER, REAR BUMPER, UPPER LH
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52577RETAINER, REAR BUMPER SIDE, NO.2 RH
52578RETAINER, REAR BUMPER SIDE, NO.2 LH
52581PROTECTOR, REAR BUMPER, RH
52582PROTECTOR, REAR BUMPER, LH
8115
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083
CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9
CLEARANCE & BACK SONAR-WITH,SONIC SILVER,1J2
CLEARANCE & BACK SONAR-WITH,BLACK,212
CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0
CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2
CLEARANCE & BACK SONAR-WITH,BLACK,212
CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083
CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9
CLEARANCE & BACK SONAR-WITH,SONIC SILVER,1J2
CLEARANCE & BACK SONAR-WITH,BLACK,212
CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2
CLEARANCE & BACK SONAR-WITH
CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077
CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0
CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2
CLEARANCE & BACK SONAR-WITH,BLACK,212
CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217
CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1
CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1
9010906334
main90109-06334
9010906383
main90109-06383
9011906782
main90119-06782
9012908001
main90129-08001
9015960431
main90159-60431
9015960498
main90159-60498
9015960500
main90159-60500
9015960602
main90159-60602
9017906349
main90179-06349
9018906066
main90189-06066
9018906148
main90189-06148
9018906203
main90189-06203
9046711039
main90467-11039
43 parts on this diagram · 1 diagram in section
