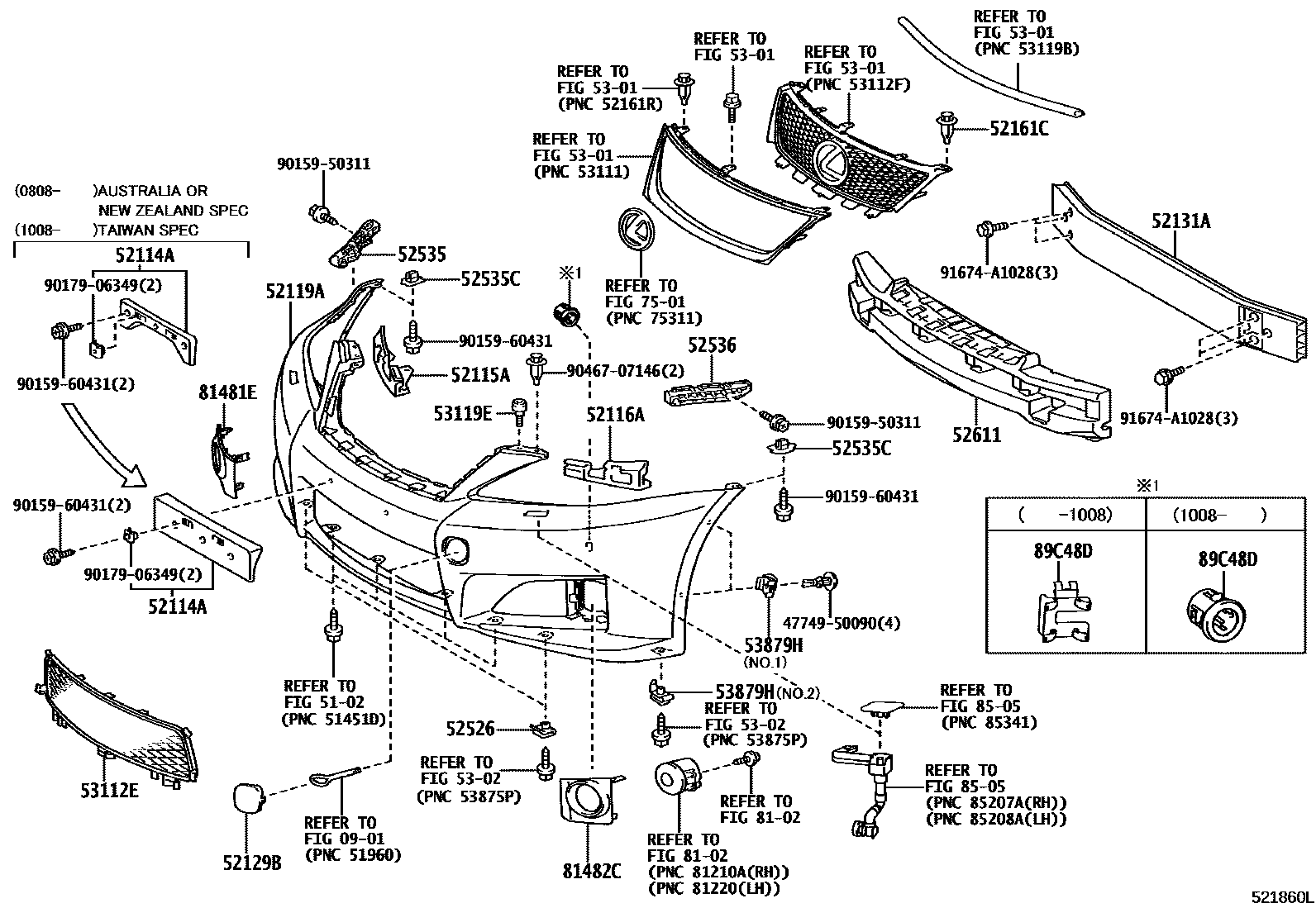

FRONT BUMPER & BUMPER STAY

0901

5102

52114ABRACKET, FRONT BUMPER EXTENSION MOUNTING

main52114-53090iUSE20200712

main52114-53100iUSE20..RHD200808-201008

NEW ZEALAND SPEC

52115ASUPPORT, FRONT BUMPER SIDE, RH

main52115-53040iUSE20200712-201008

main52115-53041iUSE20201008-201010

main52115-53042iUSE20201011-201408

52116ASUPPORT, FRONT BUMPER SIDE, LH

main52116-53040iUSE20200712-201008

main52116-53041iUSE20201008-201010

main52116-53042iUSE20201011-201408

52119ACOVER, FRONT BUMPER

main52119-53943supersedes 52119-53972iUSE20200712-200906

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52119-53956iUSE20..RHD200808-200906

PAINT REQ.,NEW ZEALAND SPEC

main52119-53957iUSE20..RHD200808-200906

PAINT REQ.,AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH

main52119-53973iUSE20200906-201008

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52119-53974iUSE20..RHD200906-201008

PAINT REQ.,NEW ZEALAND SPEC

main52119-53975iUSE20..RHD200906-201008

PAINT REQ.,AUSTRALIA SPEC&CLEARANCE & BACK SONAR-WITH

main52119-5A940iUSE20201008-201408

PAINT REQ.,CLEARANCE & BACK SONAR-WITH

main52119-5A941iUSE20..LHD201008-201408

PAINT REQ.,TAIWAN SPEC&CLEARANCE & BACK SONAR-WITH

52129BCOVER, FRONT BUMPER, LOWER

main52129-53903iUSE20200712-201408

52131AREINFORCEMENT, FRONT BUMPER

main52131-30260iUSE20200712

52161CPIECE, FRONT BUMPER

main52161-16010×2iUSE20200712-201408

sub52161-0K040

52526RETAINER, FRONT BUMPER, LOWER SIDE

main52526-53020×2iUSE20200712-201408

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-53020iUSE20200712

52535CRETAINER, FRONT BUMPER SIDE

main52535-50060×2iUSE20200712

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-53020iUSE20200712

52611ABSORBER, FRONT BUMPER ENERGY

main52611-53080iUSE20200712

5301

5302

53112EGRILLE, RADIATOR, LOWER NO.1

main53112-53020iUSE20200712

NO PAINT REQ.

53119EPROTECTOR, RADIATOR GRILLE

main53119-53021×2iUSE20200712

53879HRETAINER, FRONT FENDER LINER

main53879-17020×2iUSE20200712-201408

NO.2

main53879-50020×4iUSE20200712-201408

NO.1

7501

8102

81481ECOVER, FOG LAMP, RH

main81481-53010iUSE20200712-201408

81482CCOVER, FOG LAMP, LH

main81482-53010iUSE20200712-201408

8505

89C48DRETAINER, ULTRASONIC SENSOR, FRONT CORNER

main89348-30030-A0×2iUSE20201108-201208

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89348-30030-A5×2iUSE20201208-201408

CLEARANCE & BACK SONAR-WITH,WHITE NOVA GF.,083

main89348-30030-B0×2iUSE20201108-201408

CLEARANCE & BACK SONAR-WITH,MERCURY GRAY MC.,1H9

main89348-30030-B1×2iUSE20201208-201408

CLEARANCE & BACK SONAR-WITH,SONIC SILVER,1J2

main89348-30030-C0×2iUSE20201108-201408

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89348-30030-C2×2iUSE20201109-201408

CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89348-30030-D2×2iUSE20201108-201408

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89348-30030-J6×2iUSE20201109-201408

CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1

main89348-30030-P1×2iUSE20201109-201208

CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2

main89348-44010×2iUSE20200712-201008

CLEARANCE & BACK SONAR-WITH

main89348-64020-A1×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,WHITE PEARL CS.,077

main89348-64020-B6×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,DK.GRAY MC.,1G0

main89348-64020-B7×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,PREMIUM SILVER,1F2

main89348-64020-C1×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,BLACK,212

main89348-64020-C4×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,STARLIGHT BLACK GF.,217

main89348-64020-D0×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,RED MC.CS.,3R1

main89348-64020-J1×2iUSE20201008-201107

CLEARANCE & BACK SONAR-WITH,BLUE ME.,8U1

4774950090CLIP, PIN HOLD

main47749-50090

9015950311

main90159-50311

9015960431

main90159-60431

9017906349

main90179-06349

9046707146

main90467-07146

91674A1028

main91674-A1028

31 parts on this diagram · 1 diagram in section
