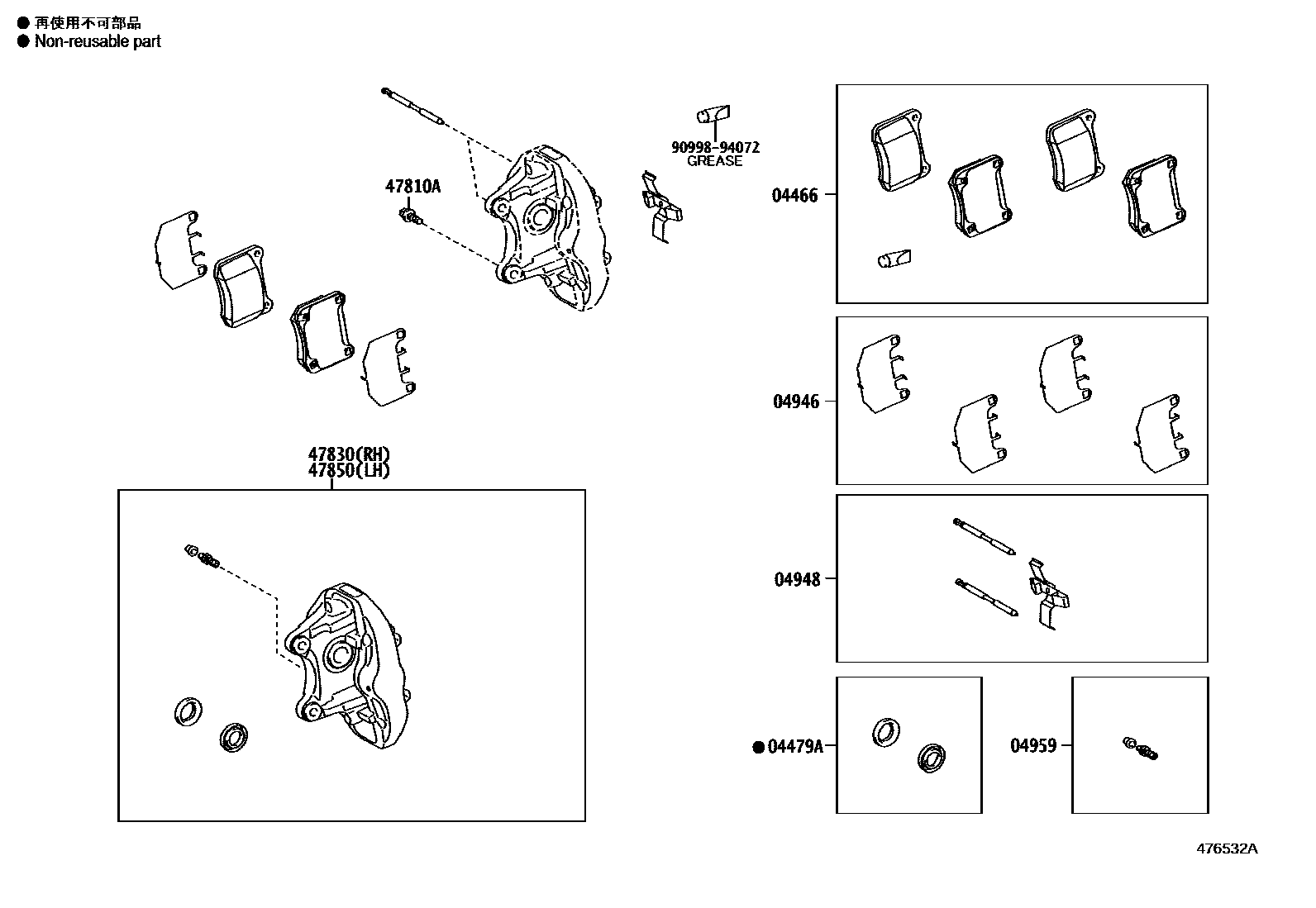

REAR DISC BRAKE CALIPER & DUST COVER
04466PAD KIT, DISC BRAKE, REAR
MARK JURID 655
04479ACYLINDER KIT, DISC BRAKE, REAR
04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)
04948FITTING KIT, DISC BRAKE, REAR
04959BLEEDER KIT, DISC BRAKE, REAR
47810ABOLT, HEXAGON(FOR REAR CALIPER)
47830CYLINDER ASSY, DISC BRAKE, REAR RH
47850CYLINDER ASSY, DISC BRAKE, REAR LH
9099894072
main90998-94072
9 parts on this diagram · 1 diagram in section
