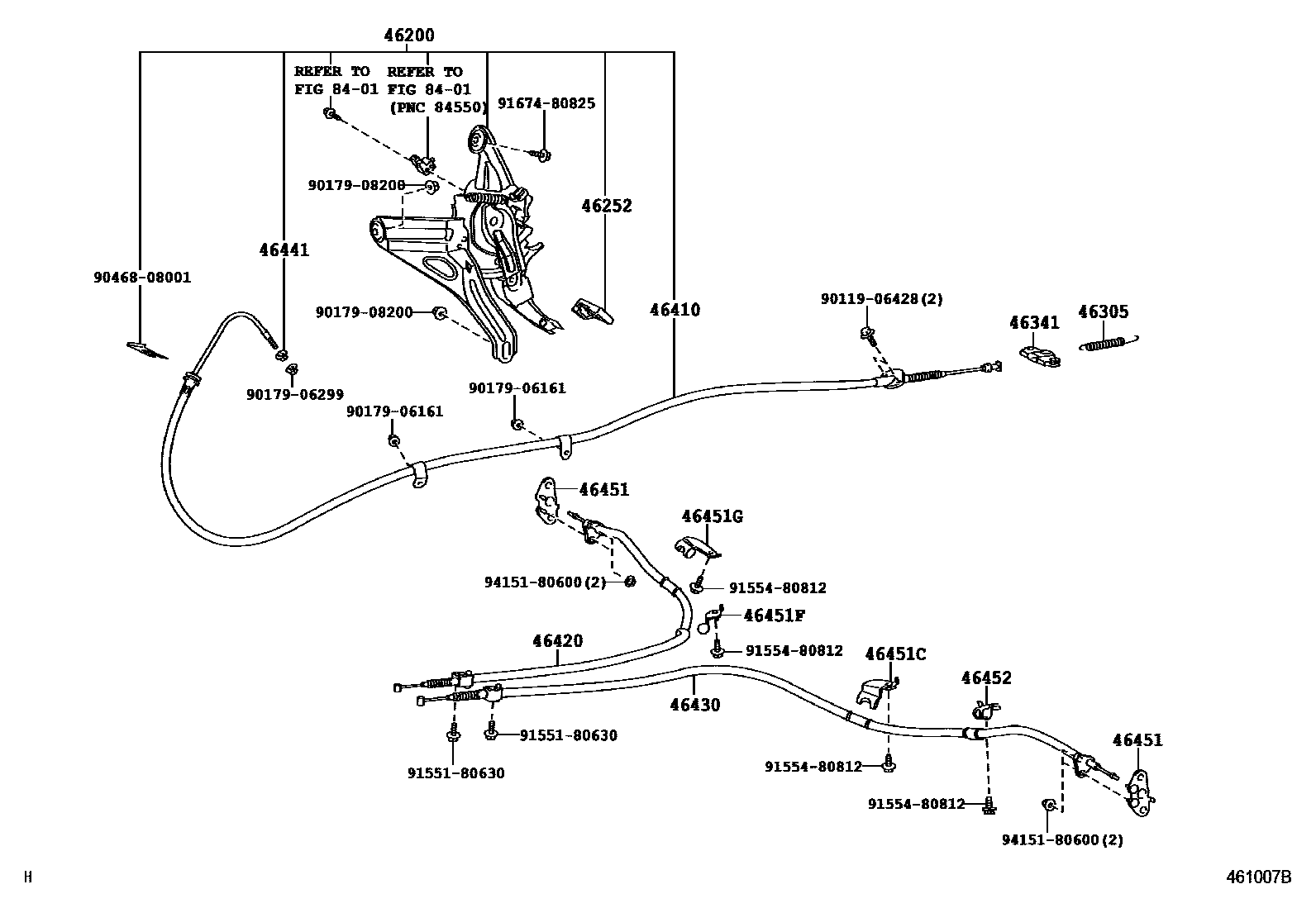

PARKING BRAKE & CABLE

0001 1 0002 1 0003 1

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-53010iUSE20..RHD200712-201408

main46200-53020iUSE20..LHD200712-201304

main46200-53060iUSE20..LHD201305-201408

46252PAD, PARKING PEDAL

main46252-22010iUSE20200712-201404

main46252-47010iUSE20201405-201408

46305SPRING, PARKING BRAKE RETURN W/DAMPER

main46305-53010iUSE20200712

46341EQUALIZER, PARKING BRAKE

main46341-22060iUSE20200712

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-53030iUSE20..RHD200712

main46410-53040iUSE20..LHD200712

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-53030iUSE20200712-201007

sub46420-53031

sub46601-30231

main46420-53031iUSE20201007

46430CABLE ASSY, PARKING BRAKE, NO.3

main46420-53020iUSE20200712-201007

sub46420-53021

sub46601-30231

sub46602-30231

main46420-53021iUSE20201007

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iUSE20200712

46451BRACKET, CABLE SUPPORT

main46451-50050iUSE20200712-201408

46451CBRACKET, PARKING BRAKE CABLE SUPPORT, NO.1

main46451-30180iUSE20200712

46451FBRACKET, CABLE SUPPORT

main46451-53010iUSE20200712

46451GBRACKET, CABLE SUPPORT

main46451-30190iUSE20200712

46452BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2

main46451-30200iUSE20200712

8401

9011906428

main90119-06428

9017906161

main90179-06161

9017906299

main90179-06299

9017908200

main90179-08200

9046808001

main90468-08001

9155180630

main91551-80630

9155480812

main91554-80812

9167480825

main91674-80825

9415180600

main94151-80600

23 parts on this diagram · 3 diagrams in section
