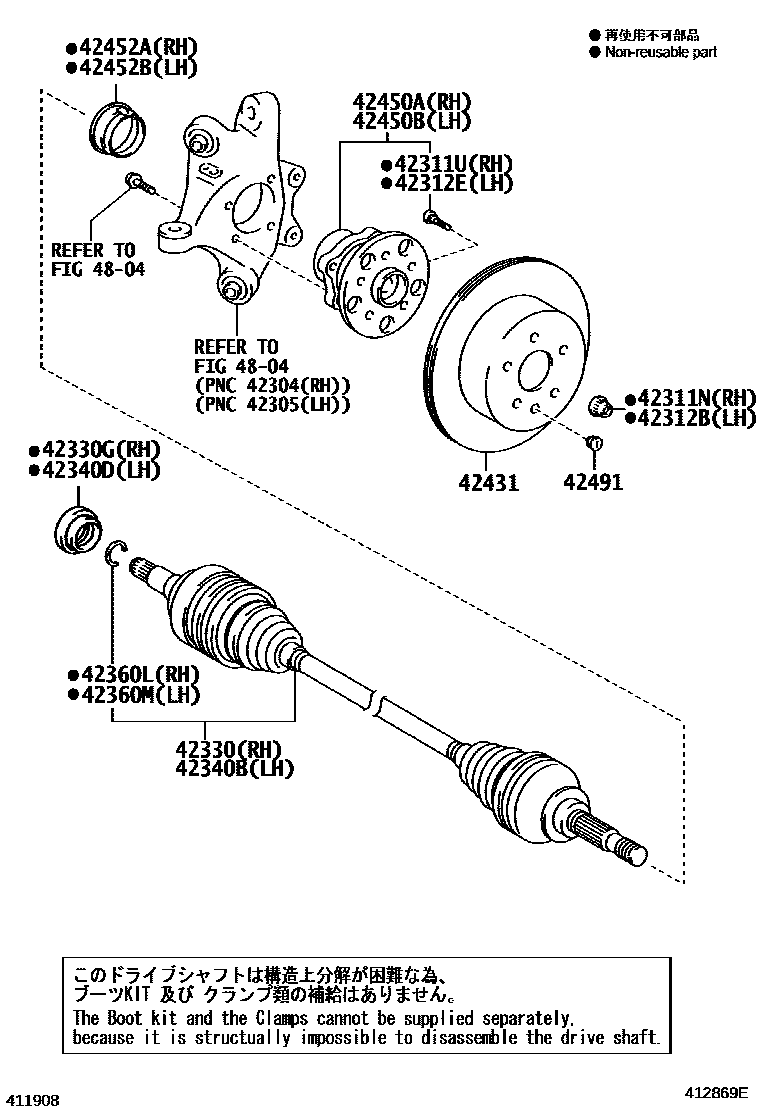

REAR AXLE SHAFT & HUB

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-26001iUSE20¥260200712

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02070iUSE20¥390200712

sub90942-02049¥240

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-26001iUSE20¥260200712

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02070iUSE20¥390200712

sub90942-02049¥240

42330SHAFT ASSY, REAR DRIVE, RH

main42330-30160iUSE20¥52,700200712

42330GOIL SEAL, REAR DRIVE SHAFT, RH

main90311-47018iUSE20¥1,140200712-201408

42340BSHAFT ASSY, REAR DRIVE, LH

main42340-30160iUSE20¥51,400200712

42340DOIL SEAL, REAR DRIVE SHAFT, LH

main90311-47019iUSE20¥1,140200712-201408

42360LRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT RH)

main90521-34003iUSE20¥110200712

42360MRING, SHAFT SNAP (FOR REAR DRIVE SHAFT INBOARD JOINT LH)

main90521-34003iUSE20¥110200712

42431DISC, REAR

main42431-0W030iUSE20¥112,000200712-201408

42450AHUB & BEARING ASSY, REAR AXLE, RH

main42410-30020iUSE20¥19,000200712

sub42410-30021¥13,100

42450BHUB & BEARING ASSY, REAR AXLE, LH

main42410-30020iUSE20¥19,000200712

sub42410-30021¥13,100

42452ADEFLECTER, REAR WHEEL BEARING DUST, NO.2 RH

main42451-30020iUSE20¥1,060200712

42452BDEFLECTER, REAR WHEEL BEARING DUST, NO.2 LH

main42451-30020iUSE20¥1,060200712

42491PLUG, SHOE ADJUSTING HOLE (FOR PARKING BRAKE)

main47491-50010iUSE20¥60200712-201408

4804

17 parts on this diagram · 1 diagram in section
