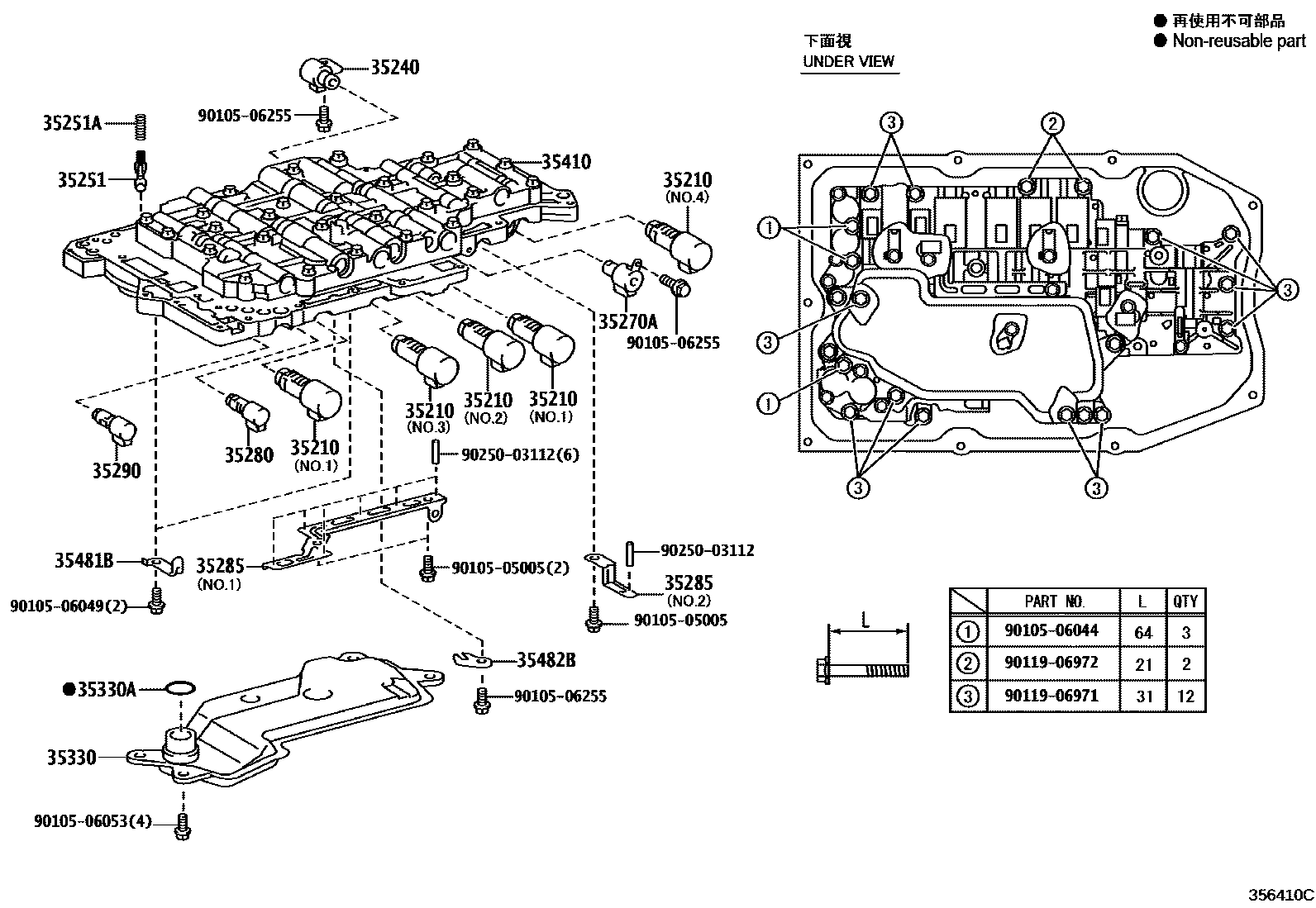

VALVE BODY & OIL STRAINER (ATM)

0001 1AA80E 0002 1AA80E

35210SOLENOID ASSY, CLUTCH CONTROL, NO.1

main35210-50040iUSE20¥6,300200712

NO.1

main35210-50050iUSE20¥6,300200712

NO.2

main35210-50060iUSE20¥6,300200712

NO.3

main35210-50070iUSE20¥6,300200712

NO.4

35240SOLENOID ASSY, AUTOMATIC TRANSMISSION 3WAY

main35240-50090iUSE20¥7,000200712

35251BODY, CHECK BALL

main35251-30020iUSE20¥1,020200712

35251ASPRING, COMPRESSION (FOR CHECK BALL BODY)

main90501-03005iUSE20¥90200712

35270ASOLENOID ASSY, TRANSMISSION 3WAY LOCK UP

main35270-50020iUSE20¥7,000200712

35280SOLENOID ASSY, LOCK UP CONTROL

main35280-50030iUSE20¥7,000200712

35285PLATE, SOLENOID LOCK

main35285-50040iUSE20¥320200712

NO.1

main35285-50050iUSE20¥80200712

NO.2

35290SOLENOID ASSY, LINE PRESSURE CONTROL

main35290-50020iUSE20¥7,000200712

35330STRAINER ASSY, VALVE BODY OIL

main35330-50030iUSE20¥3,060200712

35330ARING, O (FOR OIL STRAINER)

main90301-31014iUSE20¥140200712

35410BODY ASSY, TRANSMISSION VALVE

main35410-50130iUSE20¥96,200200712

35481BCLAMP, VALVE BODY WIRE HARNESS

main35481-50050iUSE20¥220200712

35482BCLAMP, TEMPERATURE SENSOR

main35482-50020iUSE20¥1,000200712

9010505005

main90105-05005¥70

9010506044

main90105-06044¥90

9010506049

main90105-06049¥70

9010506053

main90105-06053¥70

9010506255

main90105-06255¥60

9011906971

main90119-06971¥60

9011906972

main90119-06972¥60

9025003112

main90250-03112¥70

21 parts on this diagram · 2 diagrams in section
