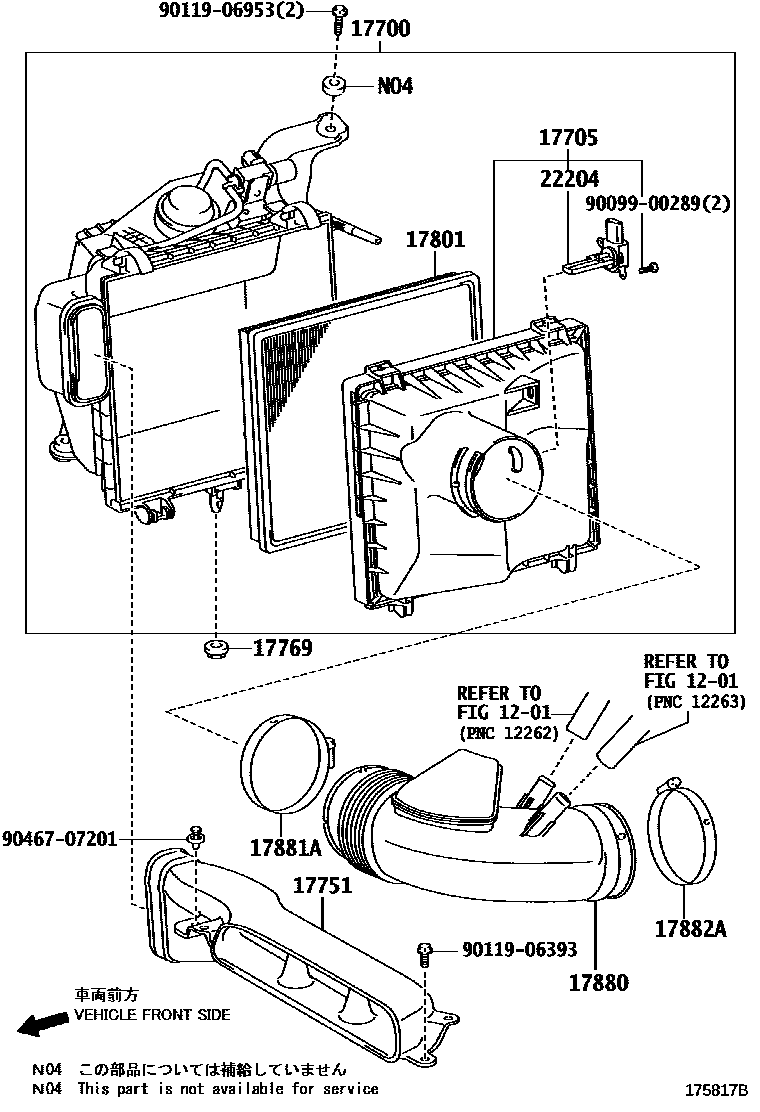

AIR CLEANER

1201

17700CLEANER ASSY, AIR

main17700-38160i2URGSE..USE20200712-201204

sub17700-38161

main17700-38161i2URGSE..USE20201205

17705CAP SUB-ASSY, AIR CLEANER

main17705-38120i2URGSE..USE20200712

17751INLET, AIR CLEANER, NO.1

main17751-38030i2URGSE..USE20200712

17769SUPPORT, AIR CLEANER

main17769-31020i2URGSE..USE20200712-201105

main17769-31030i2URGSE..USE20201106

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-38020i2URGSE..USE20200712-201204

sub17801-38021

main17801-38021i2URGSE..USE20201205-201408

17880HOSE ASSY, AIR CLEANER

main17880-38020i2URGSE..USE20200712

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main17891-38030i2URGSE..USE20200904

main90460-95005i2URGSE..USE20200712-200904

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-95005i2URGSE..USE20200712

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-31020i2URGSE..USE20200712

9009900289

main90099-00289

9011906393

main90119-06393

9011906953

main90119-06953

9046707201

main90467-07201

14 parts on this diagram · 1 diagram in section
