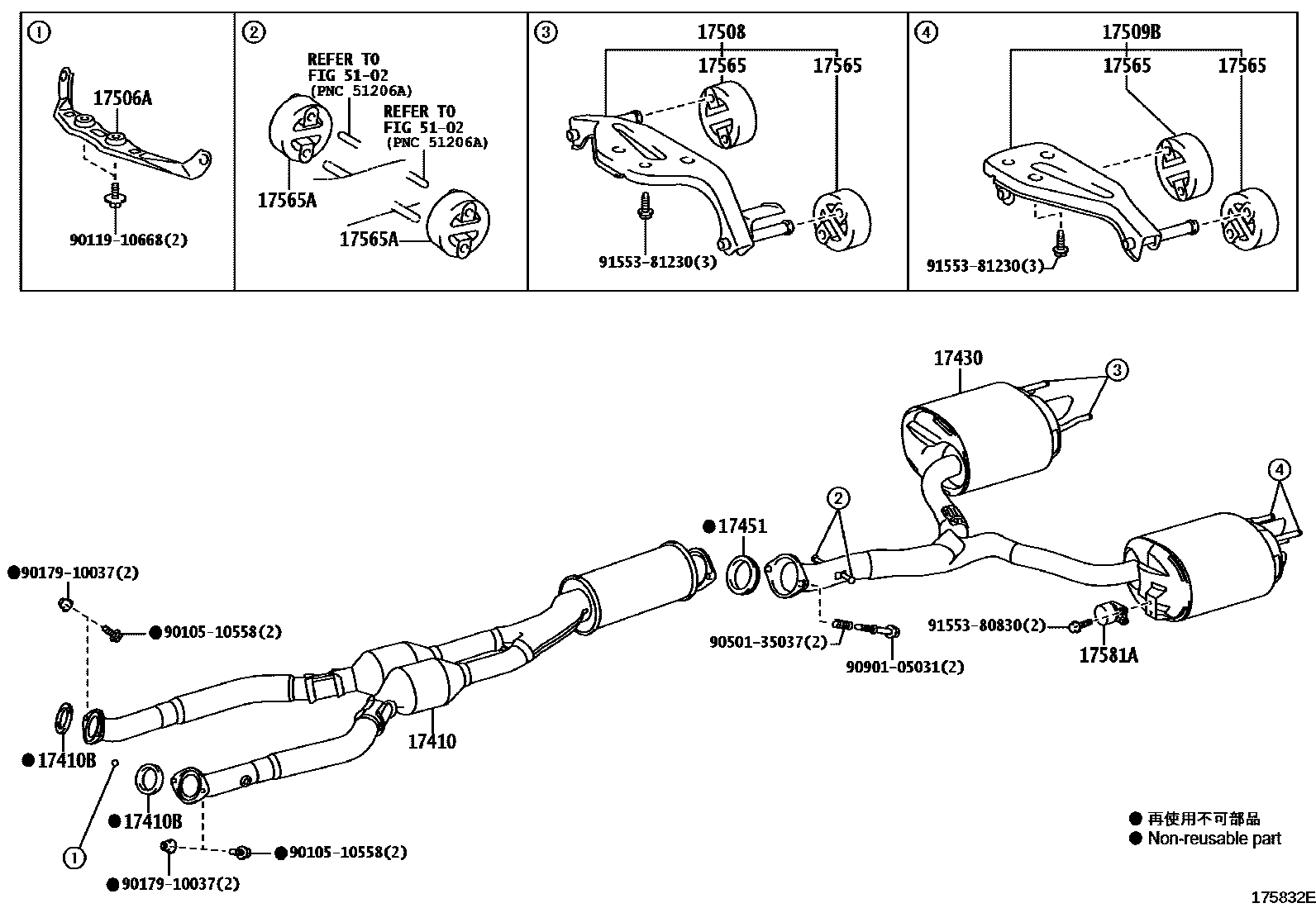

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-38260i2URGSE..USE20200712

*114=TOYOTA/PA1/Y

17410BGASKET, EXHAUST PIPE

main90917-06078i2URGSE..USE20200712

17430PIPE ASSY, EXHAUST, TAIL

main17430-38520i2URGSE..USE20200712

17451GASKET, EXHAUST PIPE

main17451-22050i2URGSE..USE20200712

17506ABRACKET SUB-ASSY, EXHAUST PIPE NO.1 SUPPORT

main17506-38140i2URGSE..USE20200712

17508SUPPORT SUB-ASSY, EXHAUST PIPE, NO.3

main17508-38110i2URGSE..USE20200712

17509BSUPPORT, EXHAUST PIPE NO.4

main17509-38040i2URGSE..USE20200712

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-28010i2URGSE..USE20200712

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010i2URGSE..USE20200712

17581ADAMPER, EXHAUST PIPE

main17581-46140i2URGSE..USE20200712

5102

9010510558

main90105-10558

9011910668

main90119-10668

9017910037

main90179-10037

9050135037

main90501-35037

9090105031

main90901-05031

9155380830

main91553-80830

9155381230

main91553-81230

18 parts on this diagram · 1 diagram in section
