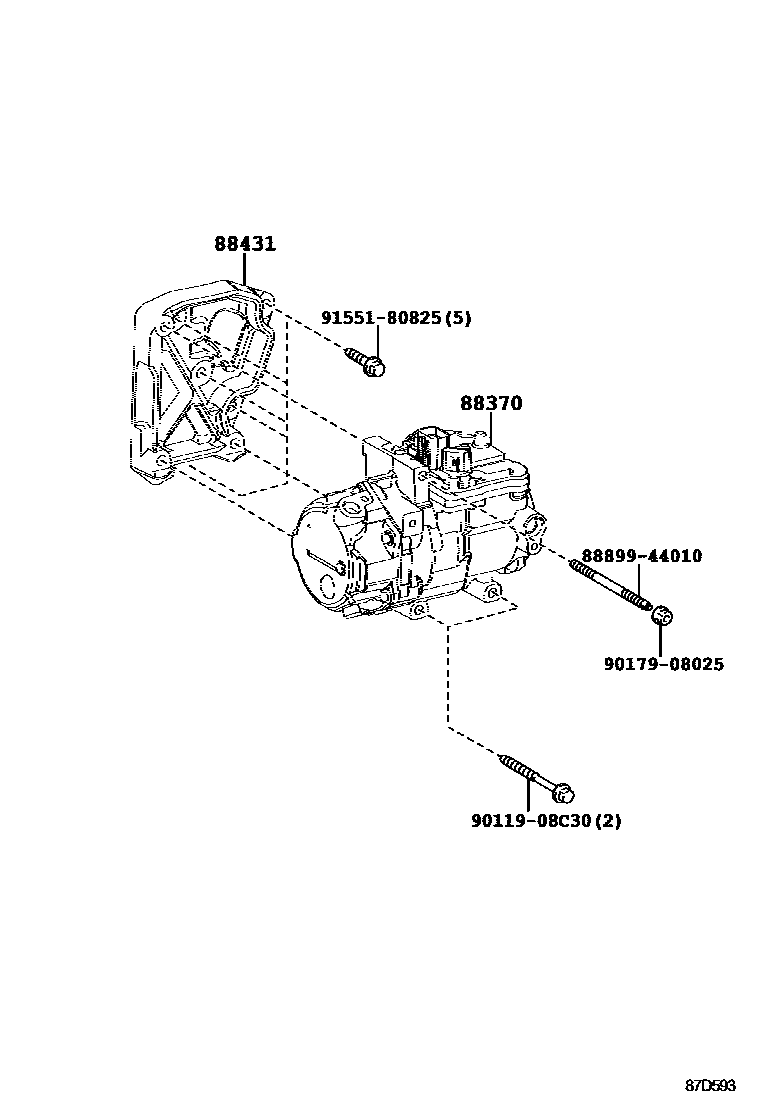

HEATING & AIR CONDITIONING - COMPRESSOR

0001 1 0002 1 0003 1

88370COMPRESSOR ASSY, W/MOTOR

main88370-33020iAVE30201304-201610

88431BRACKET, COMPRESSOR MOUNTING, NO.1

main12502-36031iASE30..RHD¥4,760201508-201804

main88431-30010iAVE30201304-201610

8889944010COVER, EVAPORATOR

main88899-44010

9011908C30

main90119-08C30¥210

9017908025

main90179-08025¥80

9155180825

main91551-80825¥80

6 parts on this diagram · 3 diagrams in section
