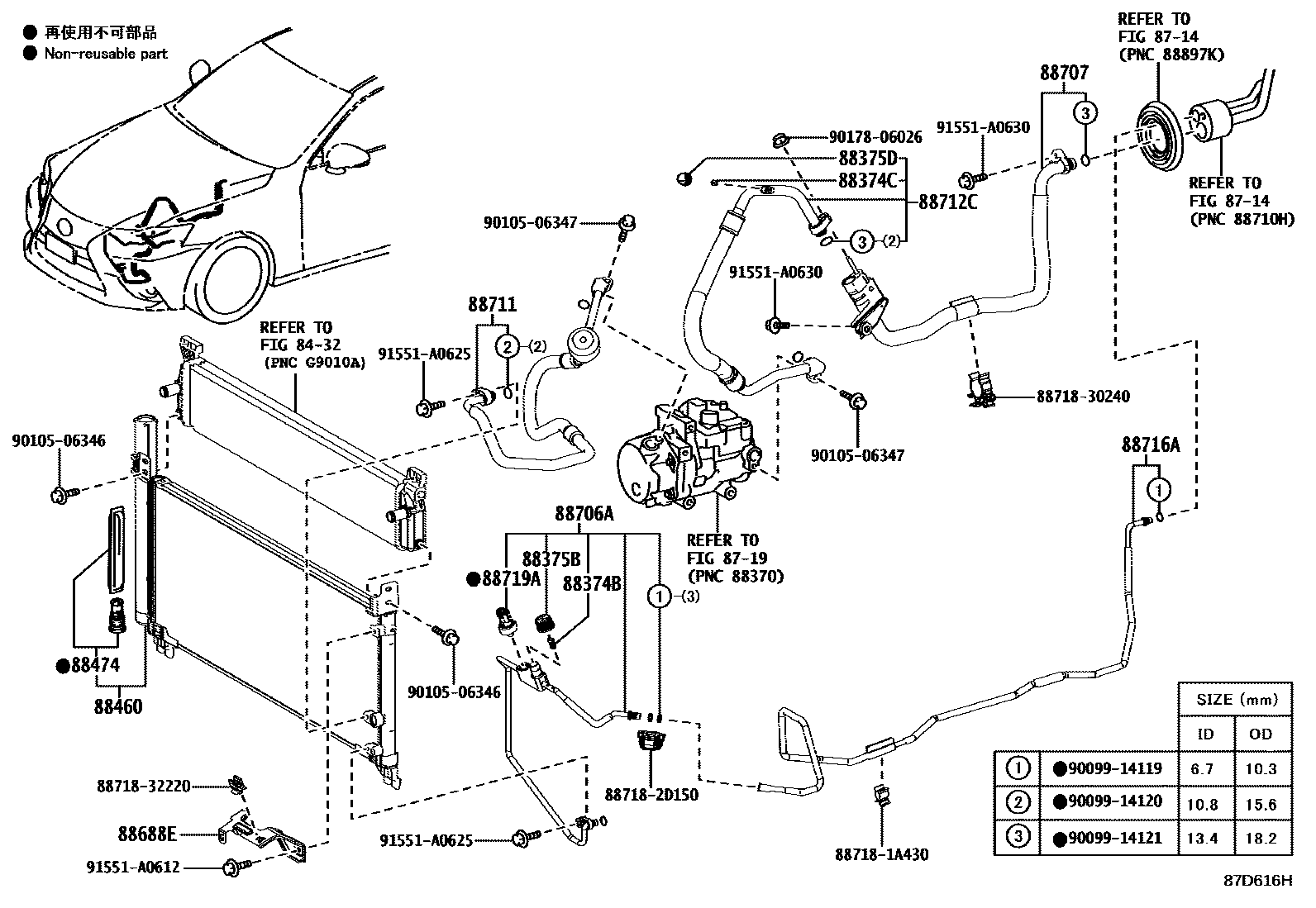

HEATING & AIR CONDITIONING - COOLER PIPING

0001 1 0002 1 0003 1

8432

8714

8719

88374BVALVE, SERVICE, NO.1

main88374-30010iAVE30,GSE30201304-201804

88374CVALVE, SERVICE, NO.2

main88374-30010iAVE30,GSE30201304-201804

88375BCAP, SERVICE VALVE, NO.1

main88375-30280iAVE30,GSE30201304-201508

main88375-30320iASE30..RHD201508-201805

88375DCAP, SERVICE VALVE, NO.2

main88375-30290iAVE30,GSE30201304-201508

main88375-30310iASE30,AVE30201508-201805

88460CONDENSER ASSY, COOLER

main88460-53080iGSE30¥48,600201304-201508

main88460-53100iAVE30¥27,100201304-201610

main88460-53140iASE30..LHD¥30,600201805

main88460-53160iASE30..LHD¥33,600201508-201805

88474DRYER, COOLER

main88474-12010iGSE30¥0201304-201804

main88474-47020iAVE30¥0201304-201610

88688EBRACKET, COOLER REFRIGERANT HOSE, NO.1

main88688-3F020iAVE30,GSE30201304-201610

main88688-53090iASE30201508-201804

88706ATUBE SUB-ASSY, LIQUID, A

main88706-53140iGSE30¥17,900201304-201508

main88706-53160iAVE30¥11,800201304-201508

main88706-53170iAVE30¥12,000201508-201610

main88706-53180iASE30..LHD¥11,800201805

main88706-53190iASE30..LHD¥11,800201508-201805

88707PIPE SUB-ASSY, SUCTION

main88707-53110iGSE30..RHD¥12,500201304-201508

main88707-53120iAVE30¥12,200201304-201610

main88707-53130iGSE30..LHD201304-201508

main88707-53140iASE30..LHD¥9,100201805

main88707-53150iASE30..LHD201508-201805

88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1

main88711-3A740iGSE30¥11,000201304-201508

main88711-3A750iAVE30¥11,300201304-201610

sub88711-3A751¥10,200

main88711-53140iASE30..RHD¥9,100201508-201804

sub88711-53141

88712CHOSE, SUCTION

main88712-30360iGSE30¥14,000201304-201508

main88712-3F070iAVE30¥11,700201304-201508

main88712-53220iAVE30¥10,600201508-201610

sub88712-53221¥9,600

main88712-53230iASE30..RHD¥10,700201508-201804

sub88712-53231

88716APIPE, COOLER REFRIGERANT LIQUID, A

main88716-53080iGSE30¥8,000201304-201508

main88716-53090iAVE30¥8,000201304-201610

main88716-53160iASE30..LHD¥6,600201508-201804

88719ASENSOR, AIR CONDITIONER PRESSURE

main88719-33020iASE30..RHD¥0201304-201804

887181A430PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-1A430

887182D150PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-2D150

8871830240PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-30240

8871832220PIPE, COOLER REFRIGERANT SUCTION, NO.2

main88718-32220

9009914119

main90099-14119

9009914120

main90099-14120¥0

9009914121

main90099-14121

9010506346

main90105-06346

9010506347

main90105-06347¥60

9017806026

main90178-06026¥80

91551A0612

main91551-A0612¥60

91551A0625

main91551-A0625¥60

91551A0630

main91551-A0630¥60

29 parts on this diagram · 3 diagrams in section
