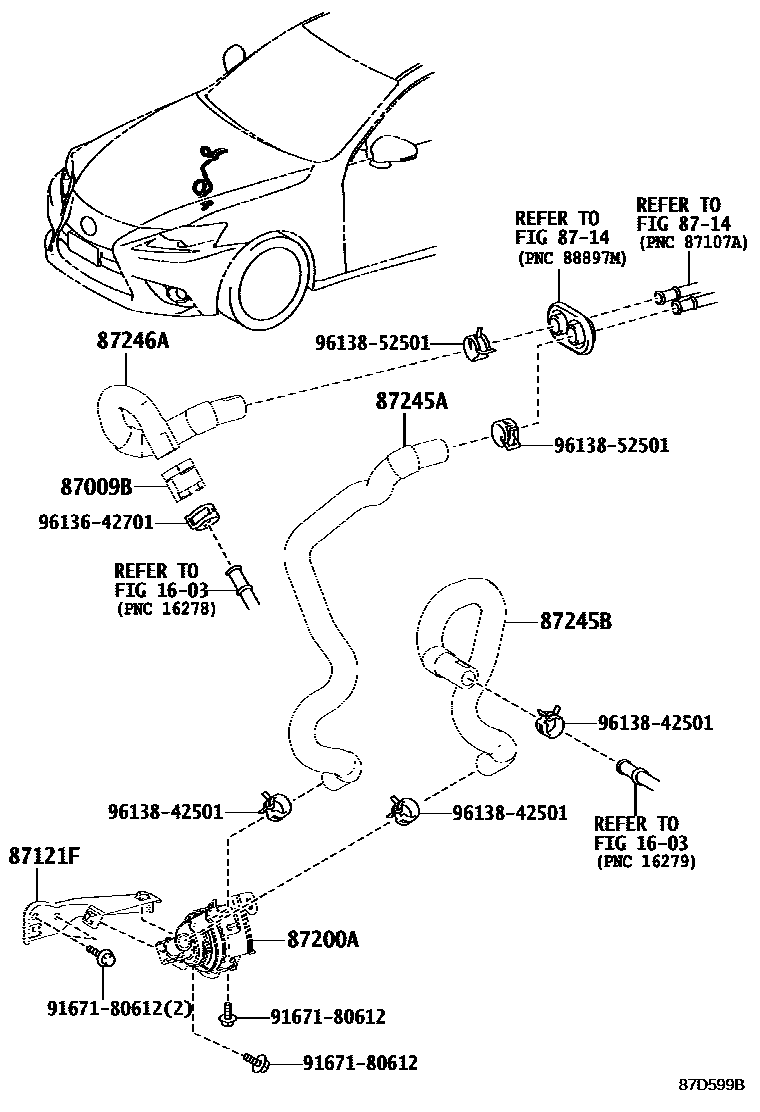

HEATING & AIR CONDITIONING - WATER PIPING
1603
87009BHOSE SET, WATER
8714
87200APUMP ASSY, WATER(FOR HEATER)
87245AHOSE, HEATER WATER, INLET A
AZERBAIJAN OR ARMENIA OR GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)
W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC
RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT
87245BHOSE, HEATER WATER, INLET B
87246AHOSE, HEATER WATER, OUTLET A
AZERBAIJAN OR ARMENIA OR GEORGIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)
W.V.T.A. CORRESPONDENCE-WITHOUT&SERBIA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ONBOARD DIAGNOSIS)
W.V.T.A. CORRESPONDENCE-WITHOUT&BOSNIA HERCEGOVINA SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
W.V.T.A. CORRESPONDENCE-WITHOUT&UKRAINE SPEC&EXHAUST EMISSION CONTROL-EURO5,WITH(ON BOARD DIAGNOSIS)
W.V.T.A. CORRESPONDENCE-WITHOUT&KAZAKHSTAN SPEC
RUSSIA SPEC&W.V.T.A. CORRESPONDENCE-WITHOUT
9167180612
9613642701
9613842501
9613852501
12 parts on this diagram · 3 diagrams in section
