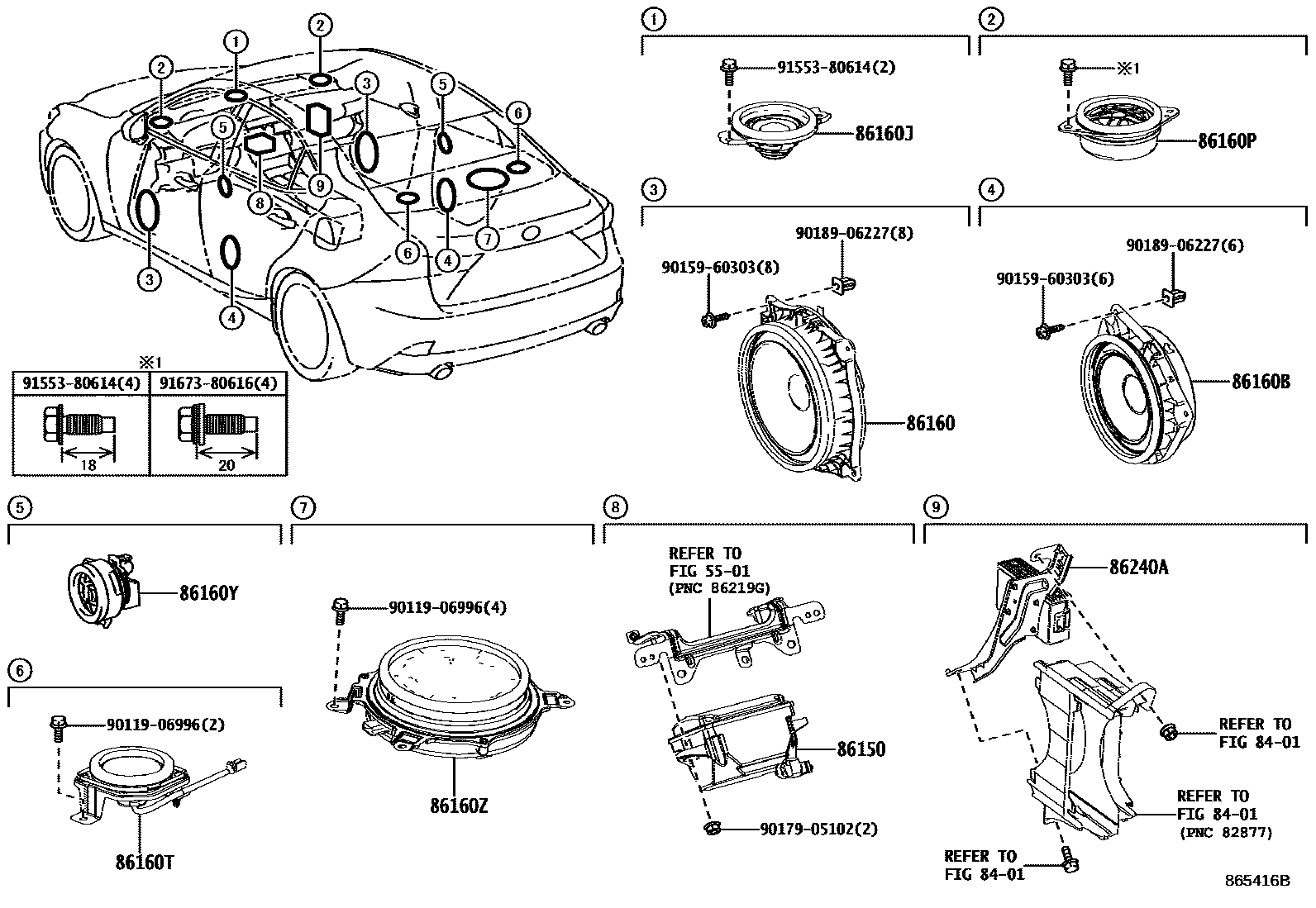

SPEAKER

5501

8401

86150SPEAKER ASSY, W/BOX, NO.1

main86150-53020

86160SPEAKER ASSY, FRONT NO.1

main86160-53370i201304-201610

main86160-0WX70i201304-201508

AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER

86160BSPEAKER ASSY, REAR

main86160-33820i201304-201610

main86160-0WW30i201610

AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER

86160JSPEAKER ASSY, FRONT NO.3

main86160-33790i201805-202009

AUDIO-*DA & AM/FM & DVD & 6SPEAKER

main86160-0WV80i201508-201610

AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER

86160PSPEAKER ASSY, FRONT NO.2

main86160-33800i201304-201610

AUDIO-WITHOUT

main86160-48380i201805-202009

AUDIO-WITHOUT

main86150-53050i201909-202009

AUDIO-EMV & AM/FM & DVD & 10SPEAKER&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH) & WITH(NAVIGATION)

sub86160-33A40

main86160-0WV80i201909-202009

AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER&EMV & NAVIGATION SYSTEM-EMV(10.3 INCH)& WITH(NAVIGATION)

86160TSPEAKER ASSY, REAR HEADER

main86150-0W210i201304-201508

AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER

86160YSPEAKER ASSY, REAR NO.2

main86160-0WX20i201304-201508

AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER

86160ZSPEAKER ASSY, REAR NO.3

main86160-33810i201805-202009

AUDIO-*DA & AM/FM & DVD & 6SPEAKER

main86160-0WX30i201304-201508

AUDIO-EMV & AM/FM & DVD & *MAR & 15SPEAKER

86240AEQUALIZER ASSY,STEREO COMPONENT

9011906996

main90119-06996

9015960303

main90159-60303

9017905102

main90179-05102

9018906227

main90189-06227

9155380614

main91553-80614

9167380616

main91673-80616

17 parts on this diagram · 2 diagrams in section
