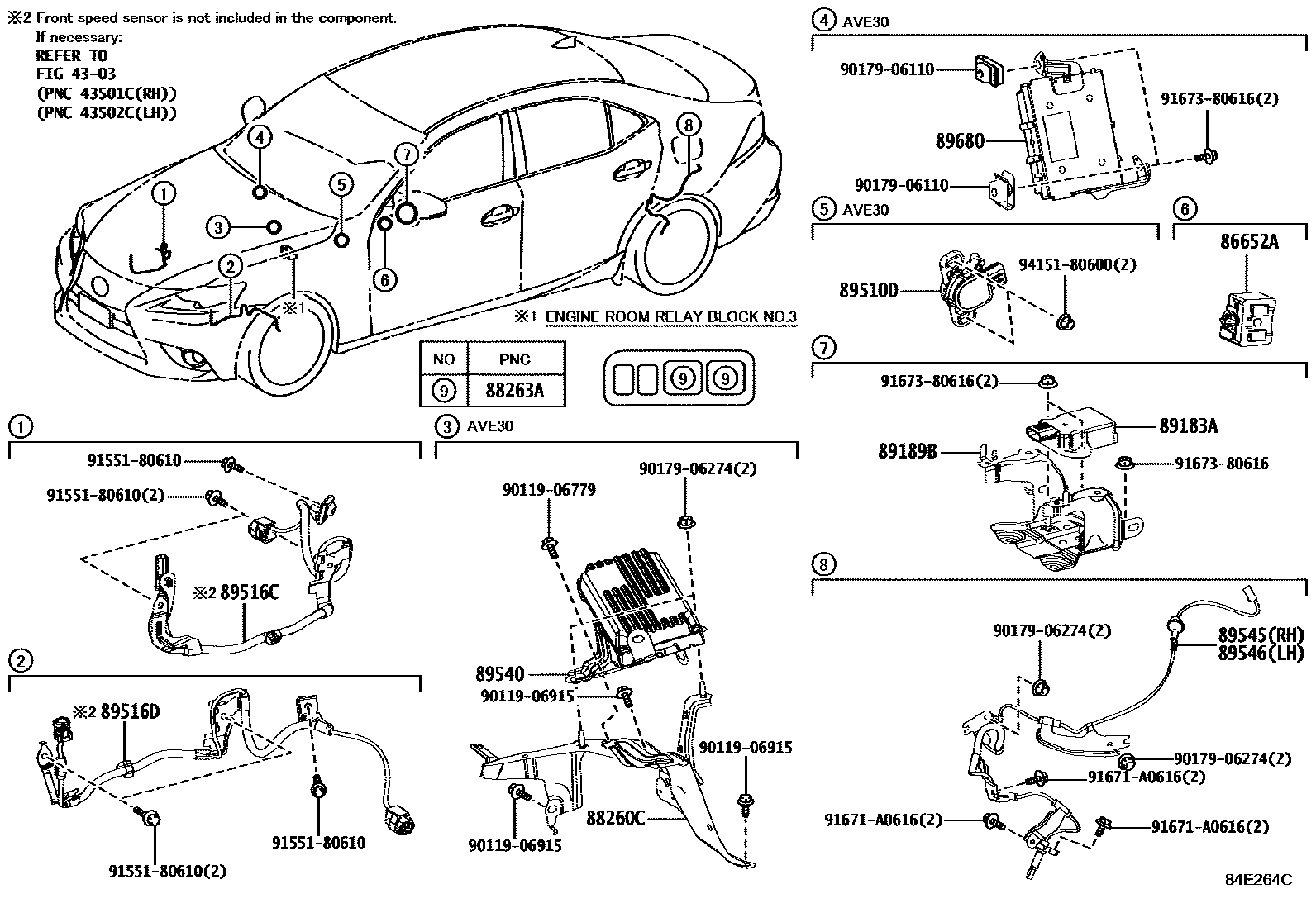

ABS & VSC

0001 1 0002 1

86652ABUZZER ASSY, SKID CONTROL

88260CBRACKET ASSY, SKID CONTROL COMPUTER

main88260-53010iAVE30..LHD201304-201610

main88260-53020iAVE30..RHD¥2,380201304-201610

88263ARELAY, SKID CONTROL

main88263-21010iAVE30¥2,740201304-201610

89183ASENSOR, YAWRATE

main89183-48020iAVE30,GSE30¥75,300201304-201508

main89183-48020iASE30,AVE30..LHD¥75,300201508-201610

ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR)

main89183-48020iASE30,AVE30..LHD¥75,300201610

ANTI-THEFT SYSTEM-WITH(SIREN & INVASION SENSOR)

main89183-50030iASE30,AVE30..LHD¥99,500201508-201610

ANTI-THEFT SYSTEM-WITH(SIREN&INVASION SENSOR&TILT SENSOR)

89189BBRACKET, YAWRATE SENSOR

main89189-53010iASE30,AVE30¥1,480201304-201610

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-33020iAVE30..RHD¥7,900201304-201610

main89510-33030iAVE30..LHD¥7,900201304-201610

89516CWIRE, SKID CONTROL SENSOR, RH

main89516-30180iAVE30,GSE30¥3,540201304-201804

89516DWIRE, SKID CONTROL SENSOR, LH

main89516-30030iASE30,AVE30¥3,540201304-201804

89540COMPUTER ASSY, SKID CONTROL

main895B0-53080iAVE30..LHD201304-201508

main895B0-53120iAVE30..RHD201304-201508

main895B0-53180iAVE30..LHD201508-201610

main895B0-53210iAVE30..RHD201508-201610

main895B0-53250iAVE30..LHD201610

main895B0-53280iAVE30..RHD201610

89545SENSOR, SPEED, REAR RH

main89545-30080iASE30..RHD¥18,200201304-201804

89546SENSOR, SPEED, REAR LH

main89546-30080iAVE30;ASE30..LHD¥18,200201304-201804

89680SUPPLY ASSY, BRAKE CONTROL POWER

main896C0-53010iAVE30..LHD201304-201610

main896C0-53020iAVE30..RHD¥34,300201304-201610

9011906779

main90119-06779¥60

9011906915

main90119-06915¥60

9017906110

main90179-06110¥90

9017906274

main90179-06274¥70

9155180610

main91551-80610¥60

91671A0616

main91671-A0616¥60

9167380616

main91673-80616¥60

9415180600

main94151-80600¥60

20 parts on this diagram · 2 diagrams in section
