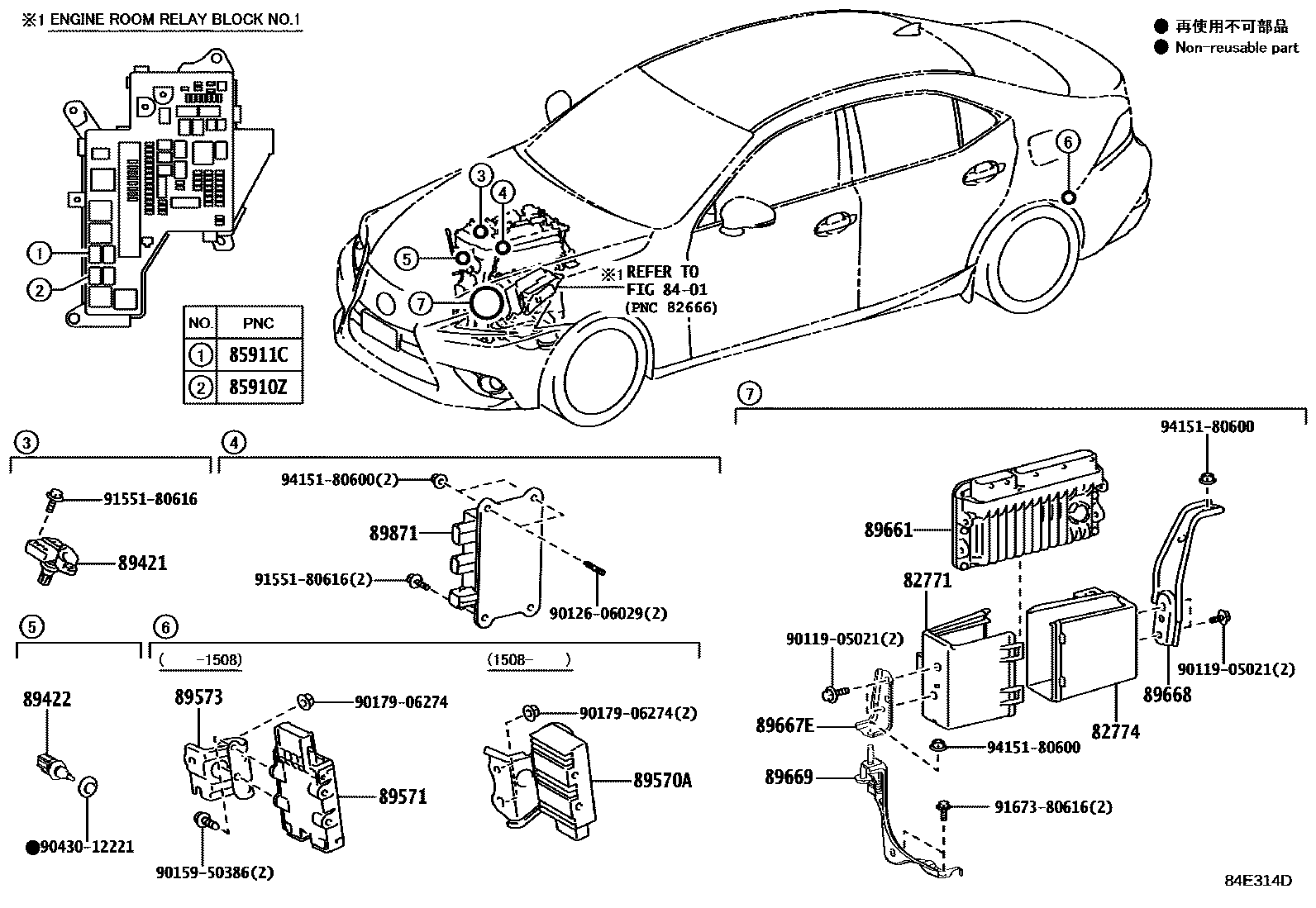

ELECTRONIC FUEL INJECTION SYSTEM

0001 1 0002 1 0003 1 0004 1

82771BOX, ENGINE ROOM ECU

main82771-30060iGSE30201304-201508

main82771-30070iAVE30201304-201610

main82771-30080iASE30201508-201610

82774COVER, ENGINE ROOM ECU

main82774-30060iGSE30201304-201508

main82774-30080iAVE30201304-201610

main82774-30090iASE30201508-201610

8401

85910ZRELAY, INJECTION (FOR EFI)

main90987-02027iAVE30,GSE30201304-201804

85911CRELAY, EFI 2

main90987-02027iAVE30,GSE30201304-201804

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iAVE30201304-201610

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iASE30,AVE30201304-202009

89570ACOMPUTER ASSY, FUEL PUMP CONTROL

main89570-53030iAVE30201508-201610

89571COMPUTER, FUEL PUMP CONTROL

main89571-34070iAVE30,GSE30201304-201508

main89571-58010iASE30201508-201804

89573BRACKET, FUEL PUMP CONTROL COMPUTER

main89573-30090iAVE30,GSE30201304-201508

main89573-53030iASE30..LHD201508-201804

89661COMPUTER, ENGINE CONTROL

main89661-24F10iAVE30201805

DENSO

main89661-53P10iGSE30201304-201508

main89661-53P70iAVE30201304-201502

main89661-53R70iAVE30201502-201508

main89661-53S30iAVE30201508-201805

main89661-53S80iASE30201508-201610

main89661-53U20iASE30..RHD201610-201804

main89661-53U30iASE30..LHD201610

89667EBRACKET, ENGINE CONTROL COMPUTER, NO.1

main89667-30300iGSE30201304-201508

main89667-30310iAVE30201304-201610

main89667-53040iASE30201508-201610

89668BRACKET, ENGINE CONTROL COMPUTER, NO.2

main89668-30250iAVE30201304-201610

main89668-30280iGSE30201304-201508

main89668-53040iASE30201508-201610

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-53030iAVE30201304-201610

89871DRIVER, INJECTOR

main89871-30050iAVE30201304-201610

main89871-53010iGSE30201304-201508

9011905021

main90119-05021

9012606029

main90126-06029

9015950386

main90159-50386

9017906274

main90179-06274

9043012221

main90430-12221

9155180616

main91551-80616

9167380616

main91673-80616

9415180600

main94151-80600

23 parts on this diagram · 4 diagrams in section
