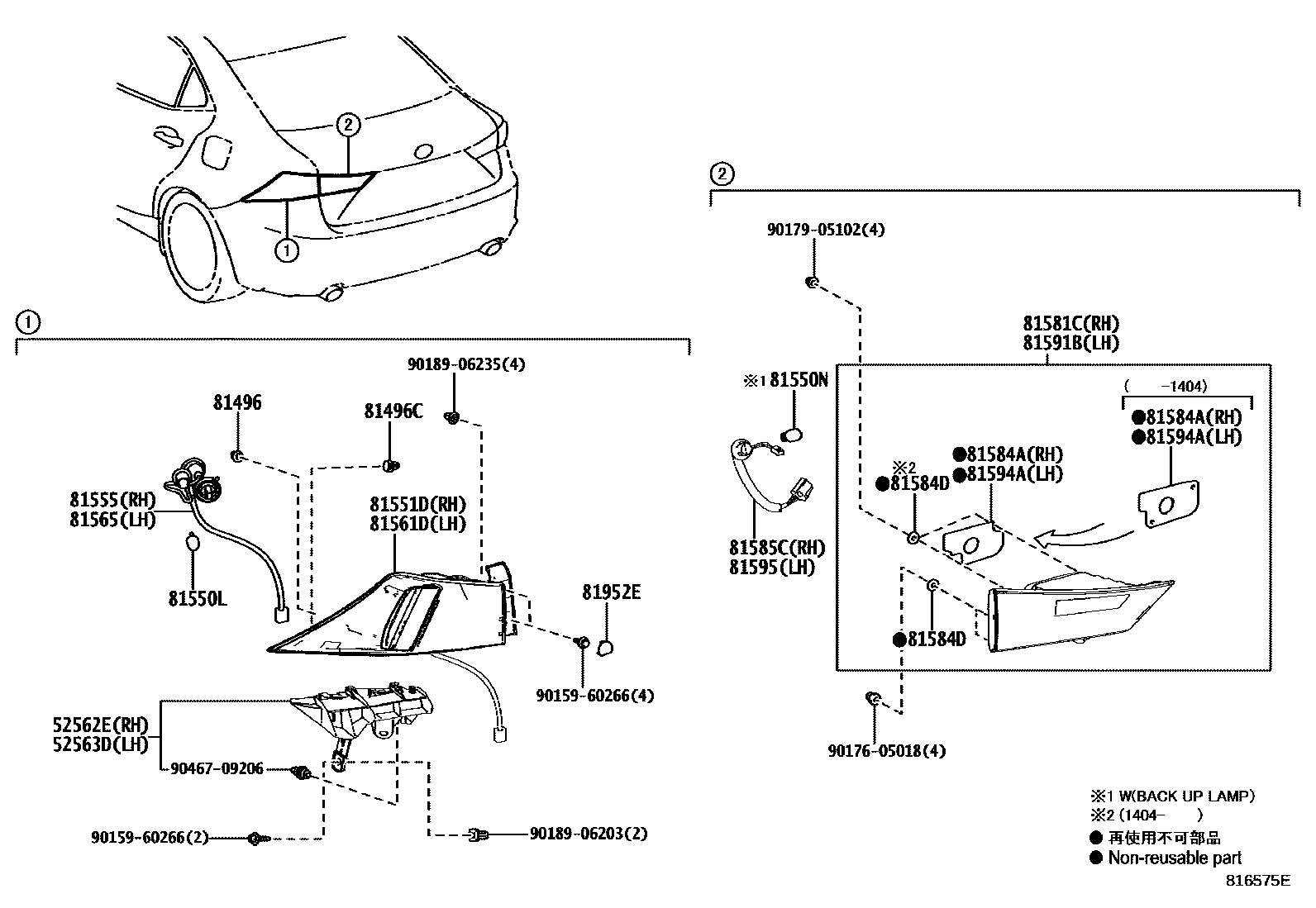

REAR COMBINATION LAMP

0001 1 0002 1

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-53030iAVE30,GSE30201304-201804

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-53030iAVE30,GSE30201304-201804

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iAVE30,GSE30201304-201804

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iAVE30,GSE30201304-201804

81550LBULB, REAR TURN SIGNAL LAMP

main90981-13043iASE30..RHD201710-201804

12V 21W

main90981-15011iAVE30,GSE30201304-201610

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-11059iAVE30,GSE30201304-201610

12V 16W

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-53280iAVE30,GSE30201304-201610

main81551-53310iASE30,AVE30201610-201705

sub81551-53311

main81551-53311iASE30,AVE30201705-201710

main81551-53330iASE30..RHD201710-201804

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-53270iAVE30,GSE30201304-201610

main81555-53300iASE30..RHD201710-201804

main81555-53310iASE30,AVE30201610-201710

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-53280iAVE30,GSE30201304-201610

main81561-53310iASE30,AVE30201610-201705

sub81561-53311

main81561-53311iASE30,AVE30201705-201710

main81561-53330iASE30..RHD201710-201804

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81565-53270iAVE30,GSE30201304-201610

main81565-53300iAVE30;ASE30..LHD201710-201804

main81565-53310iASE30,AVE30201610-201710

81581CLENS AND BODY, REAR LAMP, RH

main81581-53140iAVE30,GSE30..LHD201304-201404

sub81581-53141

main81581-53141iAVE30,GSE30..LHD201404-201610

main81581-53150iAVE30,GSE30..RHD201304-201404

sub81581-53151

main81581-53151iAVE30,GSE30..RHD201404-201610

81584AGASKET, REAR LAMP RH

main81584-53140iAVE30,GSE30201304-201404

main81584-53141iAVE30,GSE30201404-201610

main81584-53160iASE30,AVE30201610

81584DGASKET, REAR LAMP

main81584-22040iASE30,AVE30201304-201610

81585CSOCKET & WIRE, REAR LAMP, RH

main81585-53140iAVE30,GSE30..LHD201304-201610

main81585-53150iAVE30,GSE30..RHD201304-201610

main81585-53160iASE30,AVE30..LHD201610

main81585-53170iASE30,AVE30..RHD201610

81591BLENS AND BODY, REAR LAMP, LH

main81591-53140iAVE30,GSE30..RHD201304-201404

sub81591-53141

main81591-53141iAVE30,GSE30..RHD201404-201610

main81591-53150iAVE30,GSE30..LHD201304-201404

sub81591-53151

main81591-53151iAVE30,GSE30..LHD201404-201610

81594AGASKET, REAR LAMP LH

main81594-53140iAVE30,GSE30201304-201404

main81594-53141iASE30,AVE30201404-201610

main81594-53160iASE30,AVE30201610

81595SOCKET & WIRE, REAR LAMP, LH

main81585-53140iASE30,AVE30..RHD201304-201610

main81585-53150iAVE30,GSE30..LHD201304-201610

main81585-53160iASE30,AVE30..RHD201610

main81585-53170iASE30,AVE30..LHD201610

81952ECOVER, REAR LAMP

main81952-22010iAVE30,GSE30201304-201610

9015960266

main90159-60266

9017605018

main90176-05018

9017905102

main90179-05102

9018906203

main90189-06203

9018906235

main90189-06235

9046709206

main90467-09206

24 parts on this diagram · 2 diagrams in section
