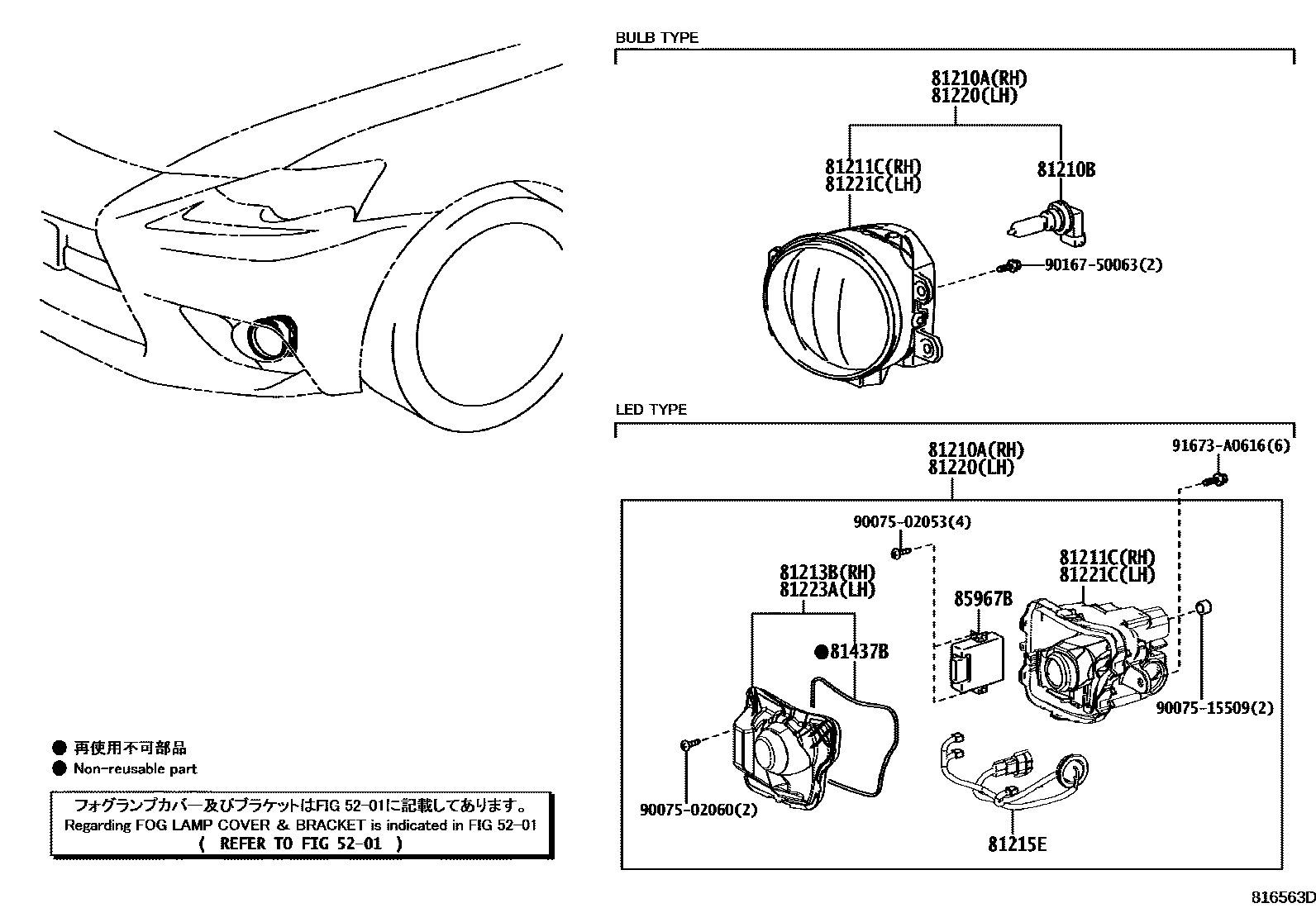

FOG LAMP

0001 1 0002 1F SPORT OR THE CRAFTED LINE 0003 1

5201

81210ALAMP ASSY, FOG, RH

main81210-48050iAVE30,GSE30201407-201508

FRONT FOG LAMP-WIHT(LED)

sub81210-48051

main81210-48051iASE30,AVE30201609-201610

FRONT FOG LAMP-WIHT(LED)

81210BBULB, FOG LAMP

main90981-13090iAVE30,GSE30201304-201407

12V 19W,FRONT FOG LAMP-WITH

81211CLAMP UNIT, FOG LAMP, RH

main81211-12230iAVE30,GSE30201304-201407

FRONT FOG LAMP-WITH

main81211-53330iAVE30,GSE30..LUX201304-201508

FRONT FOG LAMP-WITH(*384 & LED)

81213BLENS, FOG LAMP, RH

main81213-53330iAVE30,GSE30..LUX201304-201508

FRONT FOG LAMP-WITH(*384 & LED)

81215ECORD, FOG LAMP

main81215-53330iAVE30,GSE30..LUX201304-201508

FRONT FOG LAMP-WITH(*384 & LED)

81220LAMP ASSY, FOG, LH

main81220-48050iAVE30,GSE30201407-201508

FRONT FOG LAMP-WIHT(LED)

sub81220-48051

main81220-48051iASE30,AVE30201609-201610

FRONT FOG LAMP-WIHT(LED)

81221CLAMP UNIT, FOG LAMP, LH

main81221-12230iAVE30,GSE30201304-201407

FRONT FOG LAMP-WITH

main81221-53310iAVE30,GSE30..LUX201304-201508

FRONT FOG LAMP-WITH(*384 & LED)

81223ALENS, FOG LAMP, LH

main81223-53310iAVE30,GSE30..LUX201304-201508

FRONT FOG LAMP-WITH(*384 & LED)

81437BGASKET, FOG LAMP

main81437-12010iAVE30,GSE30..LUX201304-201508

FRONT FOG LAMP-WITH(*384 & LED)

85967BCOMPUTER, LIGHT CONTROL LED

main85967-50110iAVE30,GSE30..LUX201304-201508

FRONT FOG LAMP-WITH(*384 & LED)

9007502053

main90075-02053

9007502060

main90075-02060

9007515509

main90075-15509

9016750063

main90167-50063

91673A0616

main91673-A0616

16 parts on this diagram · 3 diagrams in section
