ACCELERATOR LINK

78010FPEDAL ASSY, ACCELERATOR

main78101-53050i201304-201506

main78101-53051i201507-201610

main78101-53040i201304-201506

F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)

main78101-53041i201507-201508

F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)

78110KROD ASSY, ACCELERATOR PEDAL(W/SENSOR)

main78110-30140i201304-201306

main78110-30141i201307-201601

main78110-30150i201304-201306

main78110-30151i201307-201601

main78110-30170i201602-201610

main78110-30210i201602-201804

78111EPAD, ACCELERATOR PEDAL

main78117-30030i201304-201804

78119STOPPER, ACCELERATOR PEDAL ROD

main78119-48010i201304-201508

F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)

78125ABRACKET, ACCELERATOR PEDAL ROD, NO.2

main78125-30081i201304-201610

78140ABRACKET, ACCELERATOR CONTROL ROD

main84579-30060i201304-201508

F SPORT&EXHAUST EMISSION CONTROL-EURO4,WITHOUT(ON BOARD DIAGNOSIS)

9011906120

9011906987

9017906274

91621B0625

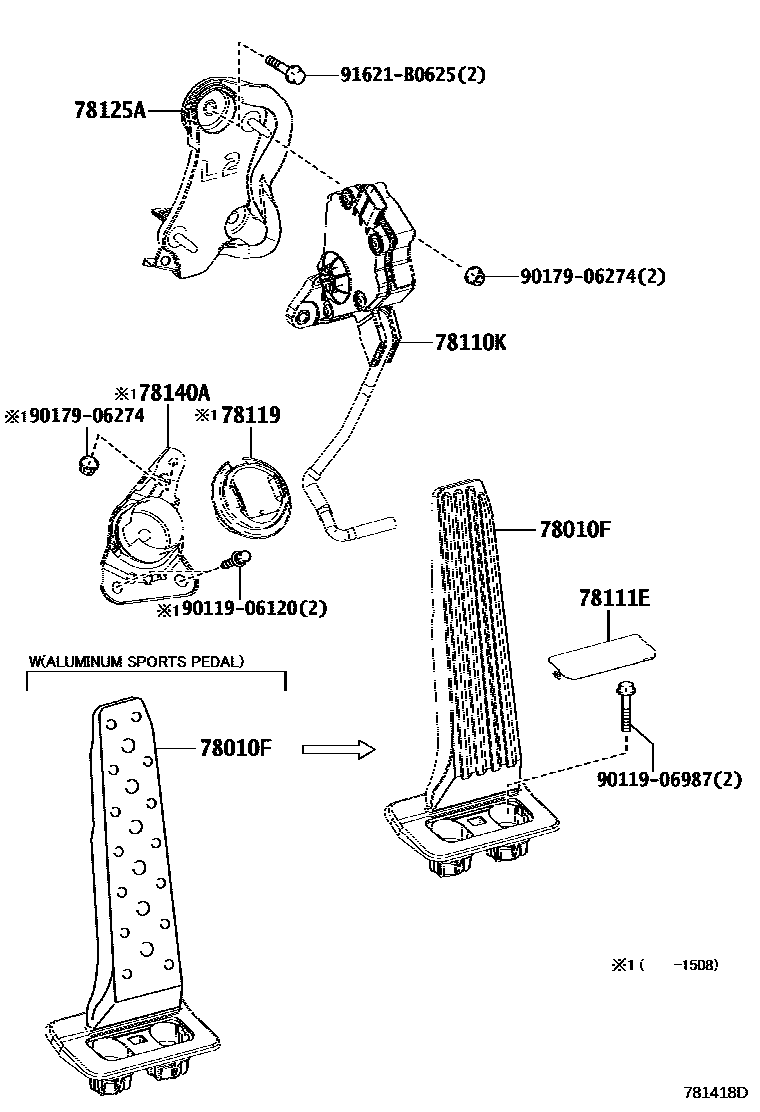

10 parts on this diagram · 2 diagrams in section
