FRONT MOULDING

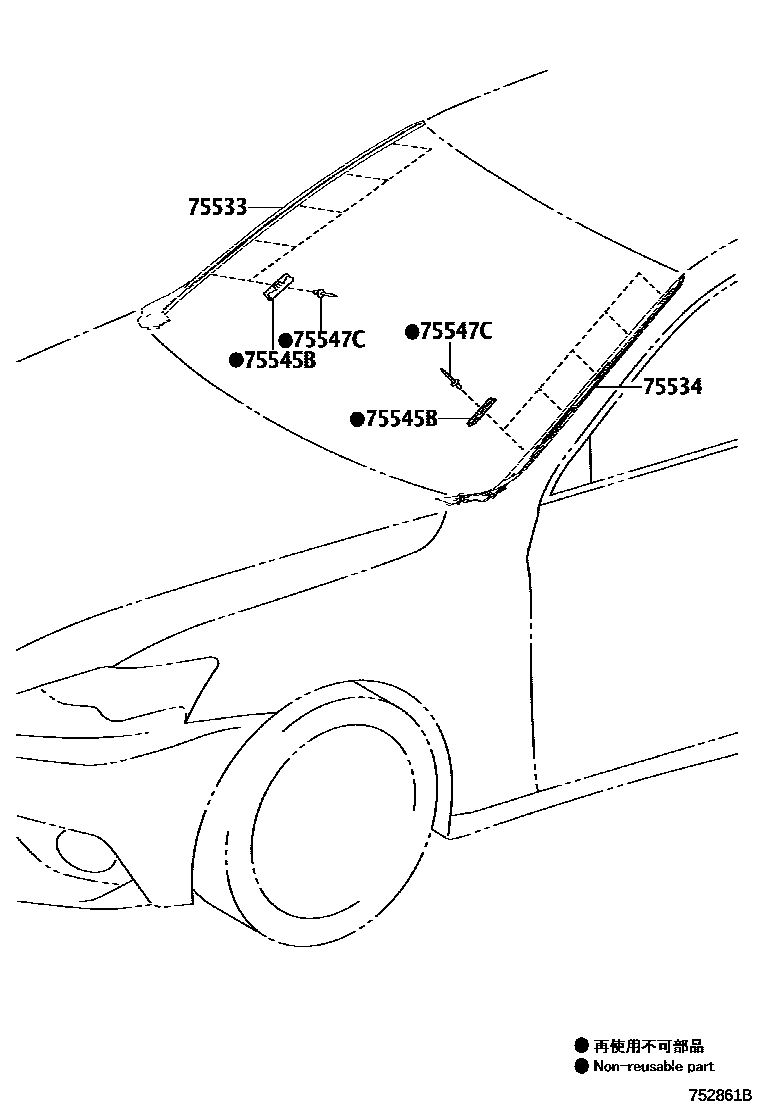

Parts diagram

75533MOULDING, WINDSHIELD, OUTSIDE RH

main75551-53040i¥3,810201304-201402

sub75551-53041¥2,400

main75551-53041i¥2,400201403-201804

75534MOULDING, WINDSHIELD, OUTSIDE LH

main75552-53040i¥3,810201304-201402

sub75552-53041¥2,400

main75552-53041i¥2,400201403-201804

75545BCLIP, WINDSHIELD OUTSIDE MOULDING, NO.1

main75545-30170i¥210201304-201804

75547CCLIP, WINDSHIELD OUTSIDE MOULDING, NO.3

main75547-51021i¥210201304-201804

4 parts on this diagram · 1 diagram in section
