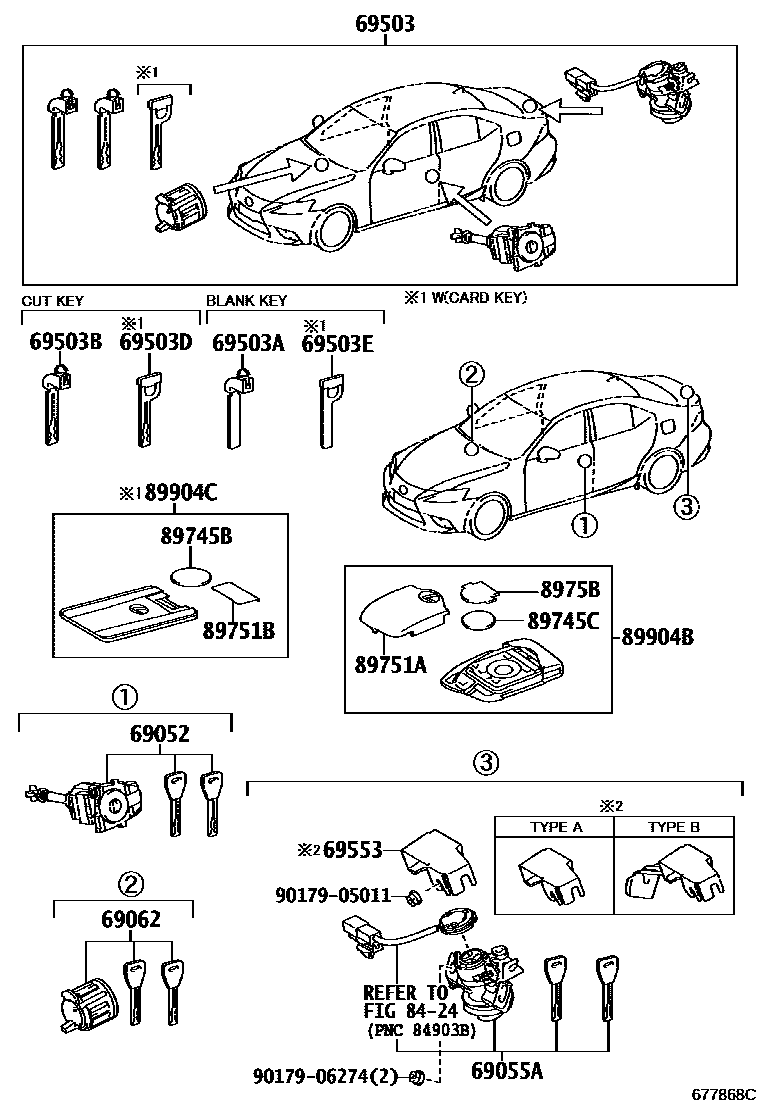

LOCK CYLINDER SET
69052CYLINDER & KEY SET, DOOR LOCK, LH
69055ACYLINDER & KEY SET, LUGGAGE COMPARTMENT LOCK
69062CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503AKEY, BLANK
MASTER KEY,W(*68)
69503BKEY, CUT
MASTER KEY,W(*68)
69503DKEY, CUT(CARD KEY)
69503EKEY, BLANK(CARD KEY)
MASTER KEY
69553PROTECTOR, LUGGAGE COMPARTMENT KEY CYLINDER
CYPRUS SPEC,TYPE A:REFER ILLUST.
TYPE A:REFER ILLUST.
IRELAND SPEC,TYPE A:REFER ILLUST.
FINLAND OR NORWAY OR SWEDEN SPEC,TYPE B:REFER ILLUST.
RUSSIA SPEC,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
ESTONIA OR LATVIA OR LITHUANIA SPEC,TYPE B:REFER ILLUST.
FINLAND,NORWAY,SWEDEN SPEC,TYPE B:REFER ILLUST.
8424
89745BBATTERY, TRANSMITTER(CARD KEY)
89745CBATTERY, TRANSMITTER
CR2032
89751ACOVER, TRANSMITTER HOUSING
89751BCOVER, TRANSMITTER HOUSING
8975BCOVER, TRANSMITTER BATTERY HOUSING
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
9017905011
9017906274
19 parts on this diagram · 2 diagrams in section
