MAT & CARPET
55214CPAD, DASH PANEL INSULATOR, NO.2
58511MAT, FLOOR, FRONT
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#,3#
BLACK,TRIM0#,1#,2#
BLACK,TRIM1#,2#,3#,4#,9#
BLACK,TRIM1#,2#,3#,4#,9#
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#,8#,9#
BLACK,TRIM2#
BLACK,TRIM1#,2#,3#,4#,8#,9#
58521BHOOK, FLOOR CARPET
58560BCLIP(FOR FLOOR CARPET, REAR)
58564HCLIP(FOR REAR FLOOR CARPET)
58571FPAD, FRONT FLOOR, FRONT
AUDIO LESS PACKAGE
58575EPAD, FRONT FLOOR, REAR NO.1
58576CPAD, FRONT FLOOR, REAR NO.2
58621GPAD, FRONT FLOOR SILENCER, RH
58622CPAD, FRONT FLOOR SILENCER, LH
58694BPLATE, MAT SET, UPPER
58698CPLATE, MAT SET, LOWER
6213530020FRAME, REAR SIDE WINDOW

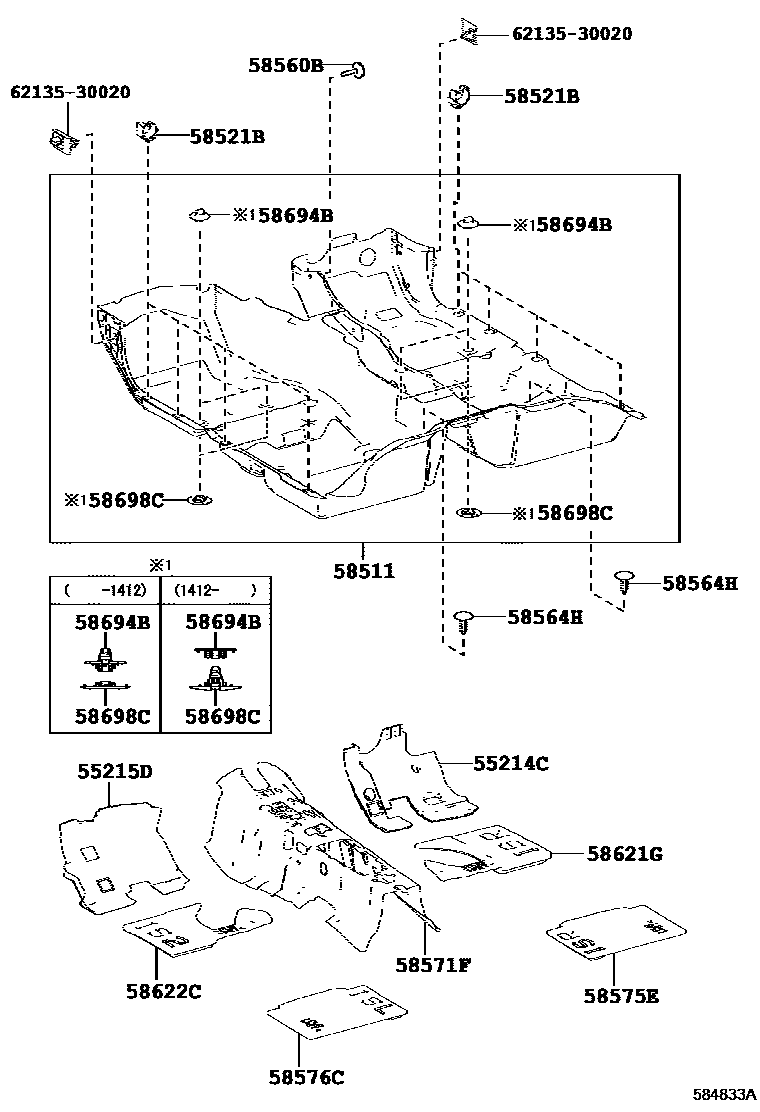

14 parts on this diagram · 2 diagrams in section
